Accessories
4.3 Connection system
3VA molded case circuit breakers with UL and IEC certification
Manual, 01/2019, L1V30435333-01
191
Front busbar and compression lug connections

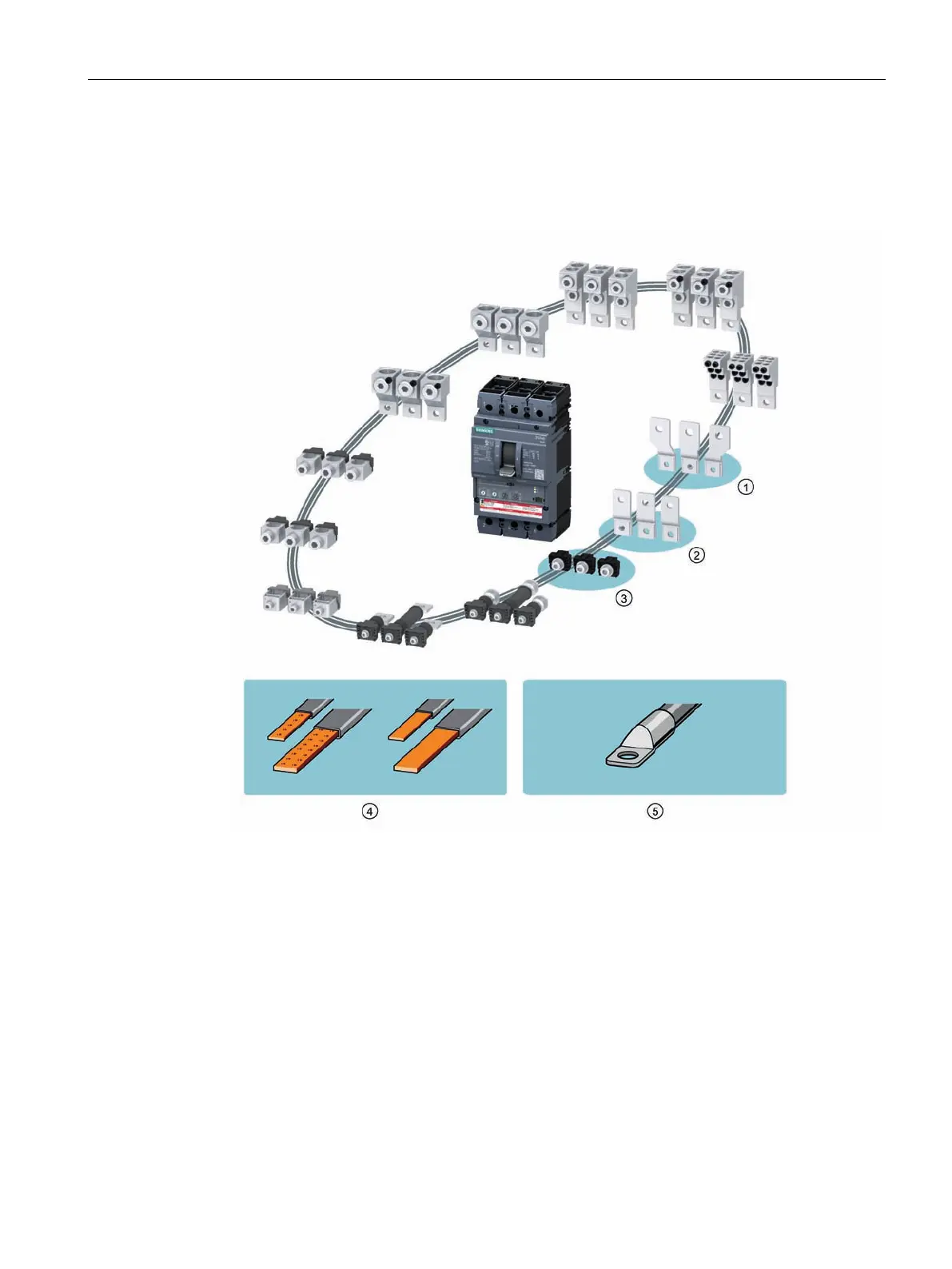

The diagram below illustrates all the components available for implementing a busbar or
compression lug connection on the front panel of the 3VA UL molded case circuit breaker.
Front bus connectors offset
1)
Busbars
Front bus connectors extended
Compression lugs
1)
Only available for 3VA63 and 3VA64
