Siemens Sentron 3VA - Side Wall Mounted Rotary Operator; Elements of the Side Wall Mounted Rotary Operator

Accessories
4.5 Manual operators
3VA molded case circuit breakers with UL and IEC certification
Manual, 01/2019, L1V30435333-01
281
4.5.5
Side wall mounted rotary operator
4.5.5.1

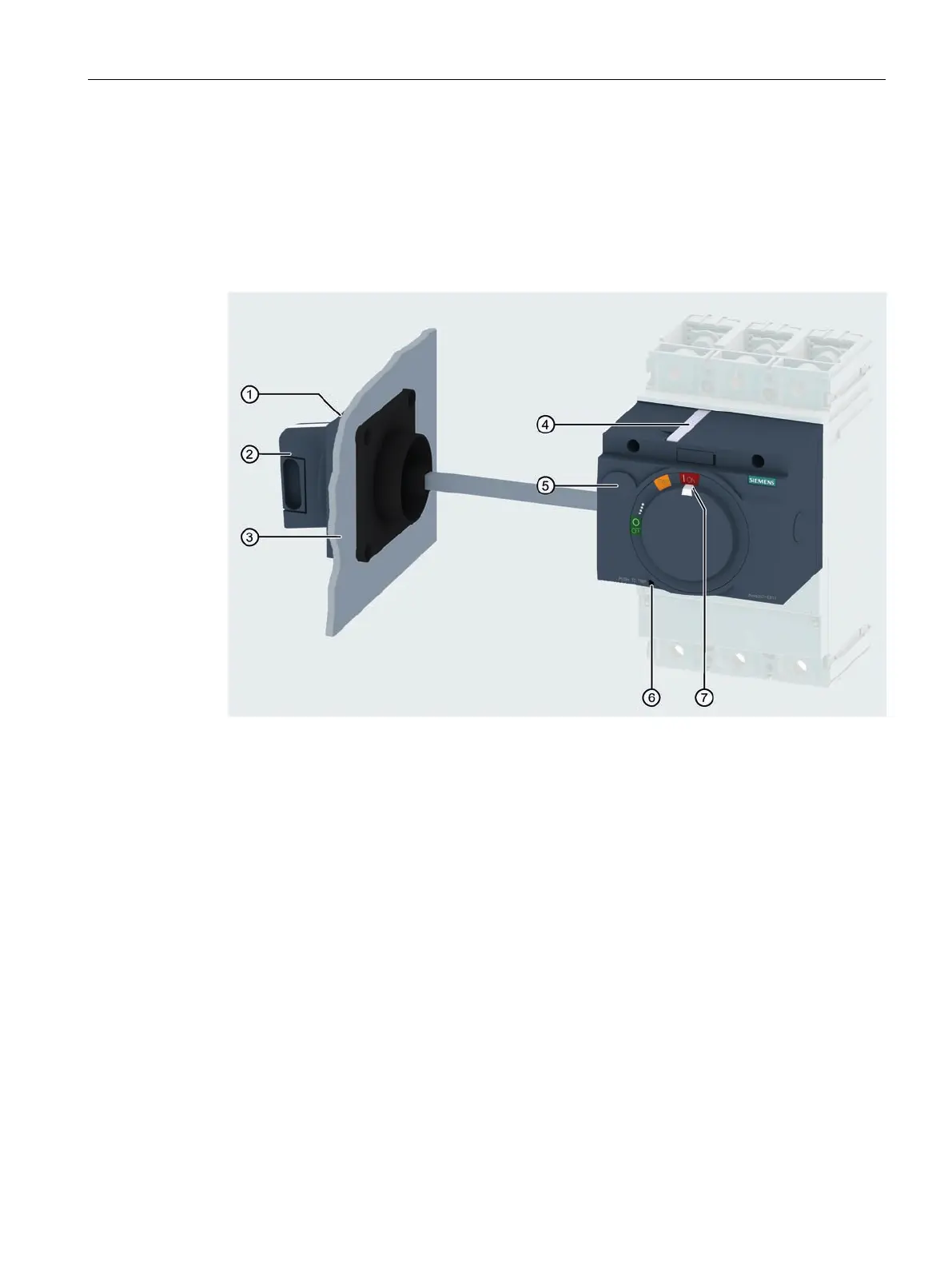

Elements of the side wall mounted rotary operator
The side wall mounted rotary operator allows the molded case circuit breaker to be operated
through the right-hand or left-hand side wall of the panel.
①
Side wall mounted rotary operator
②
Handle with mechanism for up to 3 padlocks
③
Side wall of panel
④
Device for up to 3 padlocks
⑤
Device for cylinder lock
⑥
Trip unit button <PUSH TO TRIP>
⑦
Indication of the breaker status ON, TRIP, mounting position, OFF, RESET
For mounting position, see chapter Front mounted rotary operator (Page 264)
