Accessories
4.7 Locking and interlocking
3VA molded case circuit breakers with UL and IEC certification
308 Manual, 01/2019, L1V30435333-01

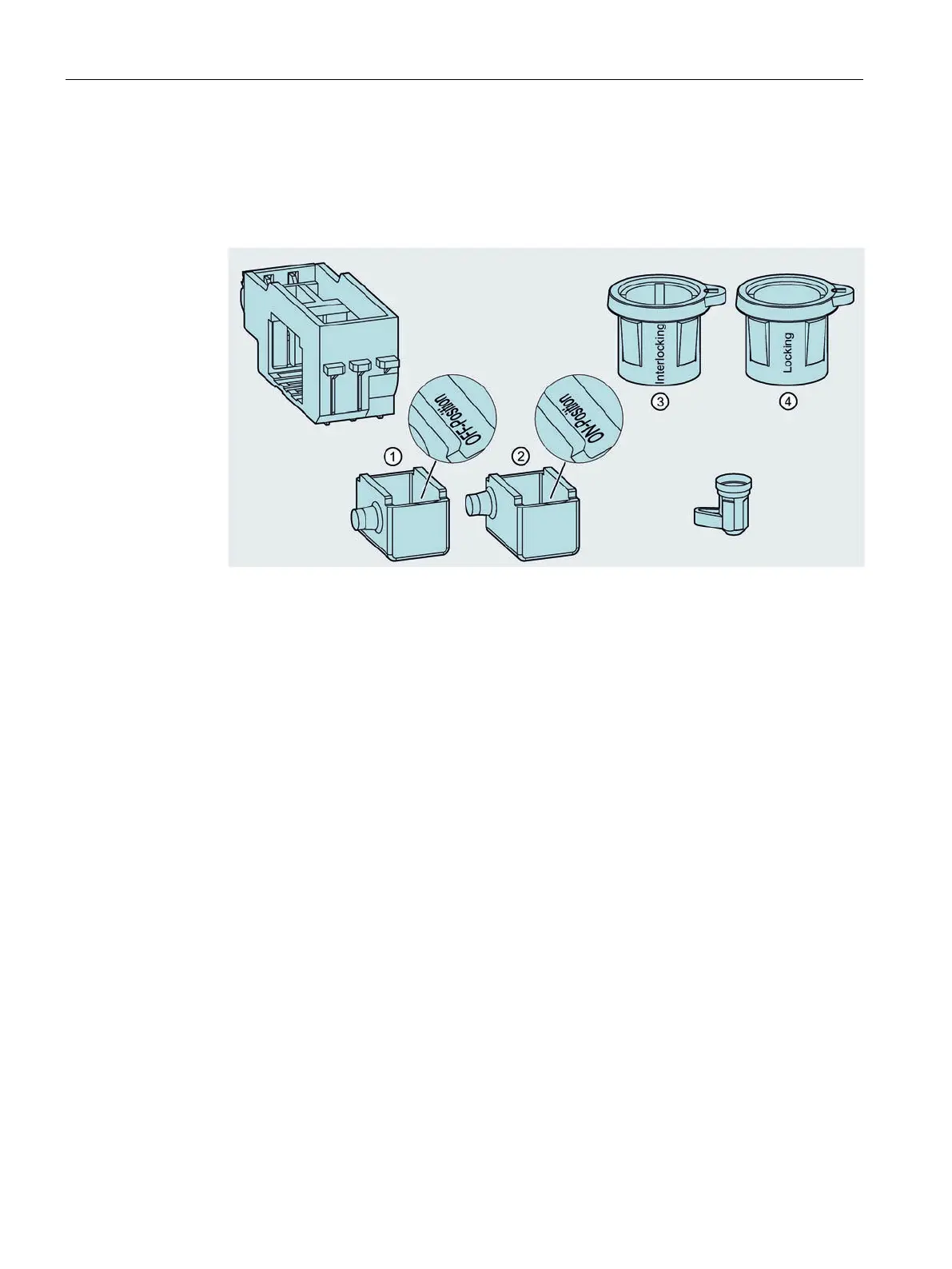

● One adapter kit
The adapter kit transfers the motion of the lock to the switching mechanism.
The article number includes the adapter kit and two cylinder lock housings. One cylinder
lock housing (locking) is used for locking applications and the other housing (interlocking)
for interlocking applications.
Slide for locking in the OFF position
Slide for locking in the ON position
Cylinder lock housing for locking
Cylinder lock housing for interlocking
