Accessories
4.11 Test devices
3VA molded case circuit breakers with UL and IEC certification
Manual, 01/2019, L1V30435333-01
365
Benefits of the TD500 test device
● With a TD500 test device, all 3VA6 molded case circuit breakers can be configured one
after the other directly at the installation via powerconfig
● The device can store up to 100 test results.
● With the TD500 test device and the powerconfig software, all diagnostic data of the 3VA6
molded case circuit breaker can be archived electronically or as a printed document.
● In addition, test functions can be performed directly on the PC with the powerconfig
software.

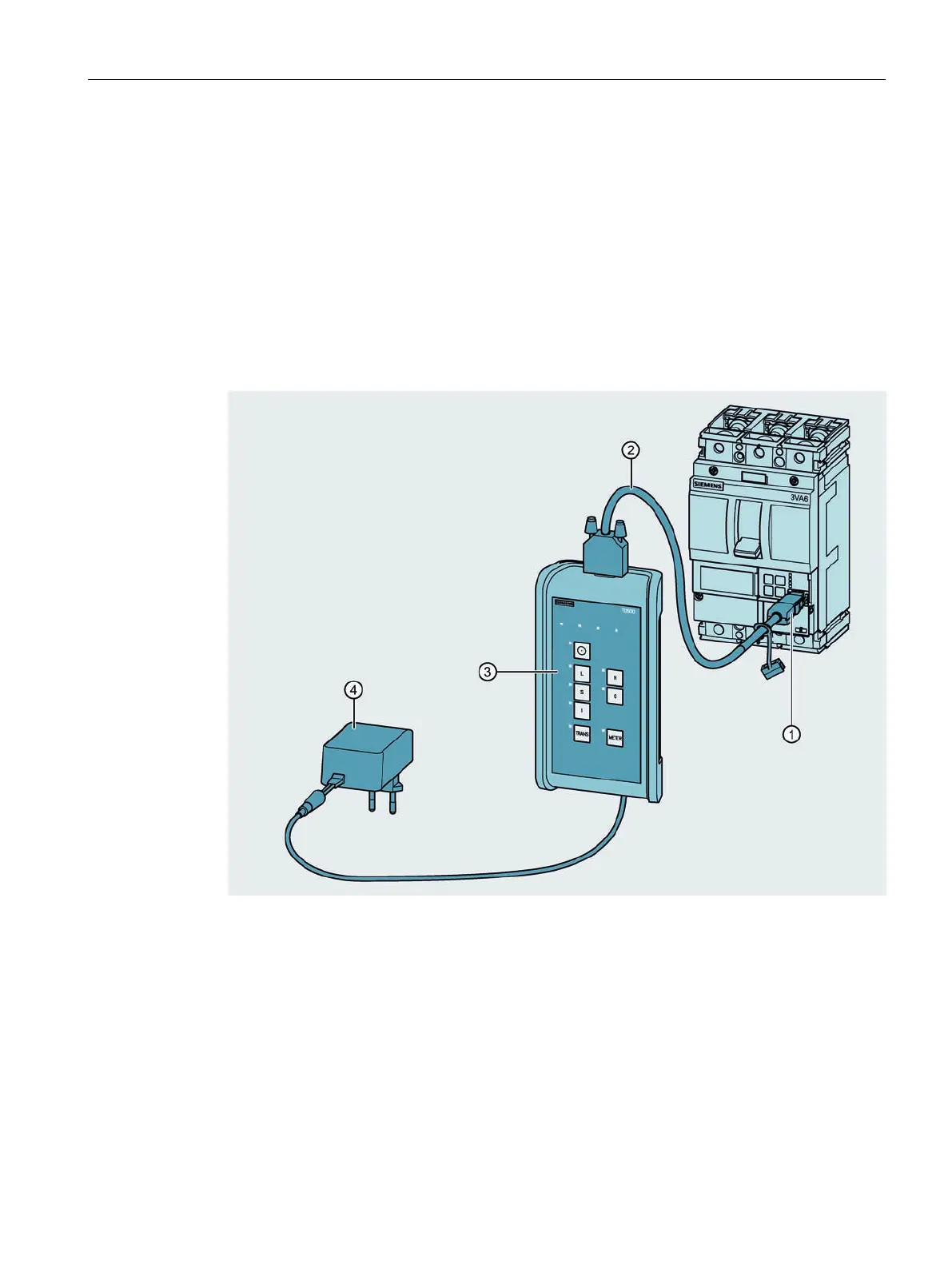

Plug-in connector for insertion in the test socket on the ETU
TD500-to-ETU connecting cable
TD500 test device
Power supply unit
