Description
2.3 Technical details
3VA molded case circuit breakers with UL and IEC certification
Manual, 01/2019, L1V30435333-01
43

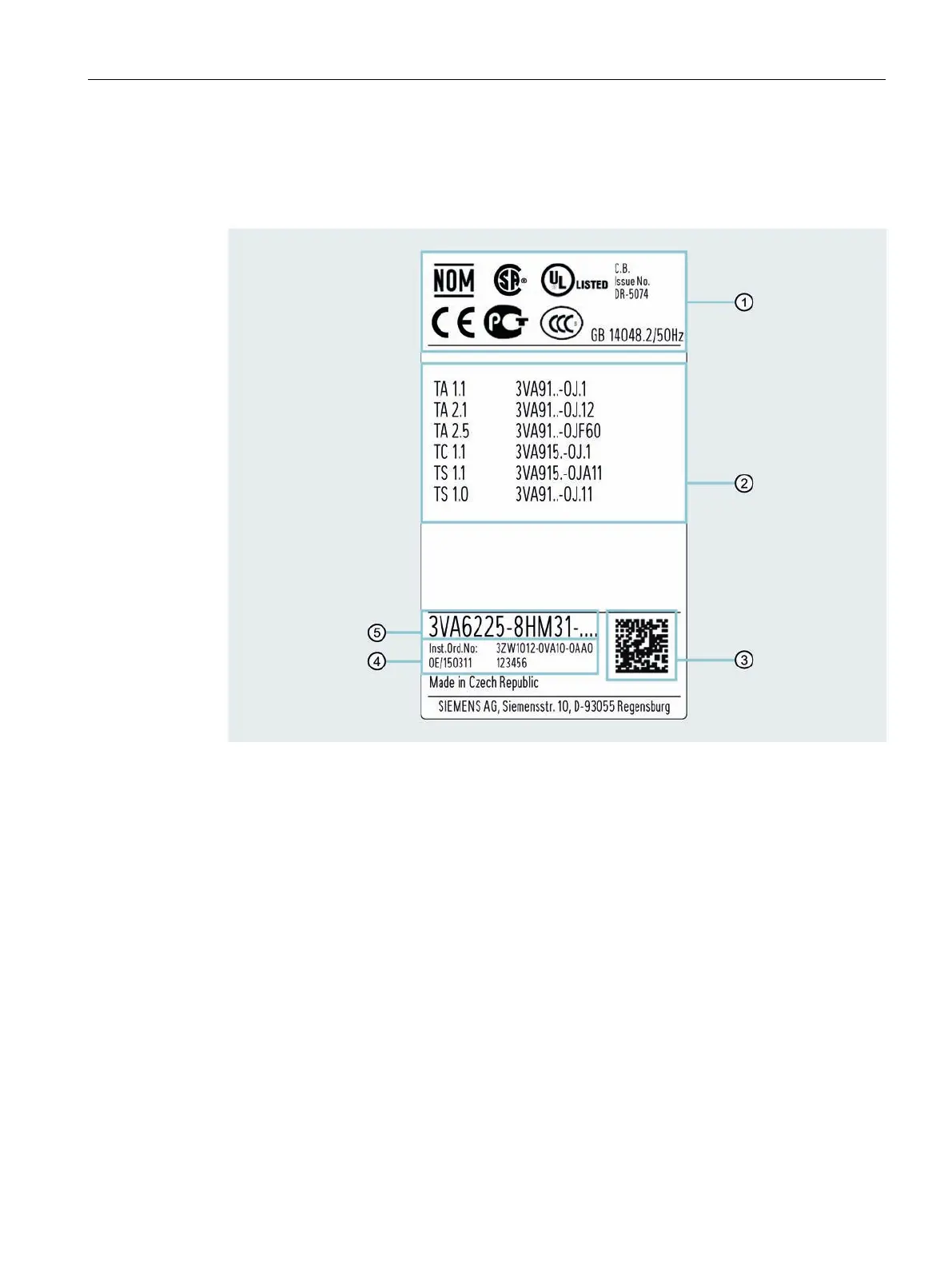

"Connection information" adhesive label
The "Connection information" label is attached on the side and contains the following
information:
UL, CSA and NOM, as well as CE, CCC, etc. approval marks, if valid for this circuit breaker
List of allowed connection technology for this circuit breaker (see below)
2D matrix code of production
Article number for operating instructions
Circuit breaker article number
List of allowed connection technology
The table shows the brief terminal designation, on the left, of all terminals and connections
that may be installed with this circuit breaker. These terminal designations are unique.
On the right, in the table, are the order numbers for these terminals. The order number is
also expressed with dots for wildcards if necessary. This is always the case when several
packages are available in which the same terminals are used. The reason for this is that
some terminals can be ordered individually or in multiple terminal packages.
