Siemens SENTRON 7KT1682

Description
3.3 7KT PAC1600 multimeter
7KT multimeter
Manual, 08/2018, 2514284149-01
15
Measuring input voltages
The device is designed for the following measuring input voltages:
● For measuring input voltages up to 415 V phase-to-neutral
● For measuring input voltages up to 720 V phase-to-phase

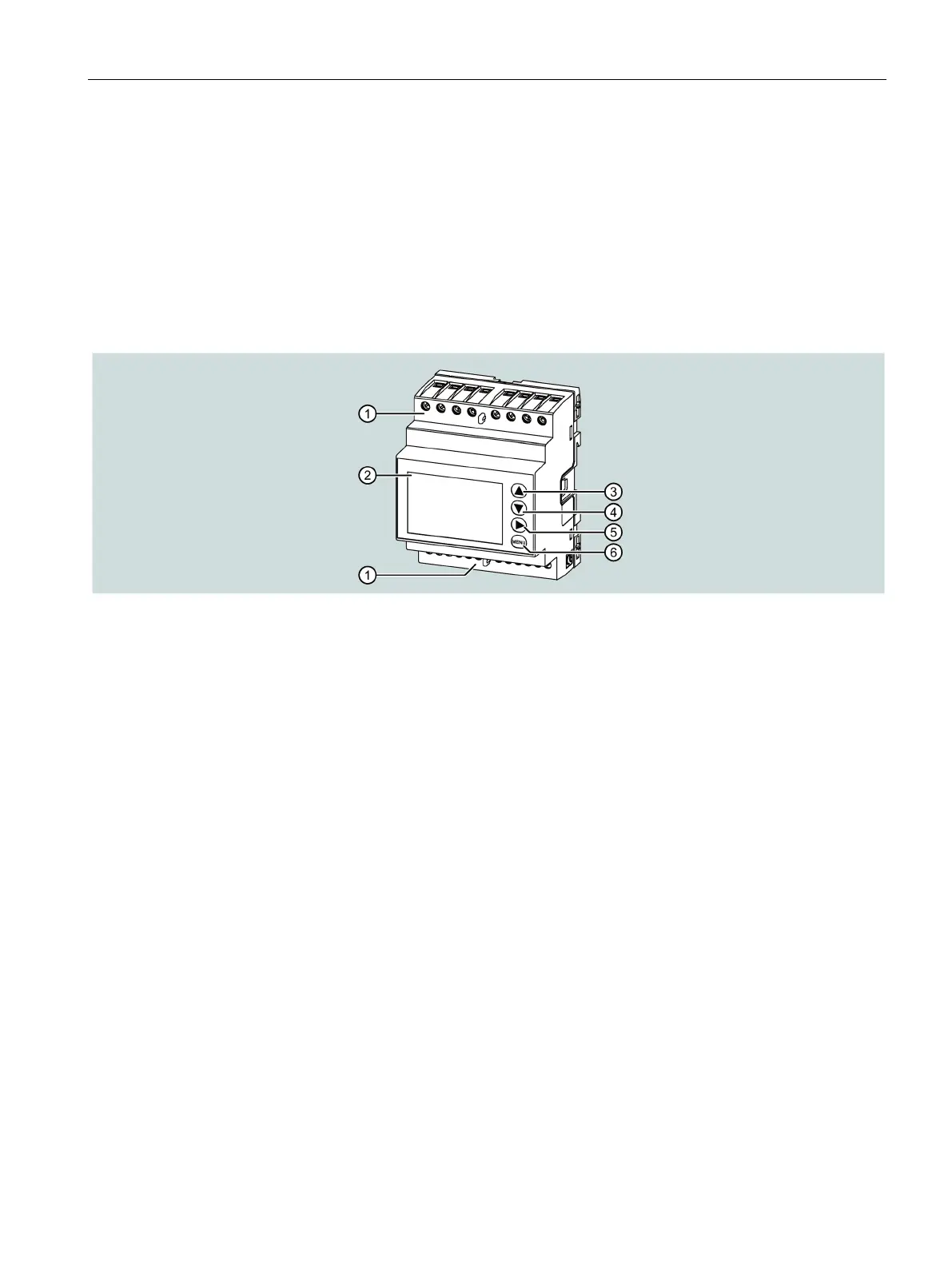

3.3
7KT PAC1600 multimeter
①
Sealing cover
②
Display
③
Arrow key for scrolling, selecting
and changing
④
Arrow key for scrolling, selecting
and changing
You will find information on operation in chapter Keypad functions
(Page 16) ff.
⑤
Arrow key for scrolling, confirming
and switching over
⑥
Menu key
Basic properties
● Three-phase digital multimeter
● 4U modular enclosure (72 mm) for DIN rail
● Backlit LCD
● 2 versions:
– 7KT1681: Standard version
– 7KT1682: With built-in RS 485 interface
● 4 navigation keys for functions and settings
● Extremely accurate measurement of demand (TRMS)
● Wide selection of available measurements, including voltage, current, THD and
harmonics analysis
