3.3 7KT PAC1600 multimeter
7KT multimeter
22 Manual, 08/2018, 2514284149-01
No.
Pages
Subpages
37
Hour counter
hhhhhh-mm-ss
•
TOT
•
PAR-1
•
PAR-2
•
PAR-3
•
PAR-4
38
Limit threshold
LIM1–LIM2–LIM3–LIM4
–
39
Alarms
ALA1–ALA2–ALA3–ALA4
–
40
Tariff selection
(tAr-1 and tAr-2)
–
41 Device information
MODEL, REV SW, SER. No.
–
3.3.4
Harmonic displays
The 7KT1681 and the 7KT1682 provide phase analysis up to the 15th harmonic for the
following measured variables:
● Phase-to-phase voltages
● Phase-to-neutral voltages
● Currents
To activate the harmonic analysis, set parameter P02.12 = THD/HAR.
With P02.12 = THD, the device only shows the THD of the above measurements.

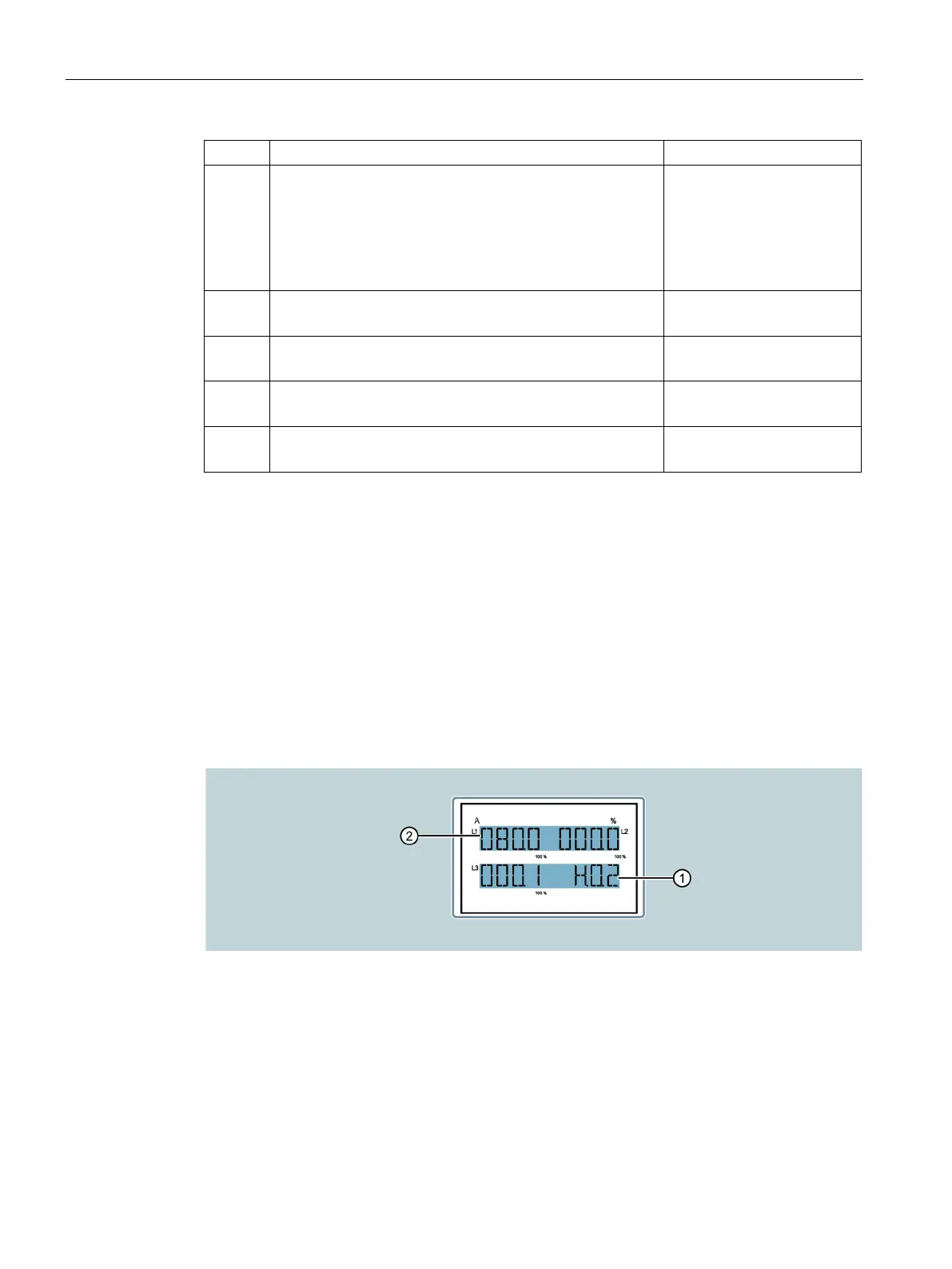

①
Harmonic
②
Harmonic current percentage
