5.1 Connection examples
7KT multimeter
Manual, 08/2018, 2514284149-01
45

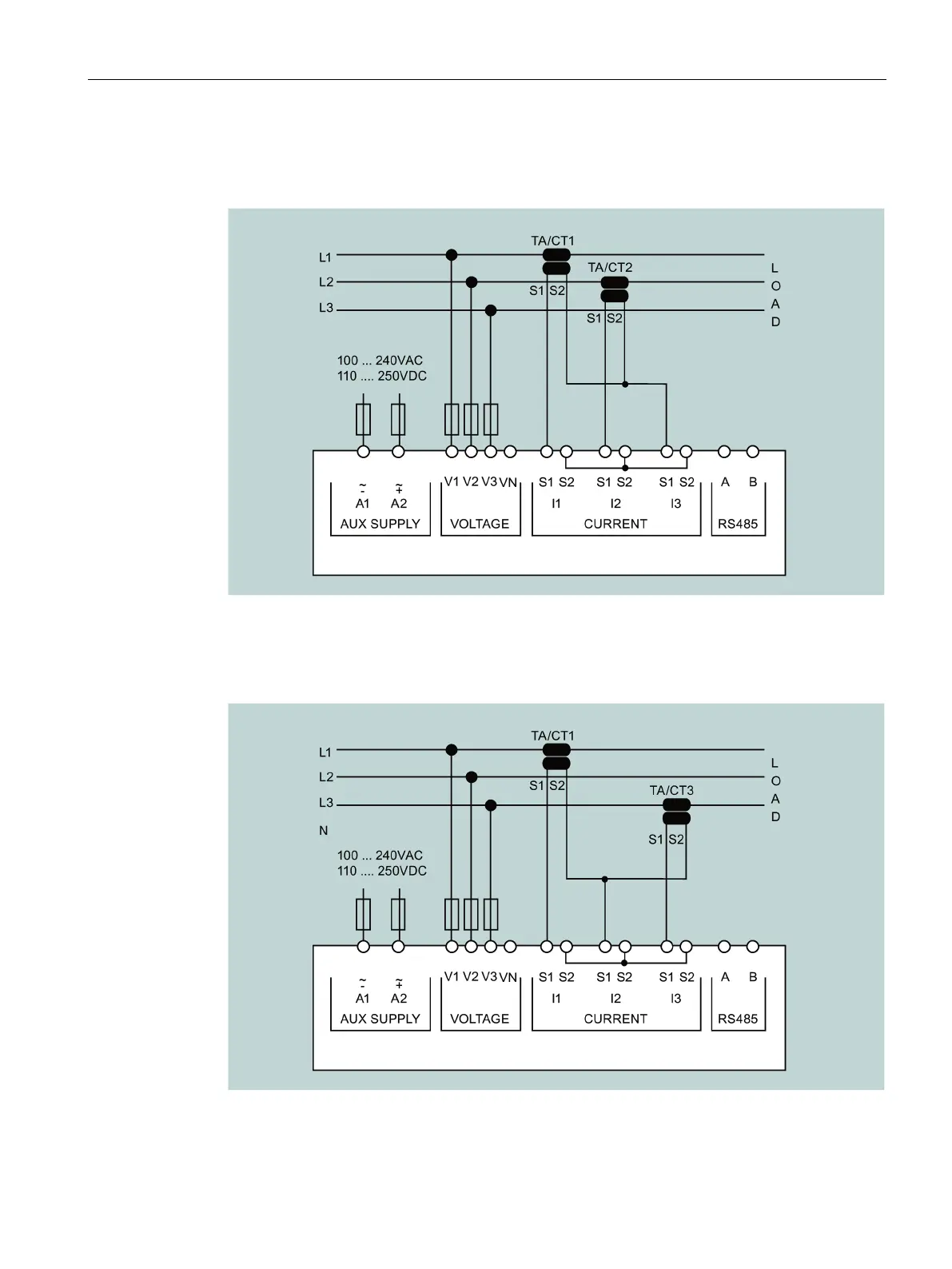

Three-phase connection without neutral conductor (ARON circuit, current transformer in L1 and L2)
P01.07 = L1-L2-L3
Three-phase connection without neutral conductor (ARON circuit, current transformer in L1 and L3)
P01.07 = L1-L2-L3
