Displaying and Entering Values in Screens 04/99
32 Getting Started with C7-621-AS-i
Displaying and Entering Values in Screens
You can start by configuring your first screen.

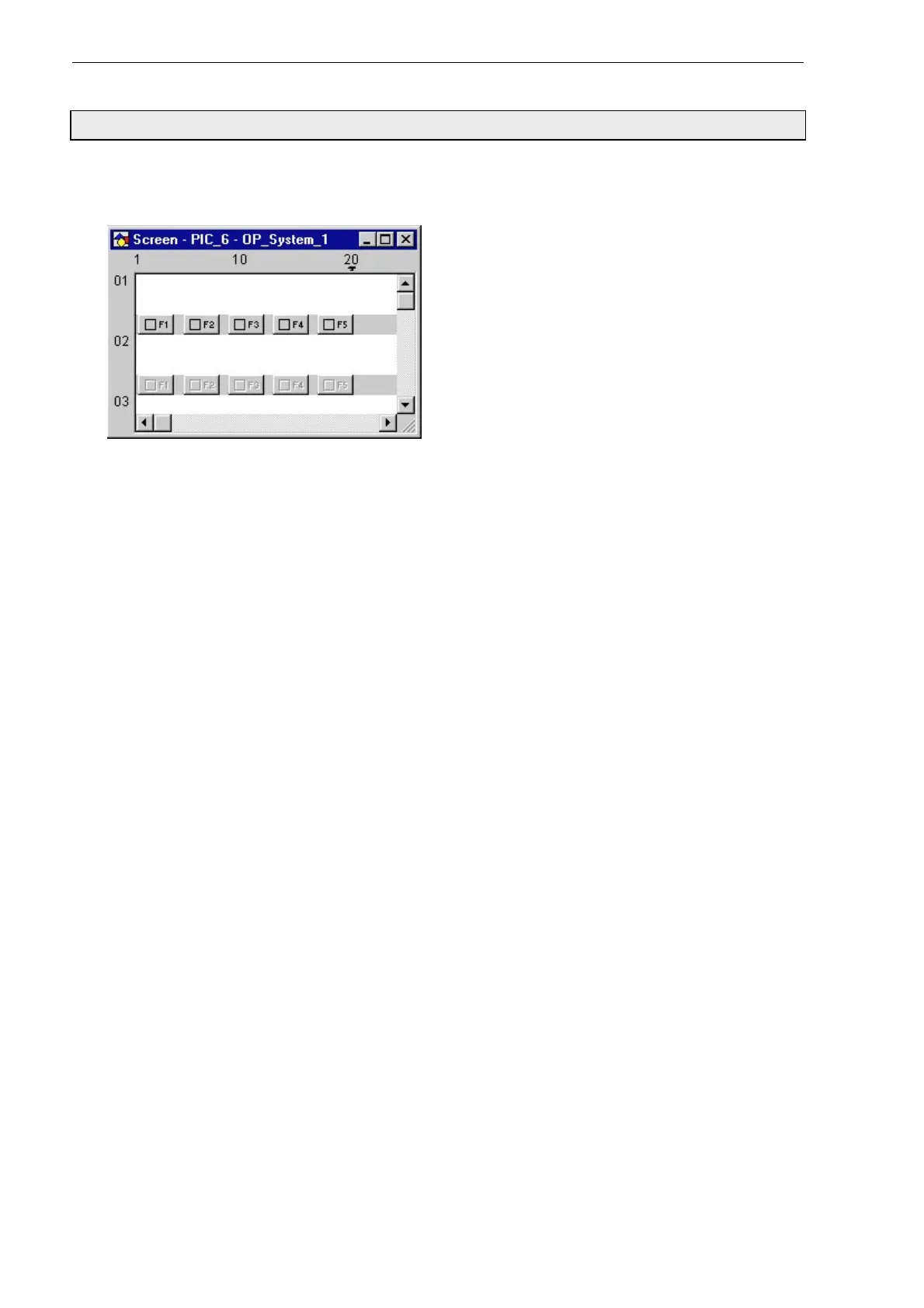

 Open the Screen Editor with the menu item Insert → Screen . This action calls up the Screen-PIC_6.
Configuring texts
The first screen is to be the start screen on the C7. It will display only the system name.
The system name is configured as the text.
 The cursor is located in the first line of the first screen entry (see above). Enter the system name
there:
System_1
.
SIMATIC C7 startup always ends automatically with a display of the configured start screen. The screen
you have just configured (display of the text: System_1) is now to be displayed after the next loading of
the configuration. You must therefore mark this screen as the start screen.
 Selectthemenuitem Edit → Properties .Inthe PIC_6 dialog box, select Start Screen . Do not change
the other settings.
 You can also define a new name for the screen: Start_Sys1.
 Close the dialog box with OK .
You have now created the first screen. Now, transfer the configuration to the OP to see what the screen
looks like.
(1
s
t
screen entry, 1
s
t
line)
(1
st
screen entry, 2
nd
line)
(2
n
d
screen entry, 1
s
t
line)
(2
nd
screen entry, 2
nd
