Siemens simatic c7-621 Guide

Introduction 04/99
6 Getting Started with C7-621-AS-i

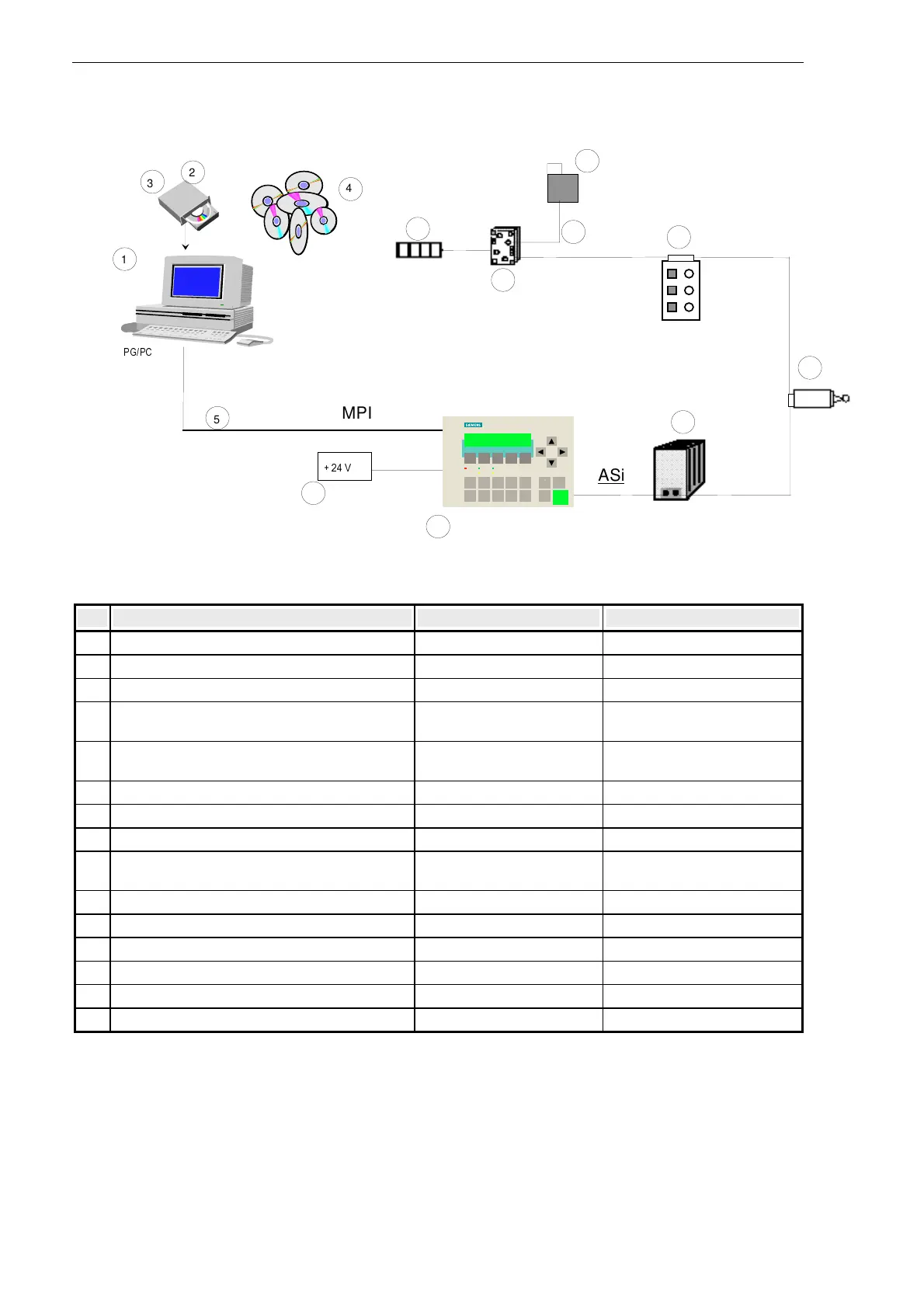

Hardware configuration
Checklist of the required components
Component Order no. Included in starter kit
1 PC or programming device no
2 Programming software STEP 7-Mini 6ES7 810-3CC04-0YX0 yes
3 Configuring software ProTool/Lite 6AV6 580-3BX05-1AX0 yes
4 SIMATIC documentation on CD-ROM (in 5
languages)
6ES7 398-8AE00-8YE0 yes
5 PC/MPI adapter
RS232 cable
6ES7 972-0CA22-0XA0
6ES7 901-1BF00 0XA0
yes
yes
6 SIMATIC C7-621-AS-i control system 6ES7 621-6BD00-0AE3 yes
7 +24V power supply PS307 6ES7 307-1BA00-0AA0 no
8 AS-Interface power pack and AS-i cable 3RX9307-0AA00 yes
9 2 x connecting cable with M-12 socket and
connector
3RX1634 yes
10 Position switch with AS-i connection 3SE3230-1GW-Z (Z=C01) yes
11 Inductive proximity switch 3RG4022-3JB00 yes
12 Optical proximity switch 3RG7130-3AB00 yes
13 SIGNUM casing with AS-Interface 3SB803-4AZ yes
14 AS-Interface user module 3RK1400-1DQ00-0AA3 yes
15 AS-Interface connection module 3RK1901-0CA00 yes
PG/PC
+ 24 V
ASi
MPI
1
2
3
4
5
6
7
8
9
10
11
12
13
14
F1 F2 F3
F4
F5
SF DC5V
FRCE
RUN
STOP
123
7896
45
0
SIMATIC C7-621
ENTER
ESC
SHIFT
+/-
