Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
48 Operating Instructions, 07/2017, A5E36770603-AB
Wiring diagram

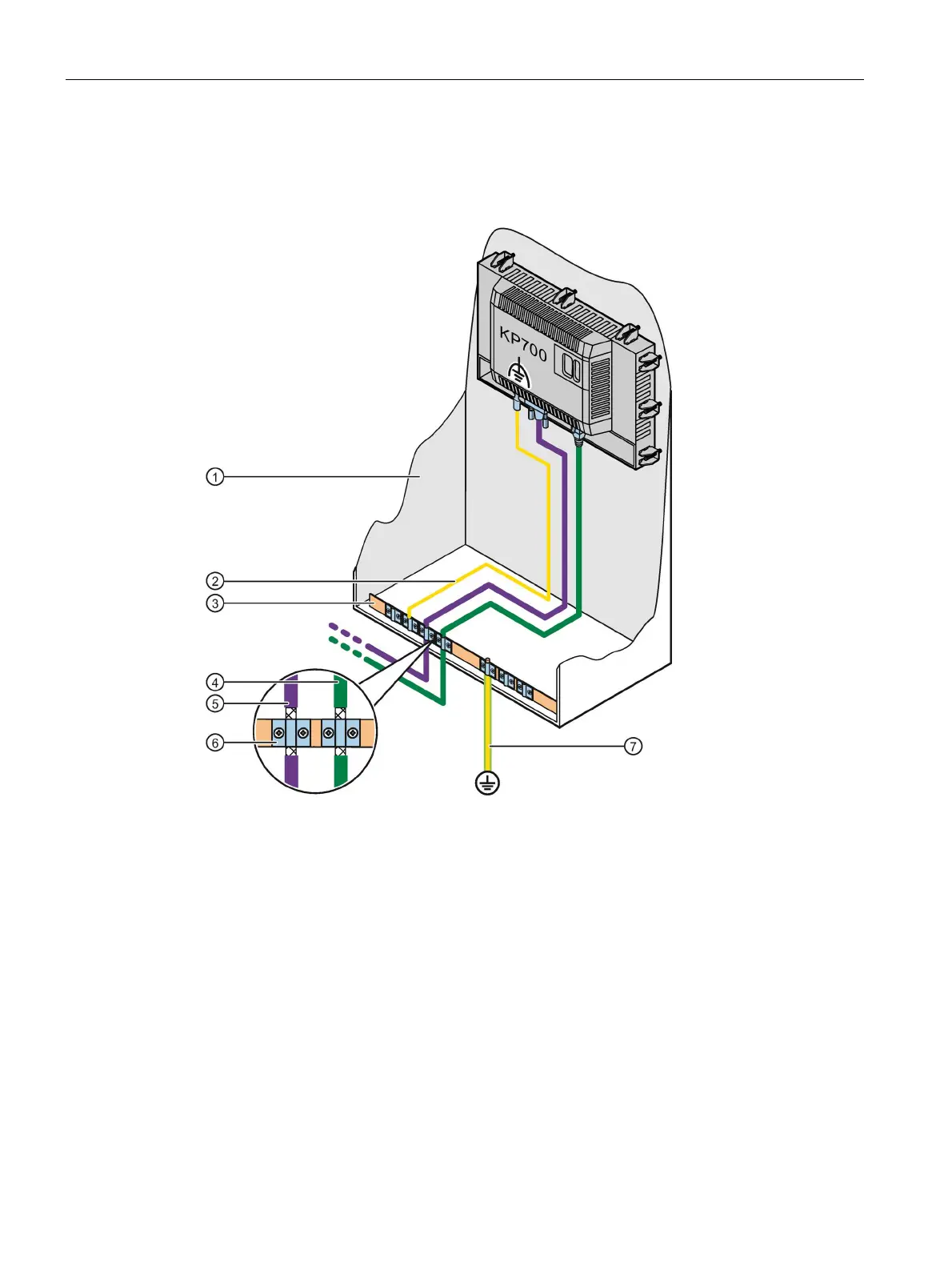

The following figure shows the connection of the equipotential bonding with KP700 Comfort
as an example and also applies to the other Comfort devices.
①
Control cabinet
②
Equipotential bonding cable, 4 mm
2
③
Equipotential bonding rail
④
PROFINET data cable
⑤
PROFIBUS data cable
⑥
Cable clip
⑦
Ground bar, 16 mm
2
