Overview

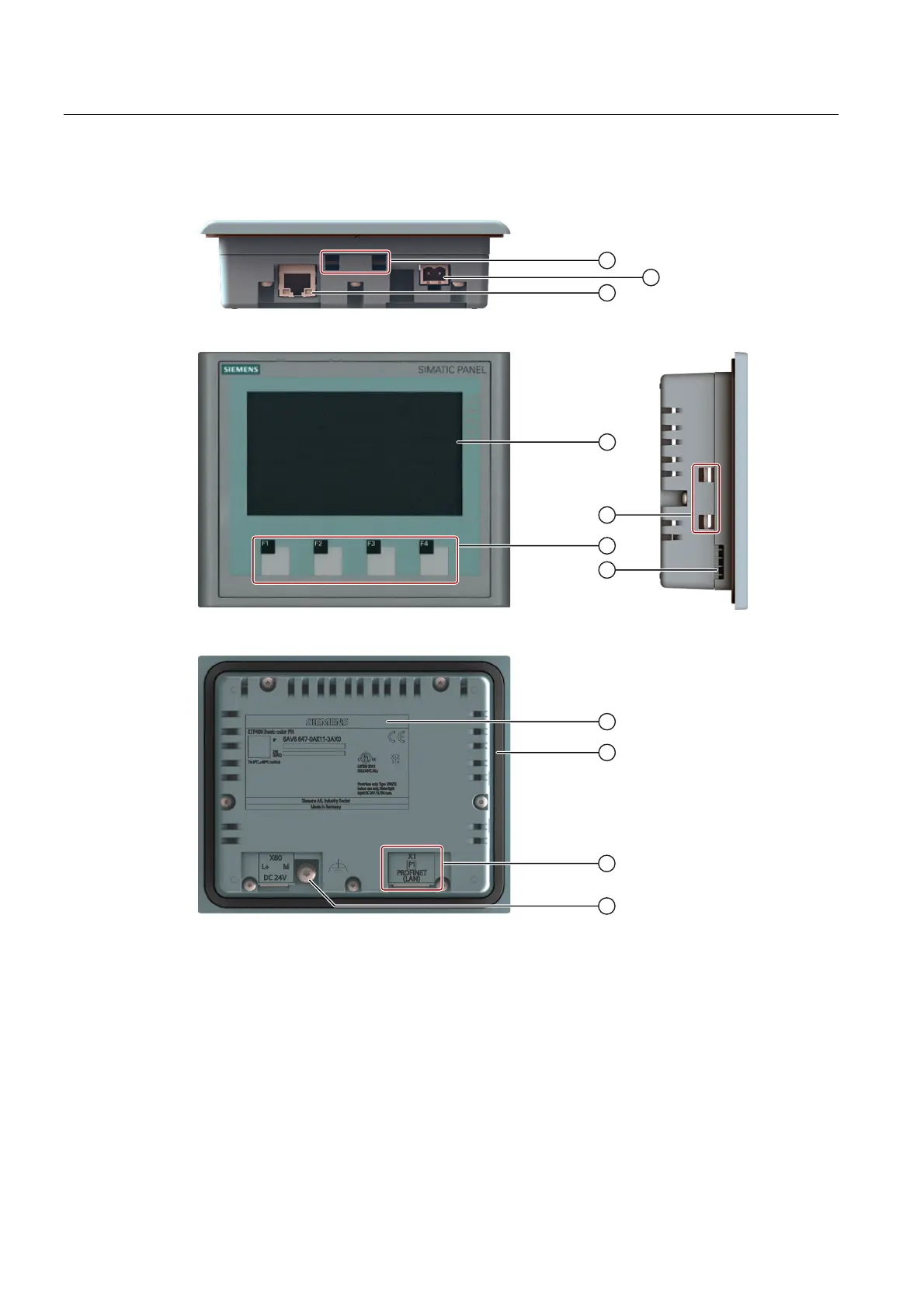

1.5 Design of the KTP400 Basic color PN
Basic Panels
16 Operating Instructions, 04/2012, A5E02421799-03
1.5 Design of the KTP400 Basic color PN

① Cutouts for mounting clamps ⑥ Guide for a labeling strip
② Power supply connector ⑦ Rating plate
③ PROFINET interface ⑧ Mounting seal
④ Display/touch screen ⑨ Interface name
⑤ Function keys ⑩ Functional earth connection
