Mounting and connecting
3.3 Connecting the HMI device
Basic Panels
36 Operating Instructions, 04/2012, A5E02421799-03

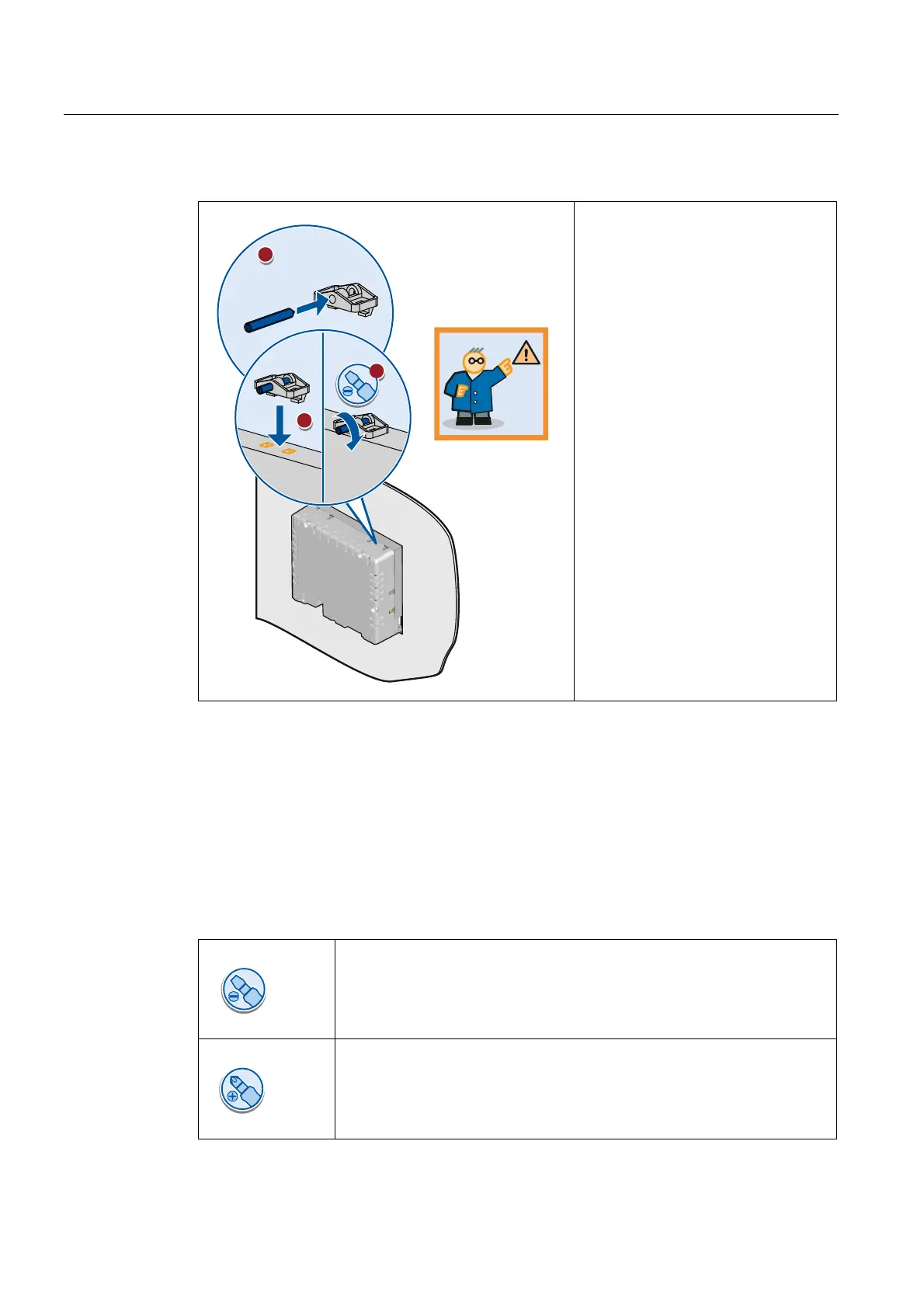

Securing the HMI device with plastic mounting clamps
ื 0.2
Nm


.73


1. If mounting clamps and grub screws
are available separately in the
accessories bag, insert a grub screw
into the mounting clamp bore hole
and turn it several times.
2. Place the first mounting clamp into
the corresponding cutout.
3. Secure the clamps using a size 2
screwdriver. The maximum
permitted torque is 0.2 N/m.
4. Repeat steps 1 to 3 for all mounting
clamps required to secure your HMI
device.
3.3 Connecting the HMI device
3.3.1 Connection sequence
Required tools and accessories
Before beginning the connection of the HMI device, have the following tools and accessories
at hand:
Slotted screwdriver, size 2
Phillips screwdriver, size 3

Siemens SIMATIC HMI KTP600 Basic mono PN Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Mounting	Panel Mount
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Display Size	6 inches
Protection Rating	IP65 (front)
Display Type	Monochrome LCD
