3.5 Securing the cables
Basic Panels
50 Operating Instructions, 04/2012, A5E02421799-03
3.5 Securing the cables

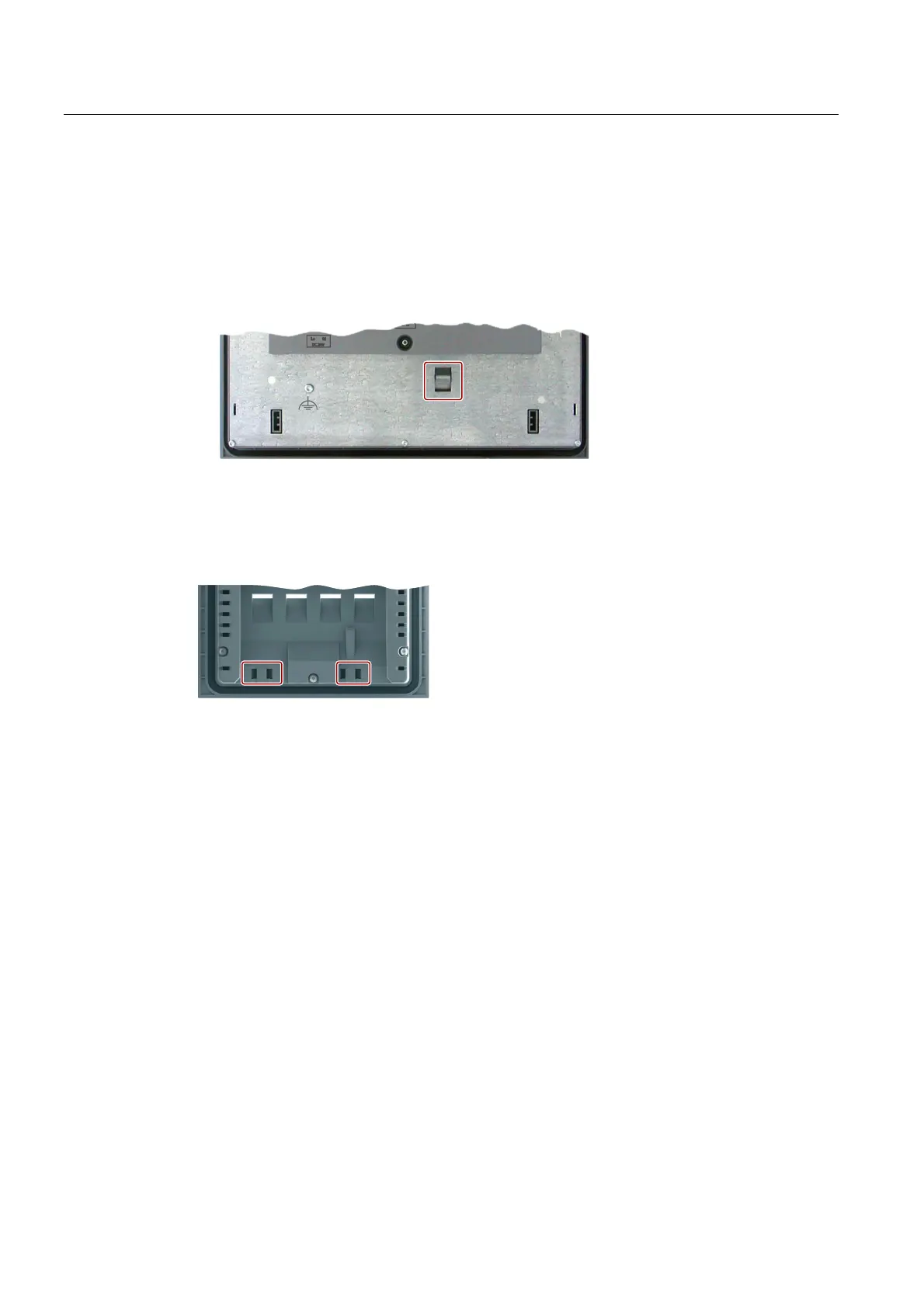

The following HMI devices come equipped with a fixing element on the back for strain relief:
● KTP1000 Basic DP
● KTP1000 Basic PN
● TP1500 Basic
After the power-on test, use a cable tie to secure the connected cables to the marked fixing
element in order to provide strain relief.
On the back of the HMI device KP400 Basic color PN, there are openings for leading in two
cable ties for strain relief of the power supply cable and LAN cable.

Siemens SIMATIC HMI KTP600 Basic mono PN Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Mounting	Panel Mount
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Display Size	6 inches
Protection Rating	IP65 (front)
Display Type	Monochrome LCD
