Siemens SIMATIC HMI KTP600 Basic mono PN User Manual

Mounting and connecting
3.3 Connecting the HMI device
Basic Panels
Operating Instructions, 04/2012, A5E02421799-03
39

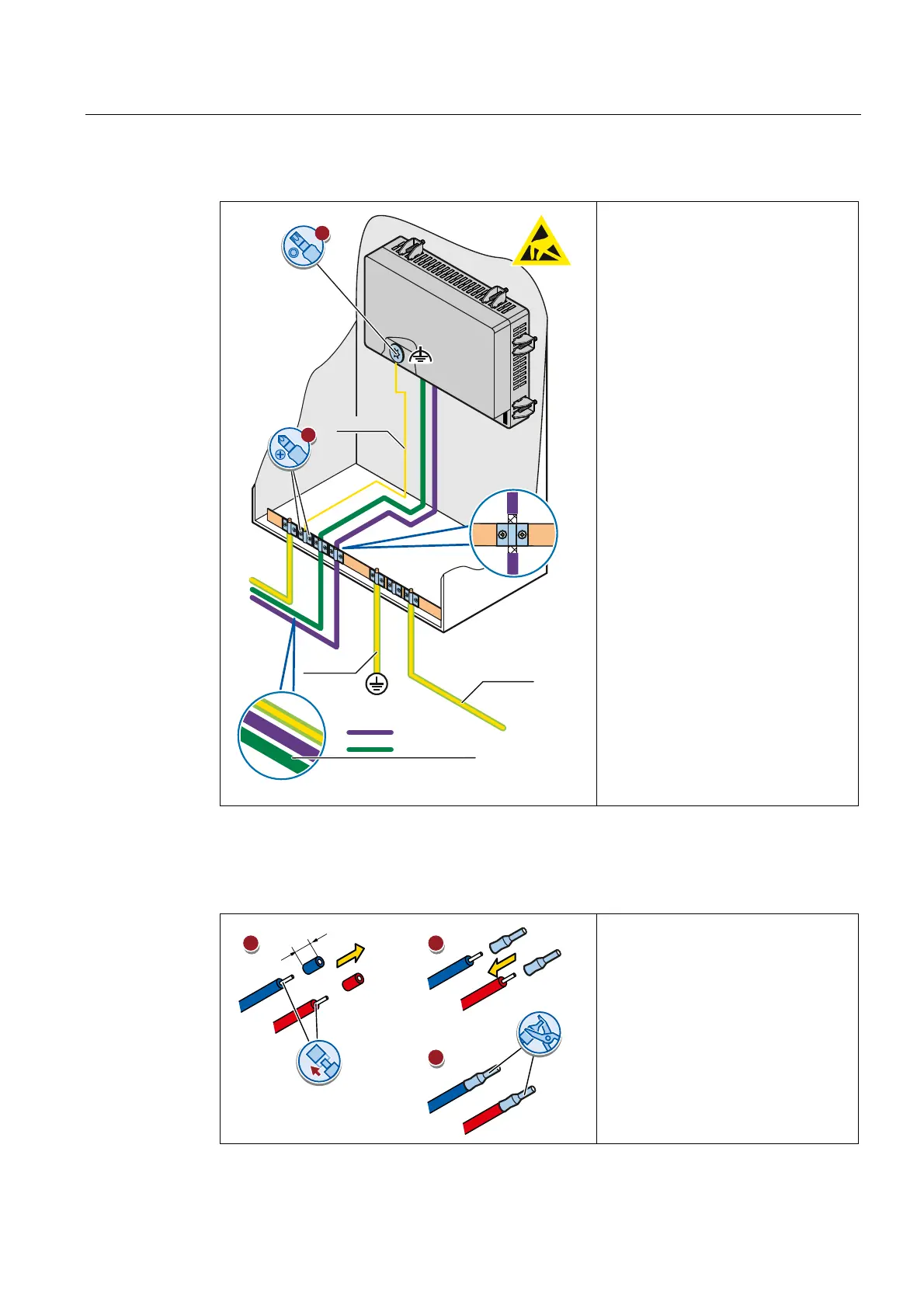

Procedure
.73
PPt
ุPPt
ุPPt
352),%86
352),1(7


1. Interconnect functional ground of the
HMI device with an grounding cable,
cross-section 4 mm
2
.
2. Connect the grounding cable of the
HMI device to the equipotential
bonding rail.
3.3.3 Connecting the power supply
Stripping the cable
6 mm
 

Use power supply cables with a
maximum cross-section of 1.5 mm
2
.
1. Strip the ends of two power supply
cables to a length of 6 mm.
2. Attach cable sleeves to the bare
cable ends.
3. Fix the cable sleeve onto the cable
ends using the crimp pliers.

Siemens SIMATIC HMI KTP600 Basic mono PN Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Mounting	Panel Mount
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Display Size	6 inches
Protection Rating	IP65 (front)
Display Type	Monochrome LCD
