Siemens SIMATIC HMI KTP600 Basic mono PN User Manual

Mounting and connecting
3.4 Switching on and testing the HMI device
Basic Panels
48 Operating Instructions, 04/2012, A5E02421799-03
3.4 Switching on and testing the HMI device

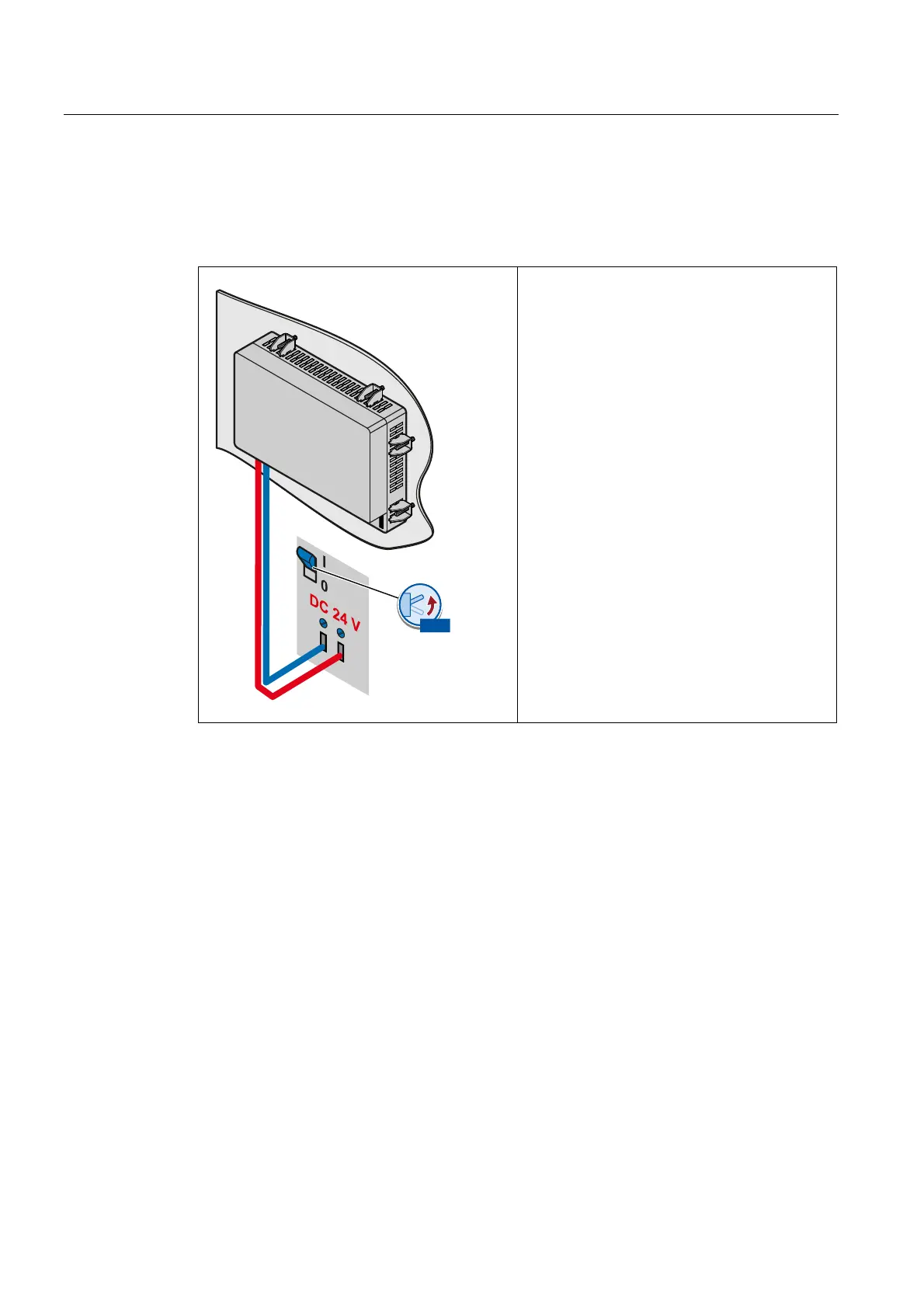

Switching on the HMI device.
M
L+
.73
21
Switching on the power supply.
The screen lights up after power is switched on.
A progress bar is displayed during startup.
If the HMI device fails to start, you have probably
crossed the wires on the power supply terminal.
Check the connected wires and change their
connection.

Siemens SIMATIC HMI KTP600 Basic mono PN Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Mounting	Panel Mount
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Display Size	6 inches
Protection Rating	IP65 (front)
Display Type	Monochrome LCD
