Siemens SIMATIC HMI KTP600 Basic mono PN User Manual

Basic Panels
Operating Instructions, 04/2012, A5E02421799-03
67
Configuring the HMI device
5
5.1 Configuring devices with graphical Control Panel
5.1.1 Opening the Control Panel
With the exception of the KP300 Basic mono PN, all Basic Panels have a graphic Control
Panel.
%DVLF3DQHOV'3
%DVLF3DQHOV31


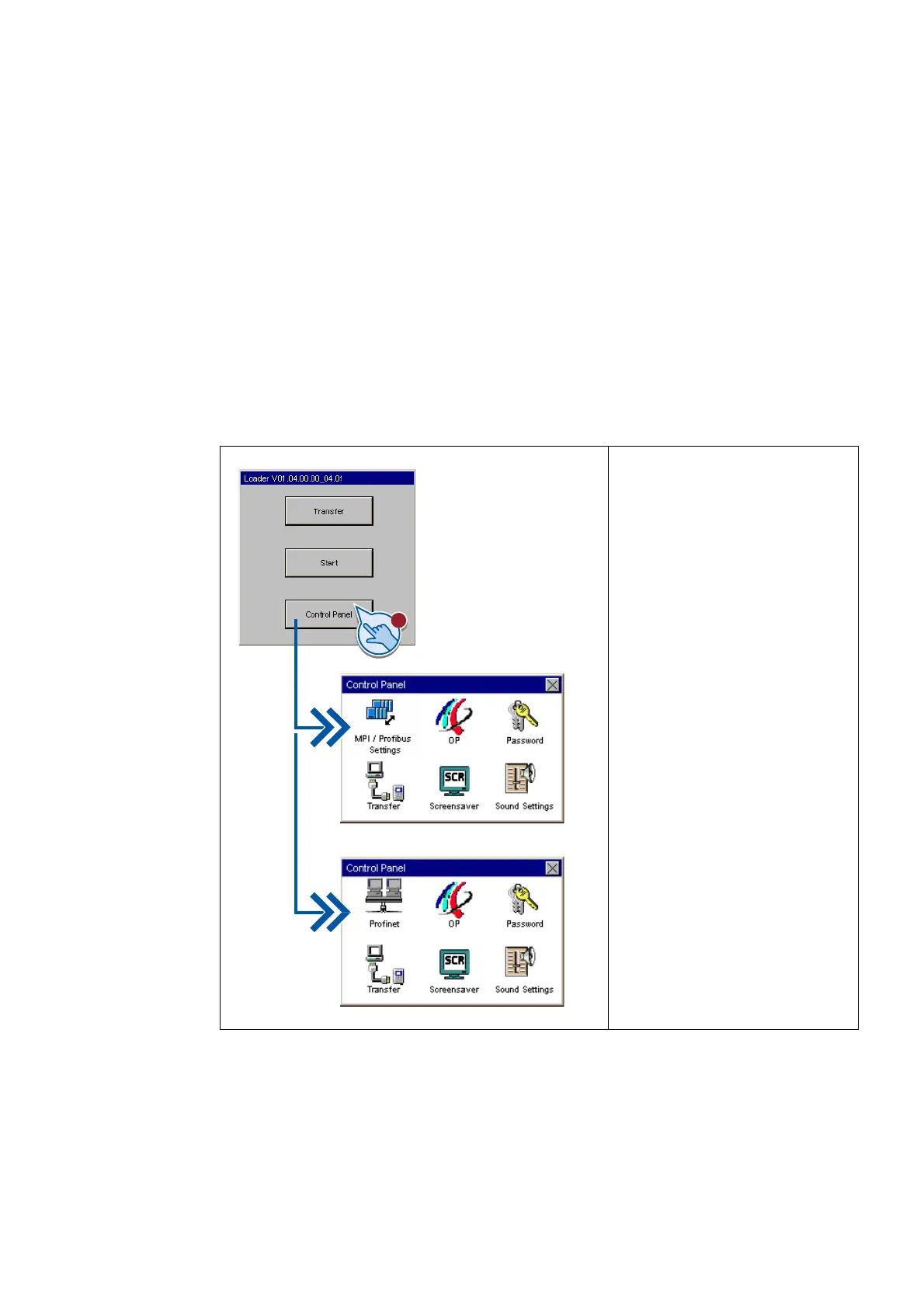

Open the Control Panel by pressing
the "Control Panel" button of the
Loader.
Configure your HMI device in the
Control Panel. You can make the
following settings:
• Communication settings
• Settings for operation
• Password protection
• Transfer settings
• Screen saver
• Acoustic signals
The "MPI / Profibus Settings" is only
available on Basic Panels DP.
The "Profinet" is only available on
Basic Panels PN.
The "Sound Settings" symbol is only
available on devices with sound
reproduction.

Siemens SIMATIC HMI KTP600 Basic mono PN Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Mounting	Panel Mount
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Display Size	6 inches
Protection Rating	IP65 (front)
Display Type	Monochrome LCD
