Siemens SIMATIC HMI KTP600 Basic mono PN User Manual

Mounting and connecting
3.3 Connecting the HMI device
Basic Panels
Operating Instructions, 04/2012, A5E02421799-03
41
3.3.4 Connecting a programming device
A programming device provides the following options:
● Transferring projects.
● Transferring device images.

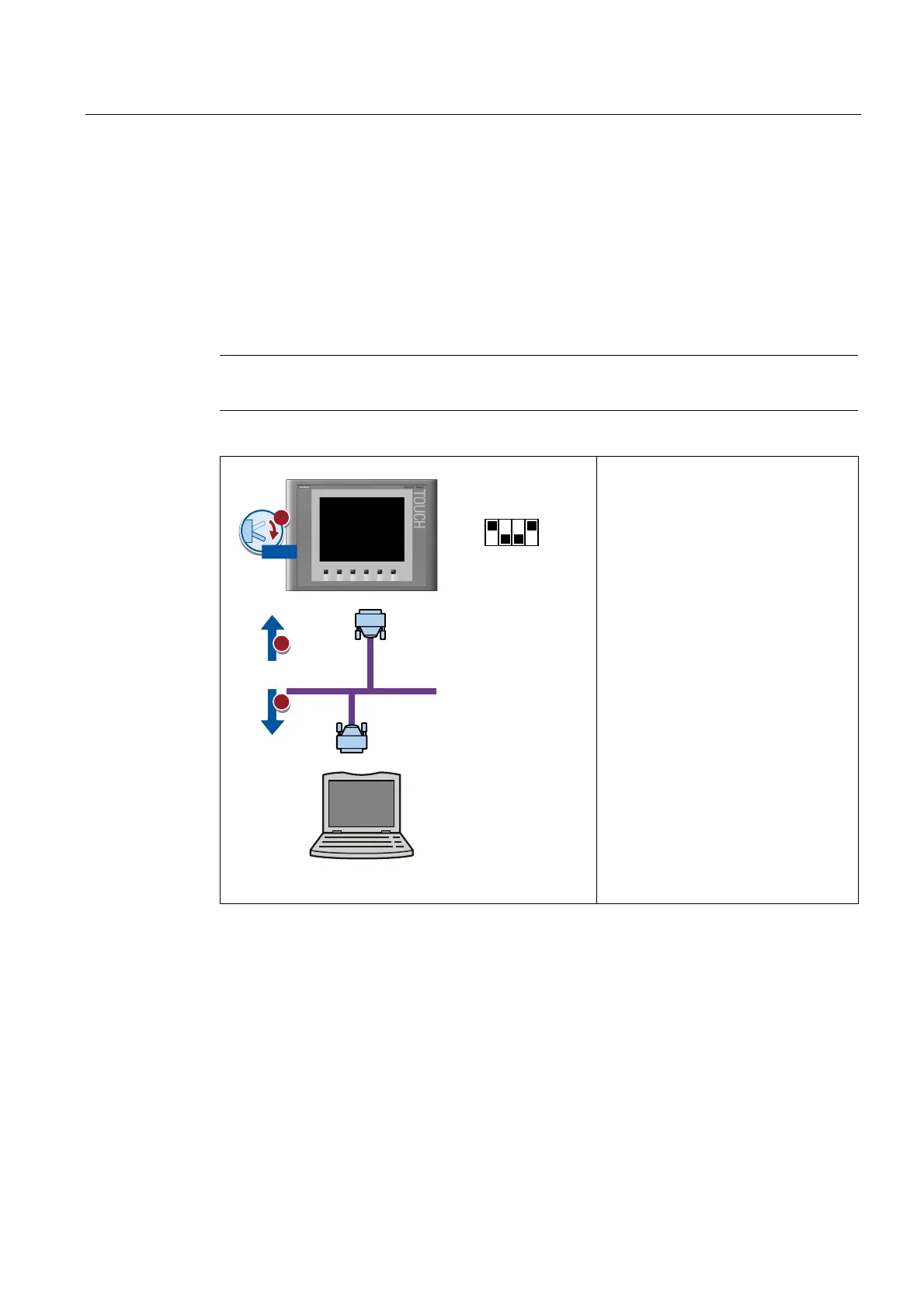

Connecting a programming device to a Basic Panel DP
Note
A programming device cannot be used to reset the HMI device to factory settings.
PROFIBUS
RS 422/ 485
RS 485
PG


2))


21
1. Shut down the HMI device. Make
sure that the DIP switch on the rear
panel of the HMI device is in the
position shown.
2. Connect an RS 485 PROFIBUS
connector to the HMI device.
3. Connect an RS 485 PROFIBUS
connector to the programming
device.

Siemens SIMATIC HMI KTP600 Basic mono PN Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Mounting	Panel Mount
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Display Size	6 inches
Protection Rating	IP65 (front)
Display Type	Monochrome LCD
