Configuring the HMI device
5.1 Configuring devices with graphical Control Panel
Basic Panels
Operating Instructions, 04/2012, A5E02421799-03
77

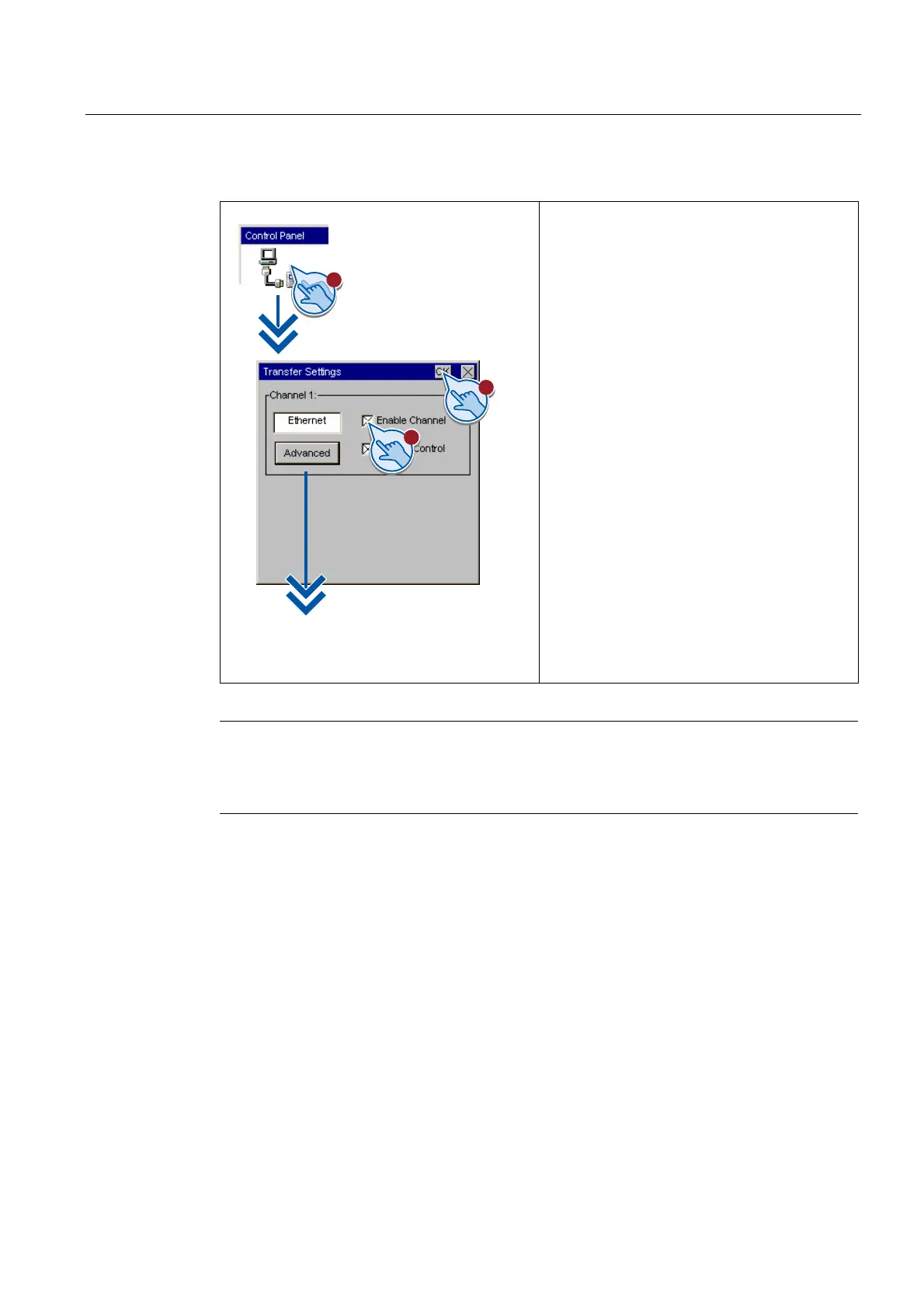

Enabling a data channel - Basic Panels PN
1. Press "Transfer" to open the "Transfer
Settings" dialog.
2. Select the "Enable Channel" check box in the
"Channel 1" field.
Press the "Advanced" button to open the
"Profinet Settings" dialog. Verify the network
parameters in this dialog. A description of the
"Profinet Settings" dialog is provided in
chapter 5.1.4, Changing the network
config
uration (Page 70).
3. Close th
e dialog and save your entries with
"OK".
Note
Automatic transfer is activated be setting the "Remote Control" check box. If automatic
transfer is activated, the HMI device can be set remotely to transfer mode by a configuring
PC or programming device.
