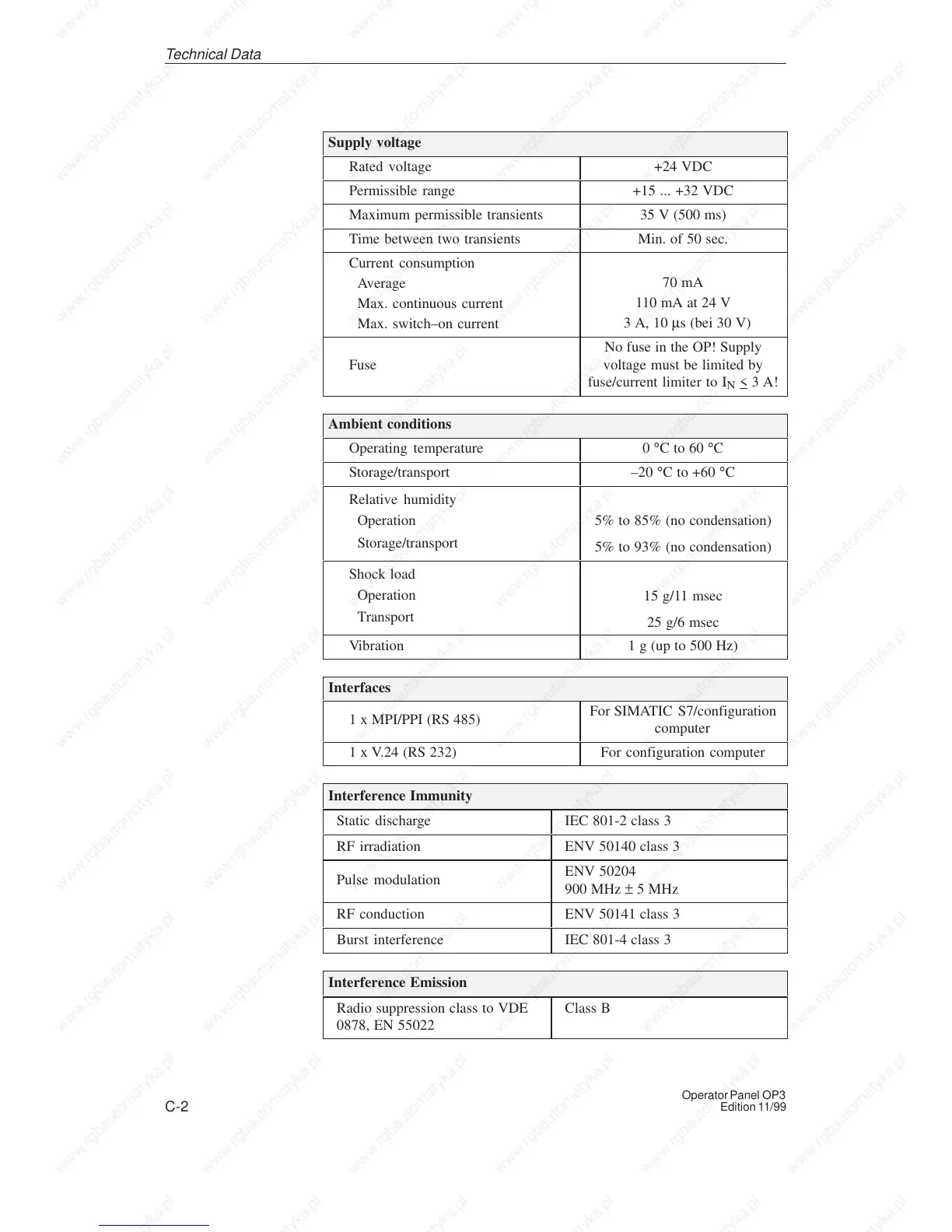

C-2
Operator Panel OP3
Edition 11/99
Supply voltage
Rated voltage +24 VDC
Permissible range +15 ... +32 VDC
Maximum permissible transients 35 V (500 ms)
Time between two transients Min. of 50 sec.
Current consumption
Average
Max. continuous current
Max. switch–on current
70 mA
110 mA at 24 V
3 A, 10 µs (bei 30 V)
Fuse
No fuse in the OP! Supply
voltage must be limited by
fuse/current limiter to I
N
< 3 A!
Ambient conditions
Operating temperature 0 °C to 60 °C
Storage/transport –20 °C to +60 °C
Relative humidity
Operation
Storage/transport
5% to 85% (no condensation)
5% to 93% (no condensation)
Shock load
Operation
Transport
15 g/11 msec
25 g/6 msec
Vibration 1 g (up to 500 Hz)
Interfaces
1 x MPI/PPI (RS 485)
For SIMATIC S7/configuration
computer
1 x V.24 (RS 232) For configuration computer
Interference Immunity
Static discharge IEC 801-2 class 3
RF irradiation ENV 50140 class 3
Pulse modulation
ENV 50204
900 MHz ± 5 MHz
RF conduction ENV 50141 class 3
Burst interference IEC 801-4 class 3
Interference Emission
Radio suppression class to VDE
0878, EN 55022
Class B
Technical Data
