Reading QR Codes with SIMATIC MV320 via ET200SP CM PtP
Article ID: 109474684, V2.0, 10/2021
4.3 Loading the S7-300 configuration
Proceed as follows to download the configuration:
1. Start TIA Portal V17.
2. Open the project
"109474684_ET_200SP_CM_PtP_MV320_PROJ_V17_V20.ap17".
3. Connect the Ethernet port of the programming computer with the Ethernet port
of the S7-300 CPU.

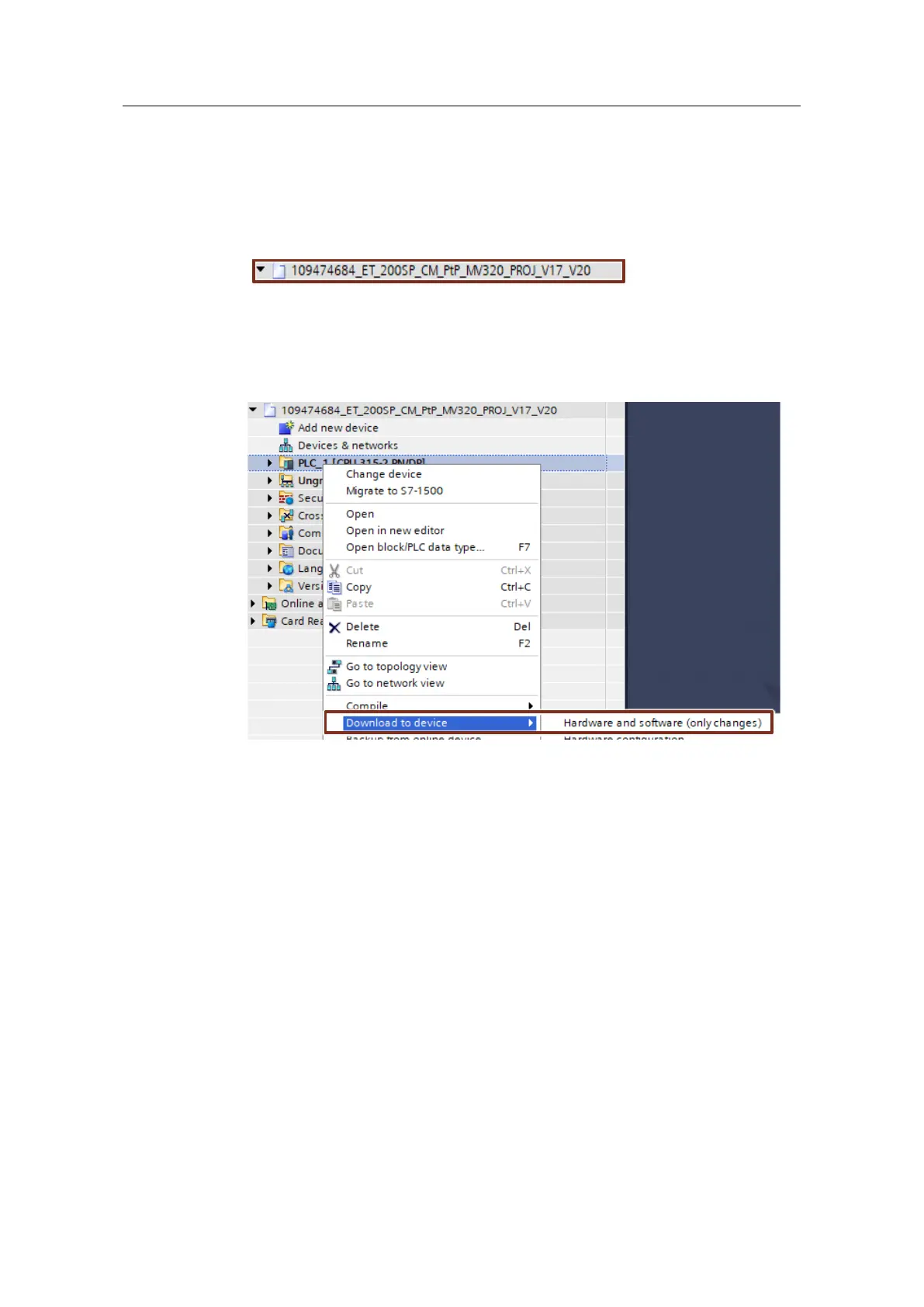

4. Load the configuration "PLC_1". To do this, right-click the device in the project
tree and select the menu "Download to device > Hardware and software (only
changes)".
