5 Operation

Reading QR Codes with SIMATIC MV320 via ET200SP CM PtP

Article ID: 109474684, V2.0, 10/2021

5 Operation

Introduction

This chapter will show you how to use the functions of the application example

described above.

Procedure

To store data from the SIMATIC MV320 handheld reader in the CPU, enter the

corresponding data codes with the handheld reader.

1. Using the MV320 reader, scan one of the codes from Figure 5-1.

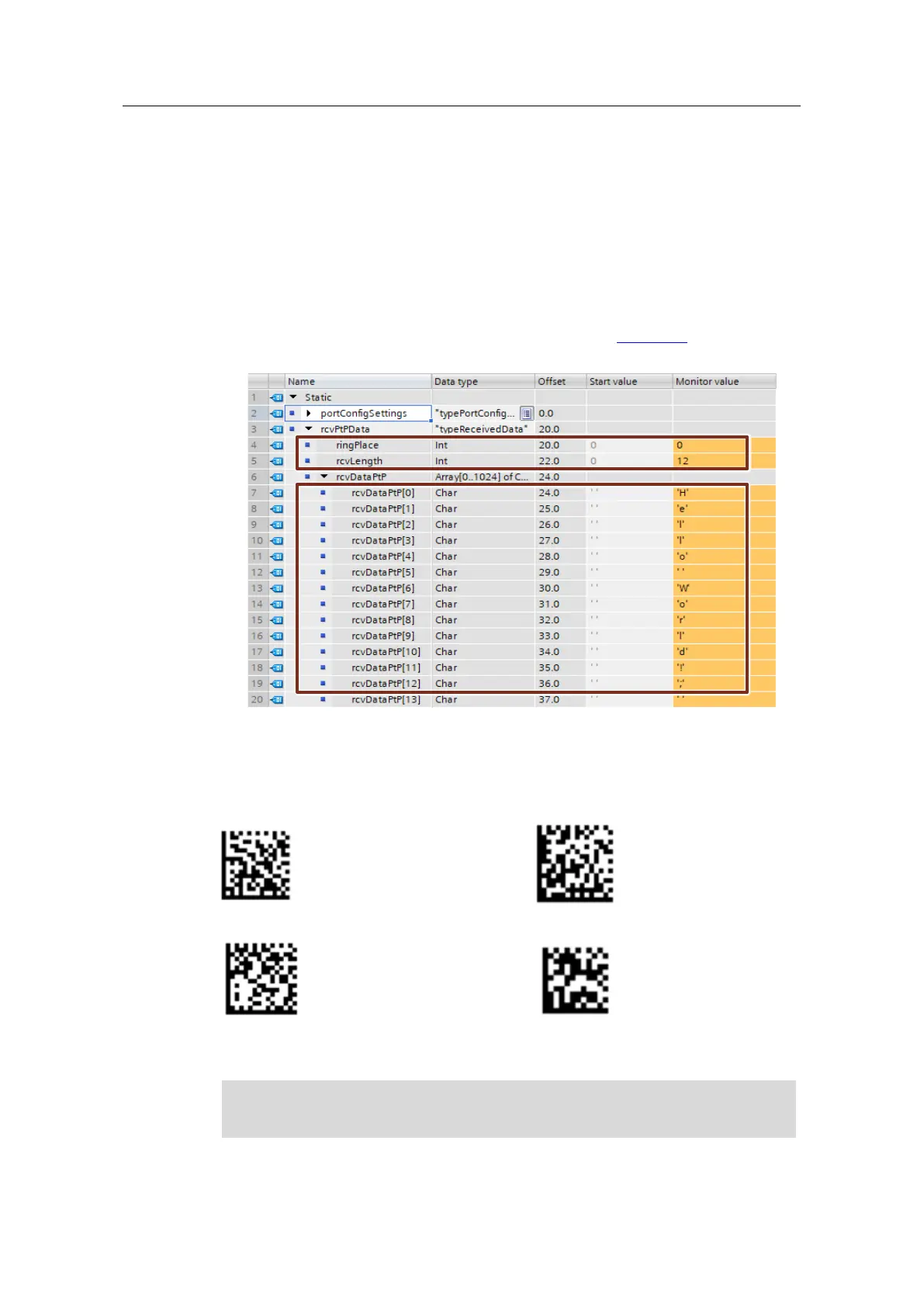

2. You can monitor the data on the "DataPtP" data block in STEP 7.

Sample codes

Here are some sample codes for testing the transmission. The contained string is

always below the Data Matrix code.

Figure 5-1

ABCDEFGHIJKL

Hello World!

Siemens AG

0123456789

Note

If you want to send individual data, you can use code generators found on the

internet.
