Description of the device
1.1 CP 1604 communications processor
CP 1604 / CP 1616
Operating Instructions, 02/2017, C70000-G8976-C218-08
17
Assignment
The pin assignment of the 10-pin connector (PE) is as follows:

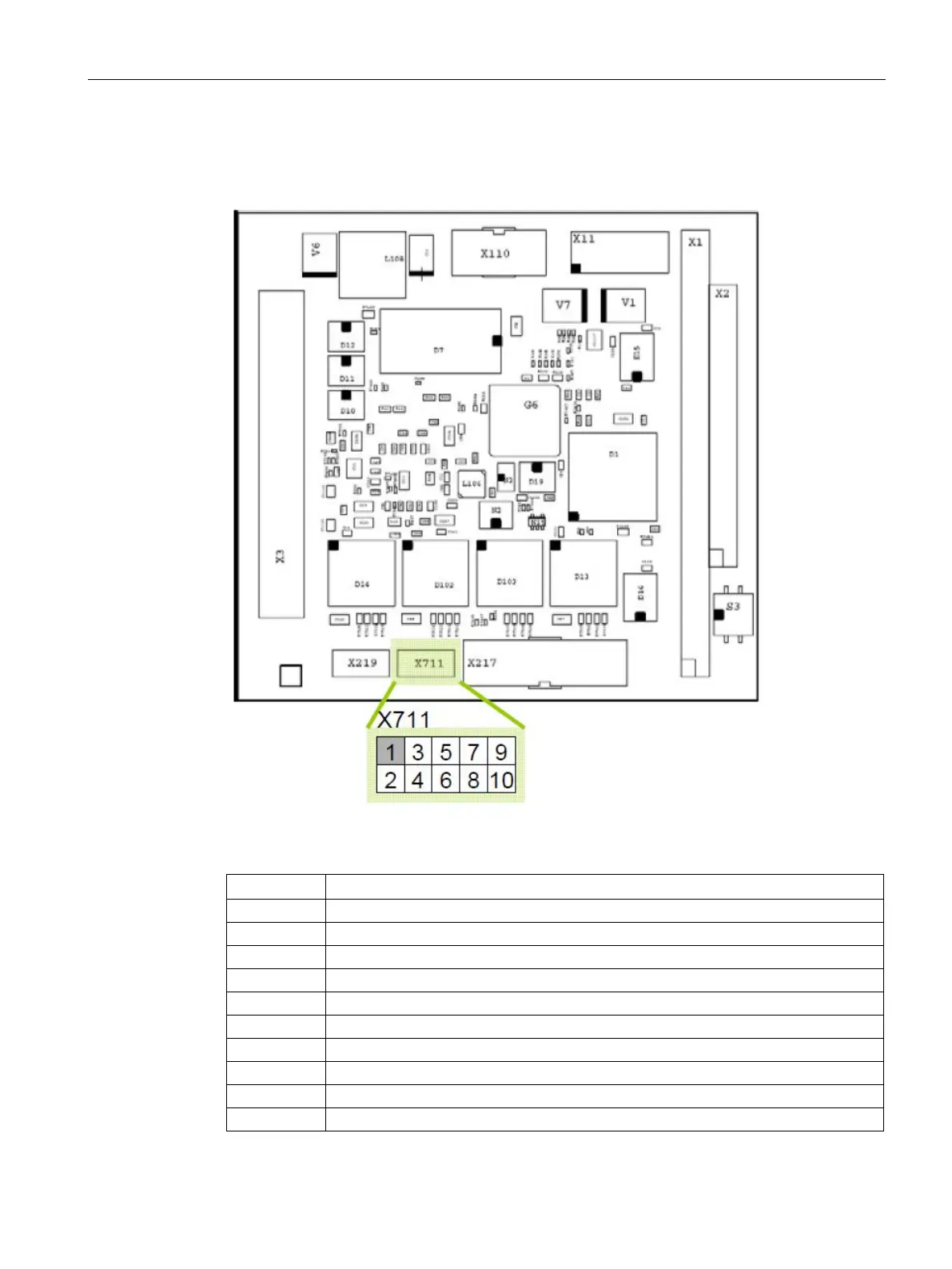

Figure 1-1 View of the 10-pin connector (PE) - X711 from above
PIN number
Remarks
1 3.3 V
2
PE_WAKE signal
3
Do not connect!
4
Do not connect!
5
Do not connect!
6
Do not connect!
7
Do not connect!
8
Do not connect!
9
Do not connect!
10
Ground
