CP 1604 / CP 1616
Operating Instructions, 02/2017, C70000-G8976-C218-08
11
Description of the device
1
1.1
CP 1604 communications processor
Appearance

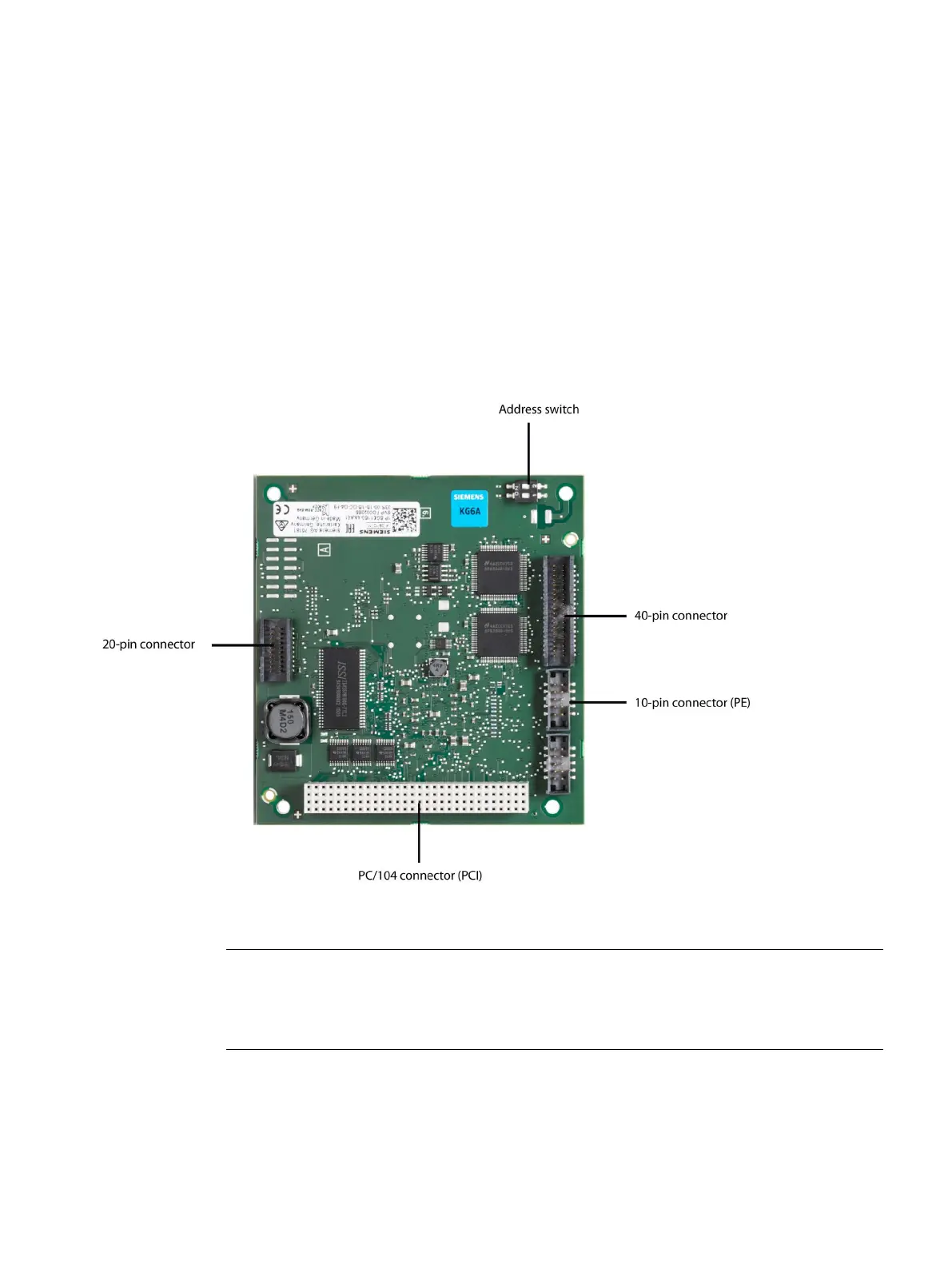

The following graphic shows the CP 1604 communications processor:
Note
CP 1604 EEC
CP 1604 EEC has the same construction The PCB is however varnished and it therefore has
greate
r resistance to environmental influences.
