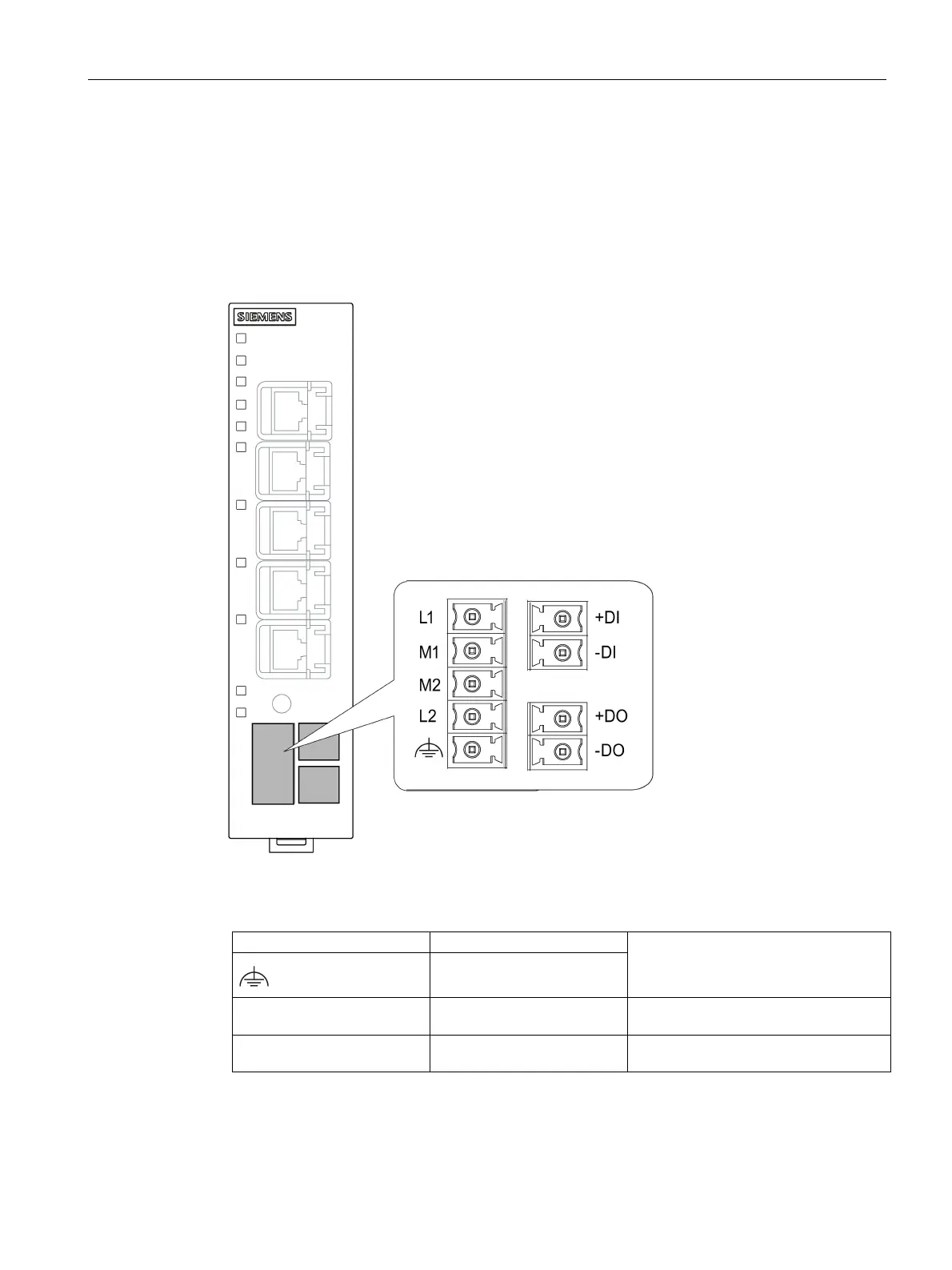

LED Status Meaning
F
OFF No fault/error.
ON The device is starting up or an error has occurred.
Flashing The bootloader waits in this state for new rmware le that you can down‐
load by TFTP.
Flashing
at the inter‐
val: 2000 ms
on / 200 ms
o
Firmware on PLUG
The device is performing a rmware update or downgrade.
L
OFF Device turned o, no power supply.
ON Device turned on, power supply present.
OFF No VPN connection is established.
ON All congured VPN connections are established.
Flashing Only some of the congured VPN connections are established.
P1
P2
P3
P4
P5
OFF Ethernet connection to local computer or LAN not established.
ON Ethernet connection to local computer or LAN established.
ON Device receiving/sending data.
DI OFF Digital input inactive
ON Digital input active.
DO OFF Digital output inactive
ON Digital output active.
Description of the device
3.7LED display
SCALANCE S615
Operating Instructions, 05/2023, C79000-G8976-C389-08 25
