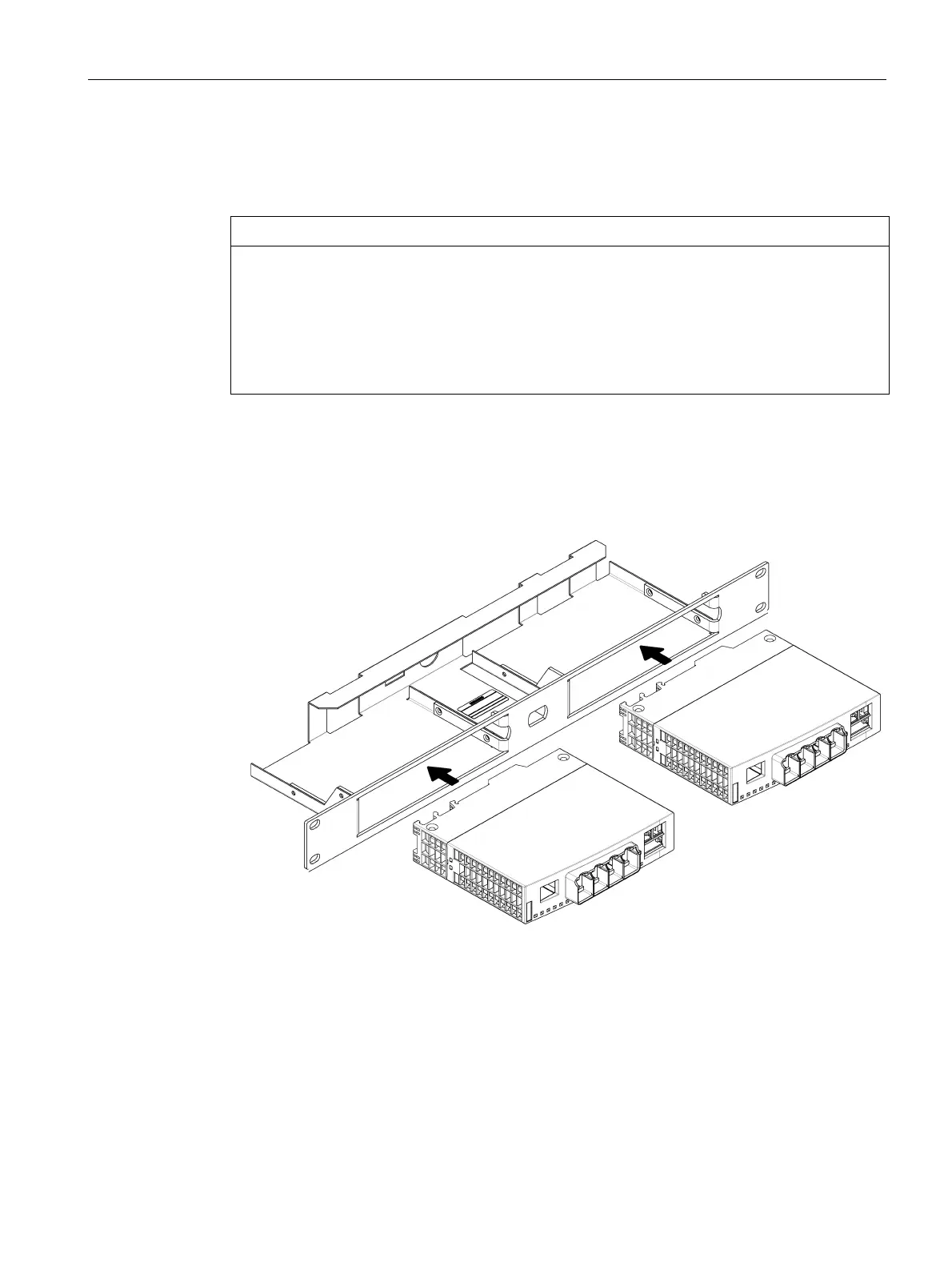

Siemens SIMATIC NET SCALANCE S615 - Installation in a 19 Mounting Frame

4. Fit the connectors for the digital input and digital output, refer to the section "Digital input/
output (Page51)".
5. Connect the device to the local network, refer to the section "Ethernet port (Page53)".
6. Connect the terminal with as short a cable as possible ≤ 150 mm and a large cross-sectional
area ≥ 1.5mm² to the functional ground of the system, see section "Grounding (Page50)
“ and section “Terminals (Page23)“.
Dismantling
1. Disconnect all connected cables.
2. Using a screwdriver, pull down the catch on the rear of the device.
3. Remove the device from the pedestal.
Installation and removal
4.8Mounting on a pedestal
SCALANCE S615
Operating Instructions, 05/2023, C79000-G8976-C389-08 41
