Configuring with Web Based Management
4.5 "Layer 2" menu
SCALANCE SC-600 Web Based Management (WBM)
234 Configuration Manual, 10/2021, C79000-G8976-C475-03
4.5.2.2 Port Based VLAN
Processing received frames

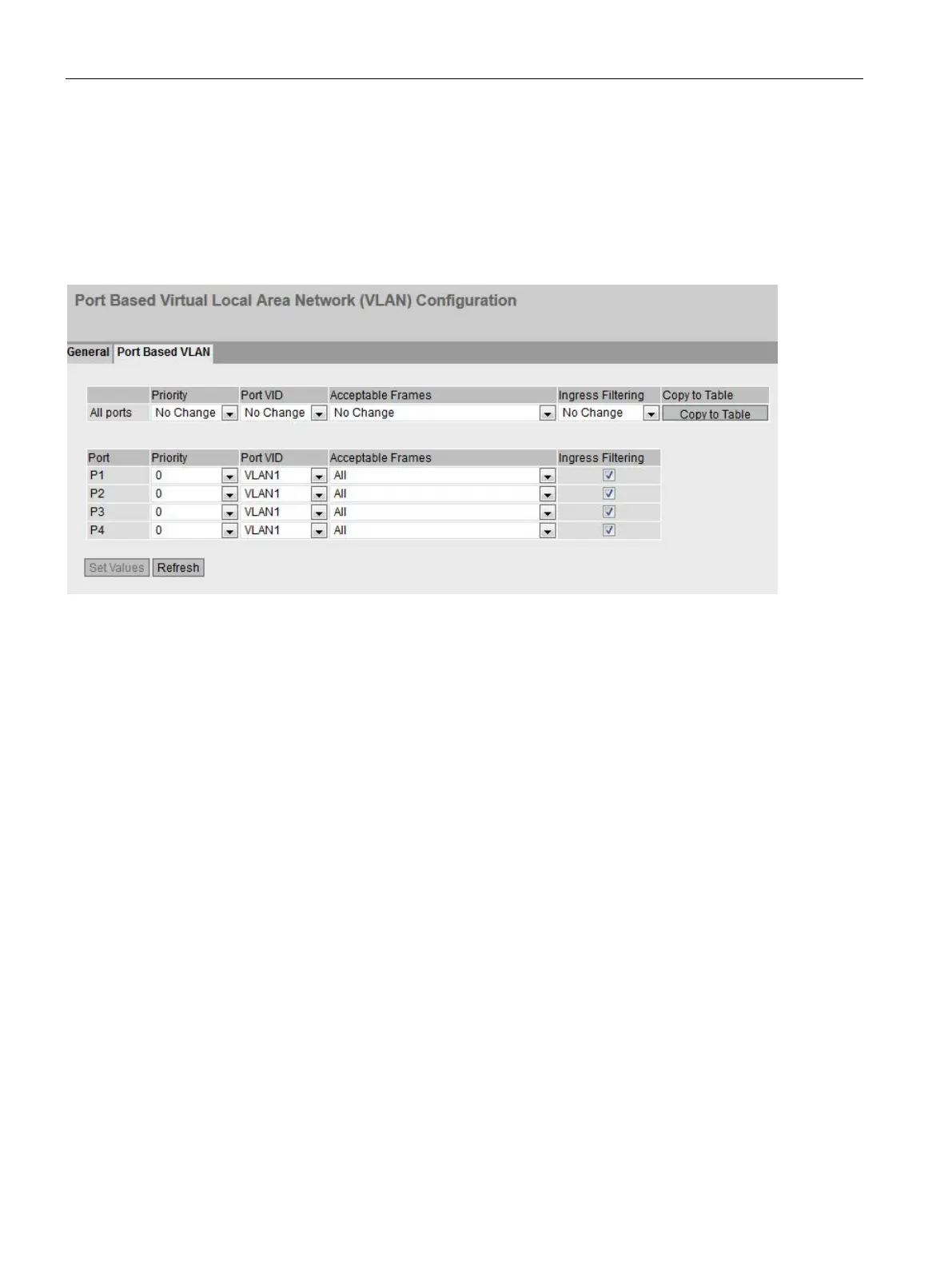

On this WBM page, you specify the configuration of the port properties for receiving
frames.
Description
Table 1 has the following columns:
• All ports
Shows that the settings are valid for all ports of table 2.
• Priority / Port VID / Acceptable Frames / Ingress Filtering
In the drop-down list, select the setting for all ports. If "No Change" is selected, the
entries of the corresponding column in table 2 remain unchanged.
• Copy to Table
If you click the button, the setting is adopted for all ports of table 2.
Table 2 has the following columns:
• Port
Shows the available ports.
• Priority
Select the required priority assigned to untagged frames.
The CoS priority (Class of Service) used in the VLAN tag. If a frame is received
without a tag, it will be assigned this priority. This priority specifies how the frame is
further processed compared with other frames.
There are a total of eight priorities with values 0 to 7, where 7 represents the highest
priority (IEEE 802.1p Port Priority).
