Configuring with Web Based Management
4.3 "Information" menu
SCALANCE SC-600 Web Based Management (WBM)
94 Configuration Manual, 10/2021, C79000-G8976-C475-03
Power Loss State
To be able to monitor the power loss of the connection the function fiber monitoring
must be enabled for the optical port of the connection partner.
• disabled
Fiber monitoring is disabled.
• ok
The value for the power loss of the optical link is within the defined limits.
• maint. req.
Check the link.
A warning is signaled.
• maint. dem.
The link needs to be checked.
An alarm is signaled and the fault LED is lit.
• idle
The port has no connection to another port with fiber monitoring enabled.
If no diagnostics information is received from the optical port of the connection
partner for 5 cycles, the fiber monitoring connection is assumed to be interrupted. A
cycle lasts 5 seconds.
Power Loss [dB]
Shows the current value of the power loss. The value can have a tolerance of +/- 3 dB.
If there is no connection (link down), Fiber Monitoring is disabled or the partner port
does not support Fiber Monitoring, "-" is displayed.
4.3.10 Routing
Introduction

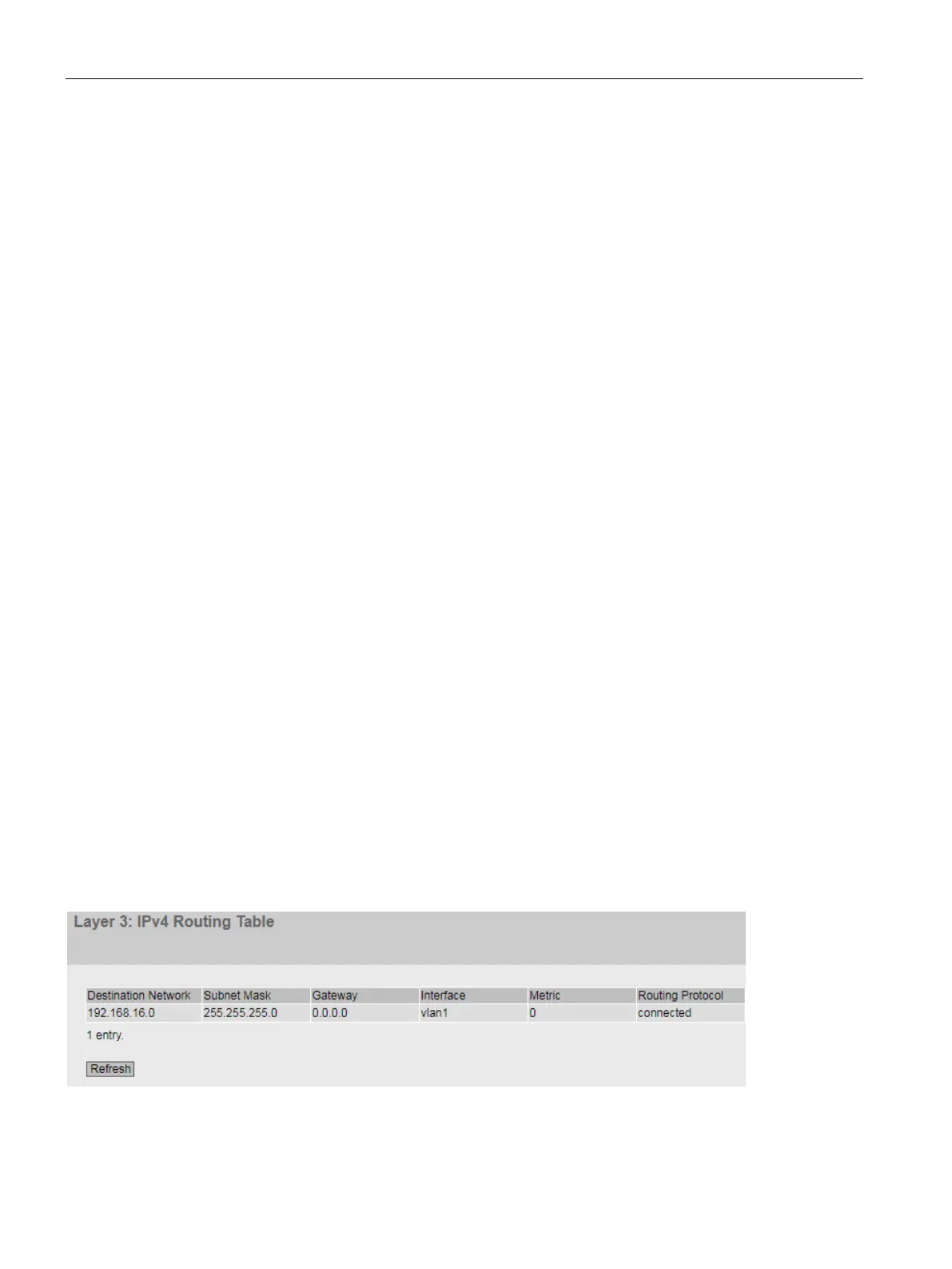

This page shows the routes currently being used.
