Configuring with Web Based Management
4.7 "Security" menu
SCALANCE SC-600 Web Based Management (WBM)
308 Configuration Manual, 10/2021, C79000-G8976-C475-03

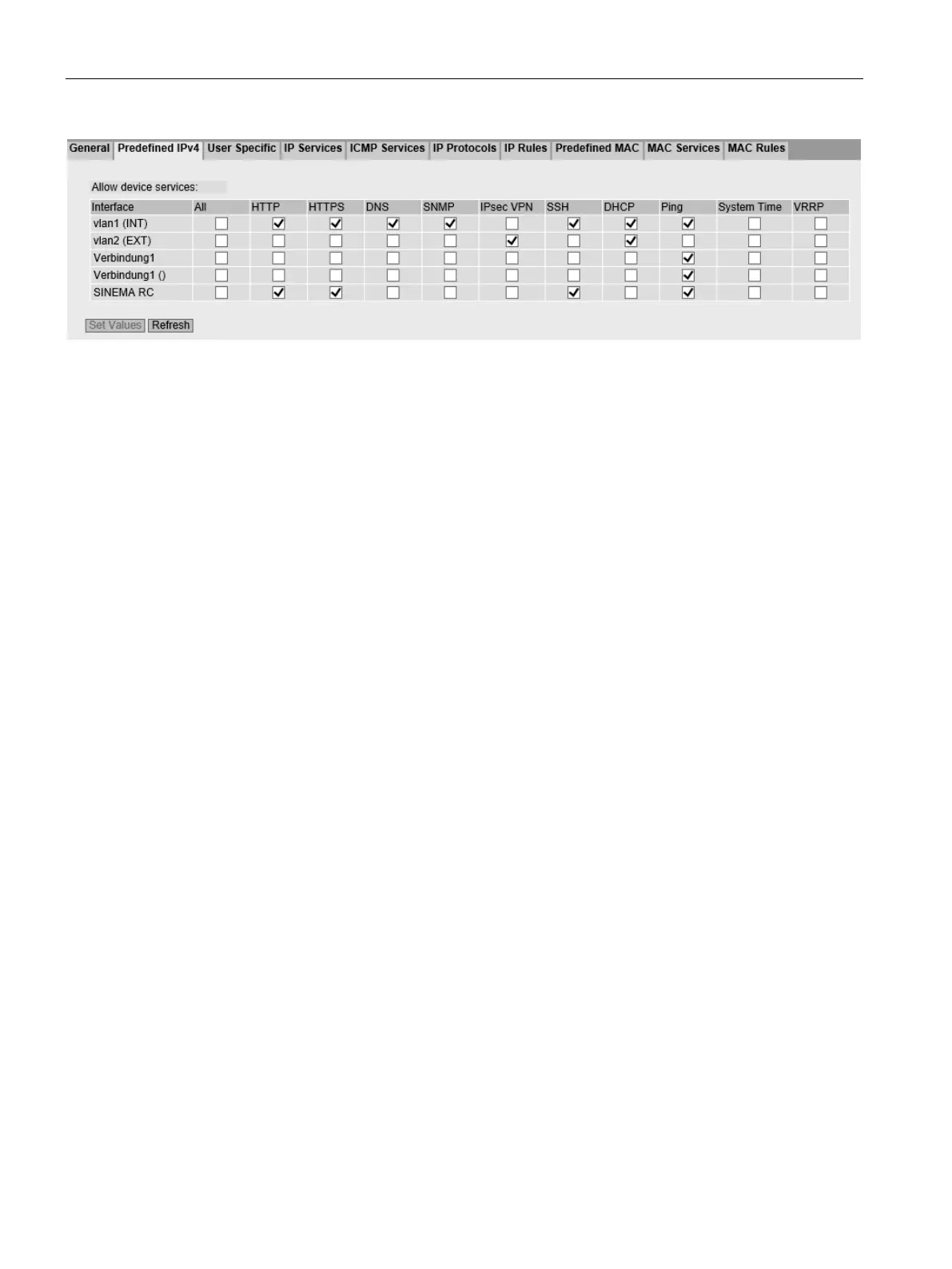

Description
• Interface
Interface to which the setting relates. The list of interfaces/subnets is dynamic and is
based on the settings from "Layer 3 > Subnets".
– VLANx: Allows access from the IP subnet to the device. VLANs with configured IP
subnet are available.
– SINEMARC: Allows access from the SINEMA RC server to the device.
– IPsec: Allows IKE (Internet Key Exchange) data traffic from the external network to
the device.
• Access over the firewall is permitted to the following IPv4 services of the device:
– All
All predefined IPv4 services.
– HTTP
For access to Web Based Management.
– HTTPS
For secure access to Web Based Management.
