Modules
4.4Installing/Removing Power Modules
Installing a Power Module
To install a power module, do the following:
1. If equipped, remove the existing module.
2. If applicable, connect the supplied terminal block to the module or connect the
terminal block from the previous module.
3. Confirm or connect the wiring from the power supply to the module. For more
information, refer to "Connecting Power (Page 10)".
4. Insert the module into the empty slot.
1
Chassis
2
Power Module
3
Screws

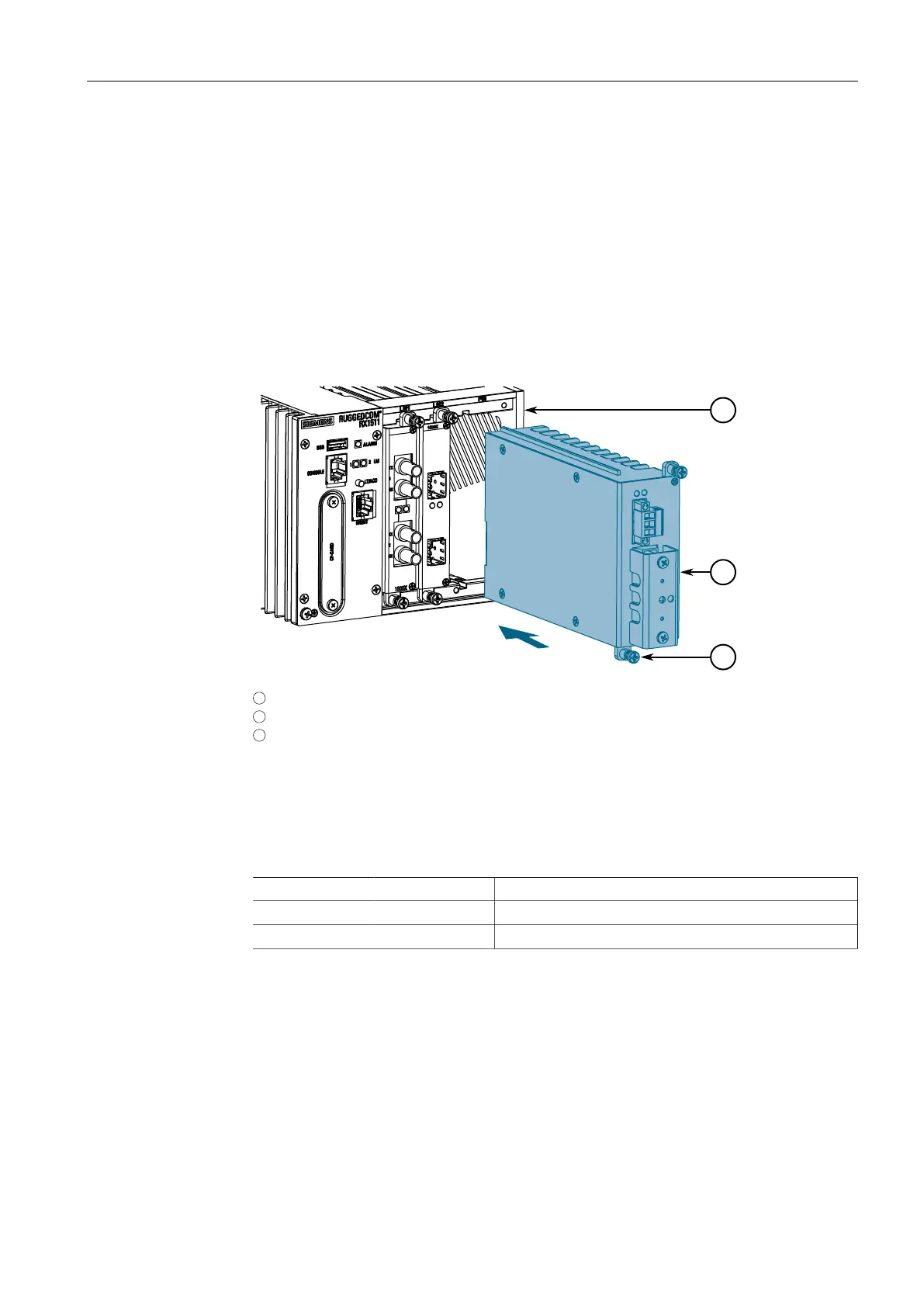

Figure4.6 Installing a Power Module
5. Hand-tighten the screws to secure the power module to the chassis.
6. Turn on power to the device and confirm the module is receiving and supplying
power. This is indicated by the LEDs on the module.
LED State Description
O Green The module is supplying power
I Green The module is receiving power
44
RUGGEDCOM RX1511
Installation Manual, 04/2021, C79000-G8976-1056-20
