Installing the Device
2.3.2Mounting the Device to a Panel
To mount the device to a DIN rail, do the following:
1. Align the adapters with the DIN rails and slide the device into place.
1
2
3
1
2
1
Panel/DIN Rail Adapter
2
DIN Rail
3
Screw

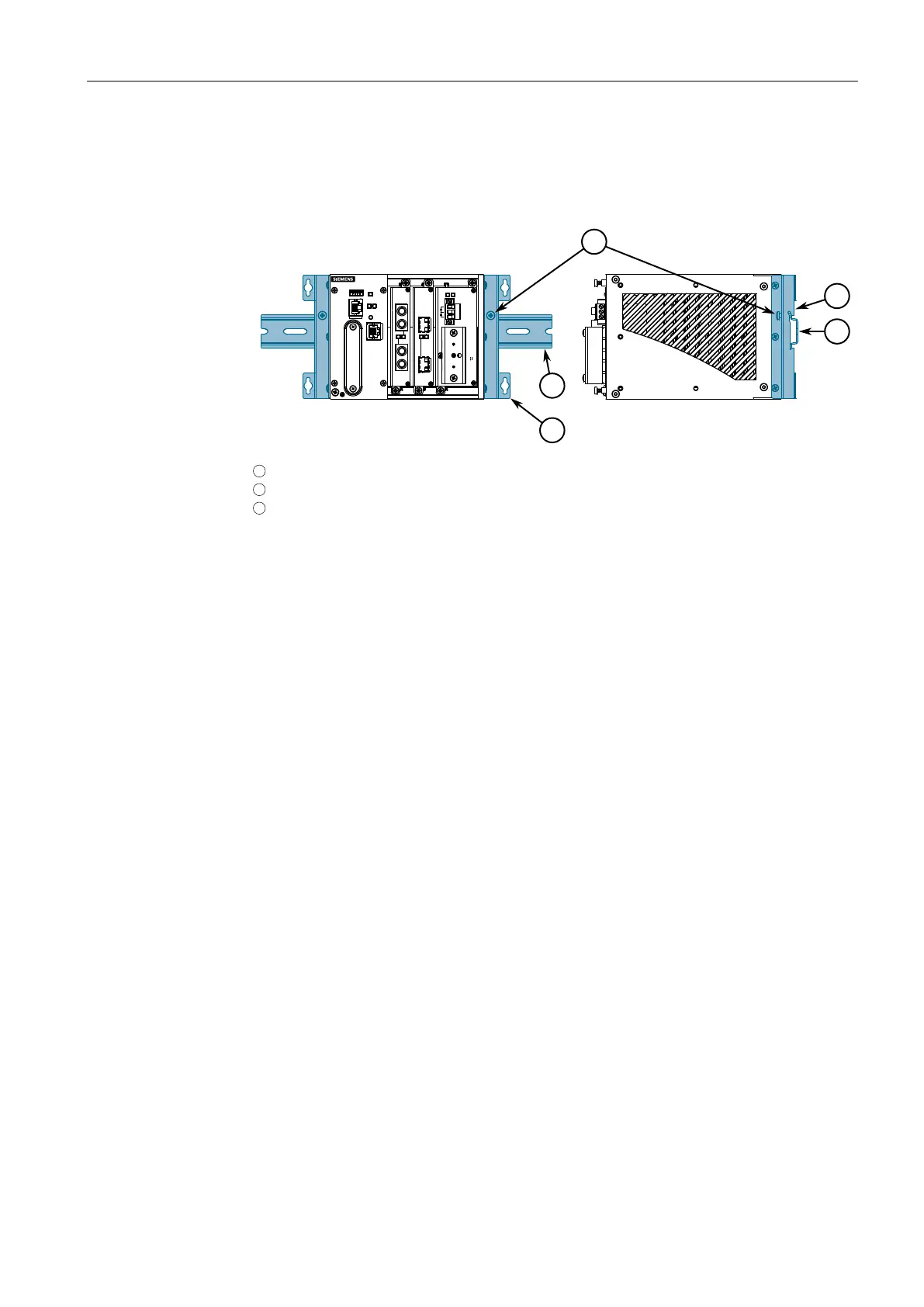

Figure2.1 DIN Rail Mounting
2. Install one of the supplied screws on either side of the device to secure the
adapters to the DIN rails.
2.3.2 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RX1511 can be equipped with panel/DIN rail
adapters pre-installed on each side of the chassis. The adapters allow the device to
be attached to a panel using screws.
8
RUGGEDCOM RX1511
Installation Manual, 04/2021, C79000-G8976-1056-20
