Siemens SIMATIC RF300 - Permissible Directions of Motion of the Transponder

RF300 system planning
4.1 Fundamentals of application planning
SIMATIC RF300
4-6 System Manual, Release 04/2006, J31069 D0166-U001-A2-7618
4.1.5 Permissible directions of motion of the transponder
Active area and direction of motion of the transponder
The transponder and reader have no polarization axis, i.e. the transponder can come in from
any direction, be placed at any position, and cross the transmission window. The figure
below shows the active area for various directions of transponder motion:
RU
/
%
RU
%
%
/
/

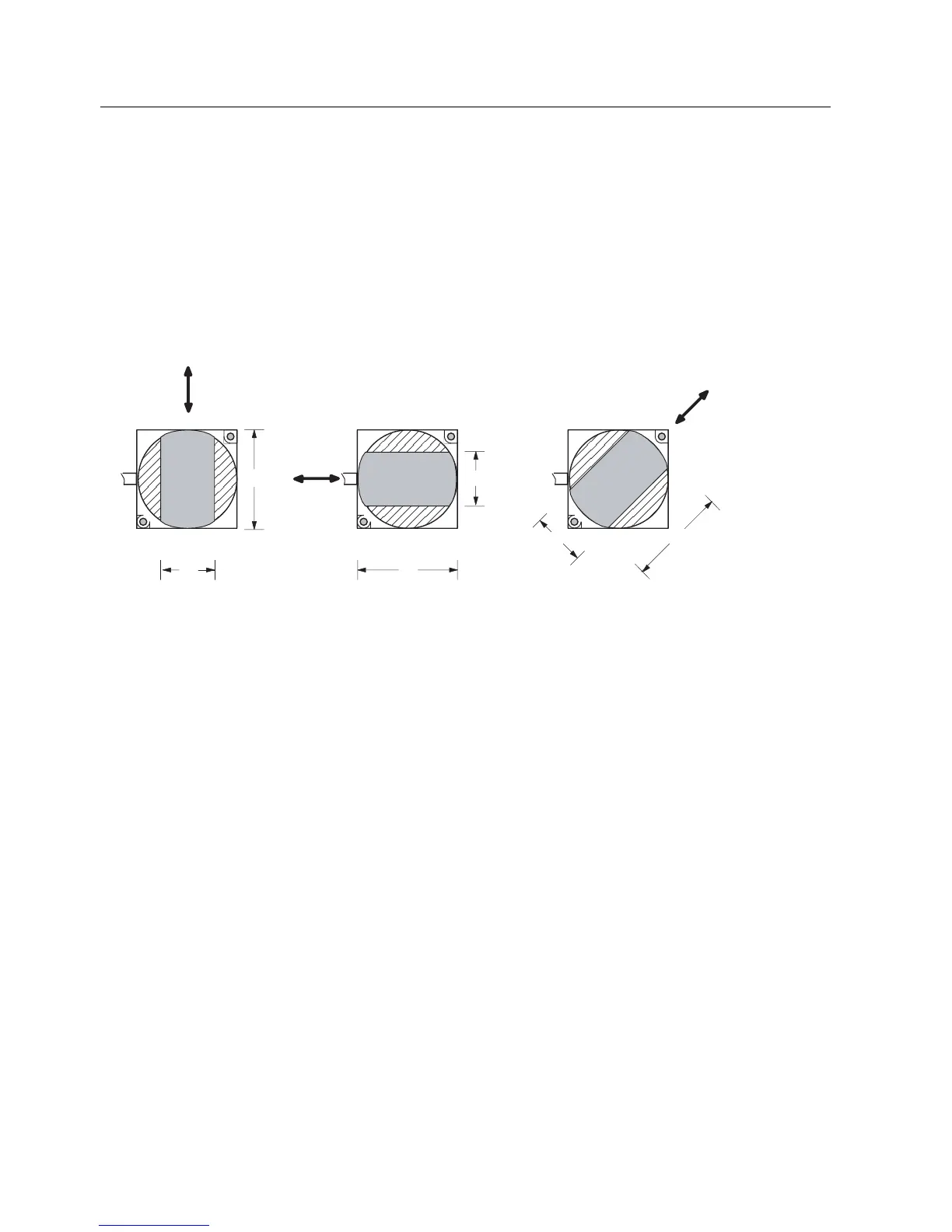

Figure 4-1 Active areas of the transponder for different directions of transponder motion
