RF300 system planning
4.2 Field data for transponders, readers and antennas
SIMATIC RF300
4-16 System Manual, Release 04/2006, J31069 D0166-U001-A2-7618
4.2 4.2 Field data for transponders, readers and antennas
The following table shows the field data for all SIMATIC RF300 components of transponders
and readers. It facilitates the correct selection of a transponder and reader.
All the technical data listed are typical data and are applicable for an ambient temperature of
between 0 C and +50 °C, a supply voltage of between 22 V and 27 V DC and a metal-free
environment. Tolerances of ±20 % are admissible due to production or temperature
conditions.
If the entire voltage range at the reader of 20 V DC to 30 V DC and/or the entire temperature
range of transponders and readers is used, the field data are subject to further tolerances.

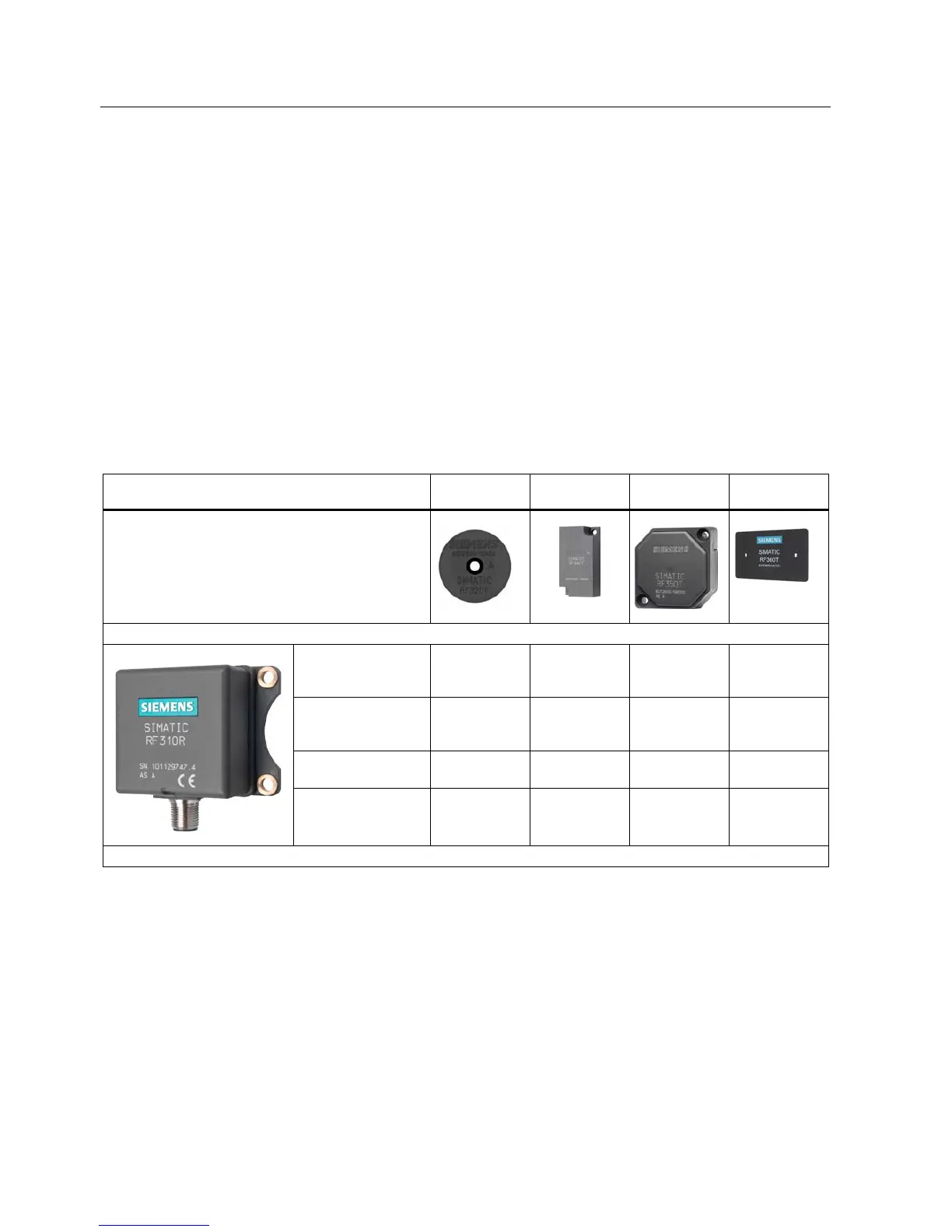

Field data of all transponders and readers without interference from metal
Reader Transponder
RF320T
Transponder
RF340T
Transponder
RF350T
Transponder
RF360T
Length of the
transmission window
(L)
30 mm 38 mm 45 mm 45 mm
Width of the
transmission window
(W)
12 mm 15 mm 18 mm 18 mm
Operating distance
(S
a
)
1- 10 mm 1 - 20 mm 2 - 22 mm 2 - 26 mm
Reader RF310R
Limit distance (S
g
) 16 mm 26 mm 30 mm 35 mm
