RF300 system planning
4.3 Relationship between the volume of data and the transponder speed
SIMATIC RF300
System Manual, Release 04/2006, J31069 D0166-U001-A2-7618
4-19
4.3 4.3 Relationship between the volume of data and the transponder speed
4.3.1 RF310R with IQ-Sense
The curves shown here show the relationship between the speed of the RF320T and
RF340T transponders and the volume of data transferred.

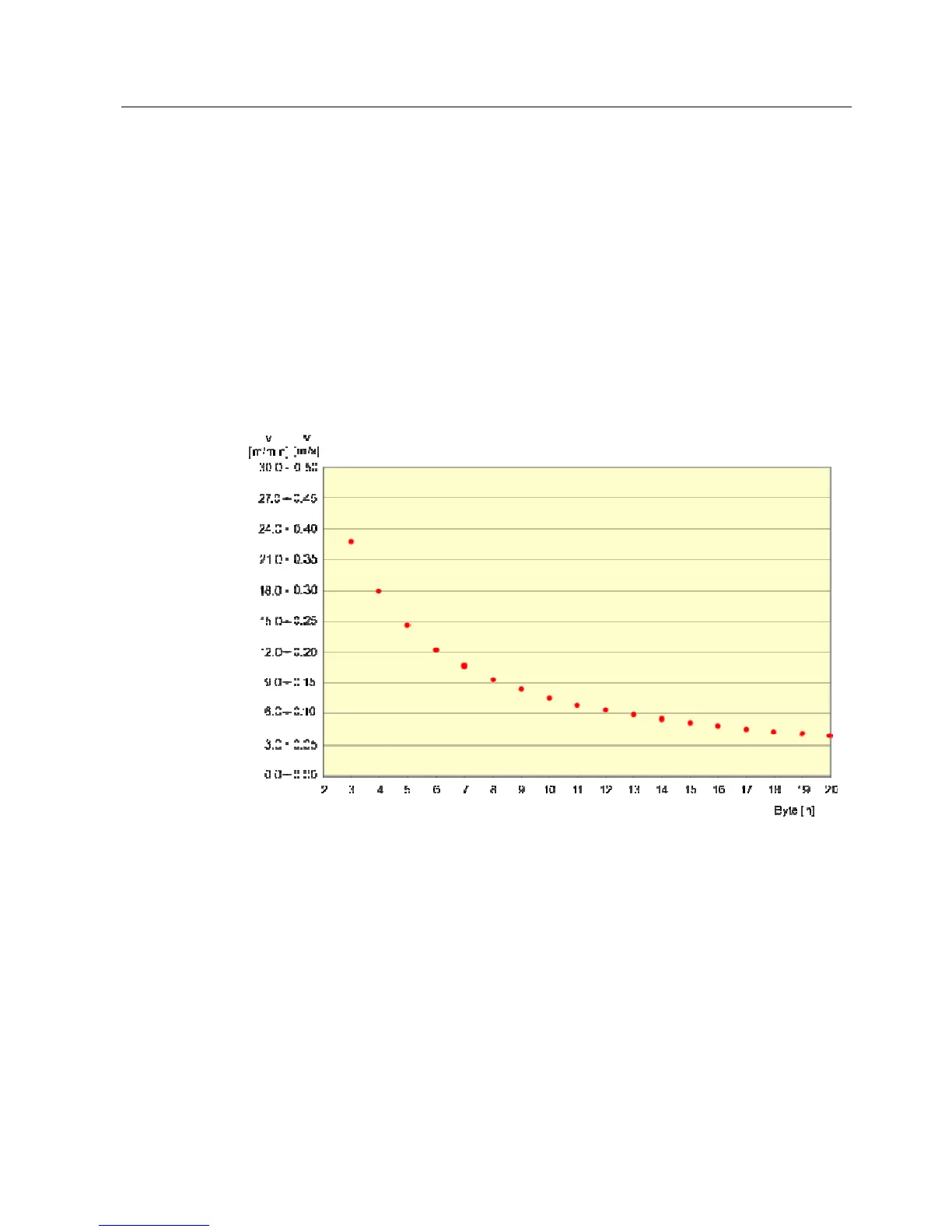

Figure 4-8 Relationship between speed and volume of data when using the RF310R (IQ-Sense)
