RF300 system planning
4.3 Relationship between the volume of data and the transponder speed
SIMATIC RF300
System Manual, Release 04/2006, J31069 D0166-U001-A2-7618
4-23
4.3.3 RF340R
The curves shown here show the relationship between the speed of the RF320T, RF340T,
RF350T and RF360T transponders and the RF340R reader and the corresponding volume
of data.
They should make it easier to preselect the transponders for dynamic use.
The following table is used to calculate the curves.
The indicated speeds are applicable for operation without presence check.
RF320T RF340T RF350T RF360T
Length of the transmission window (L) 30 mm 38 mm 45 mm 45 mm
Working distance (Sa) 10 mm 20 mm 22 mm 26 mm

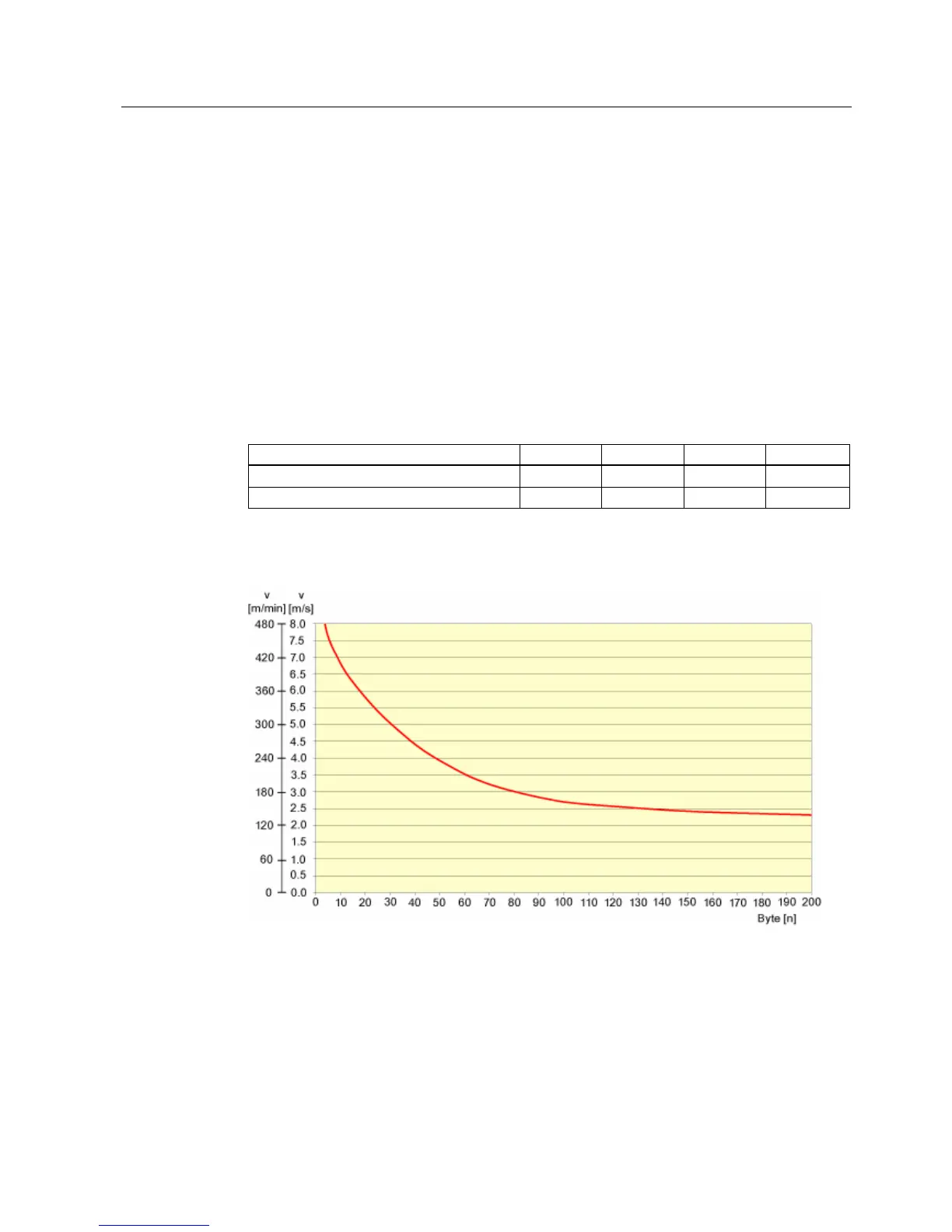

Figure 4-13 Relationship between speed and volume of data (reading/writing from FRAM) in dynamic
operation when using the RF340R and RF320T
