4.1.9 Calculation example (IQ-Sense)
A transport system moves pallets with transponders at a maximum velocity of V
TPDR
= 0.14
m/s. The following RFID components were chosen:
• 8xIQ-Sense module
• Reader RF310R
• Transponder RF340T
Task specification
a) The designer of the plant is to be given mechanical specifications.
b) The programmer should be given the maximum number of words in dynamic mode.
Refer to the tables in the "Field data of transponders and readers" section for the technical
data.

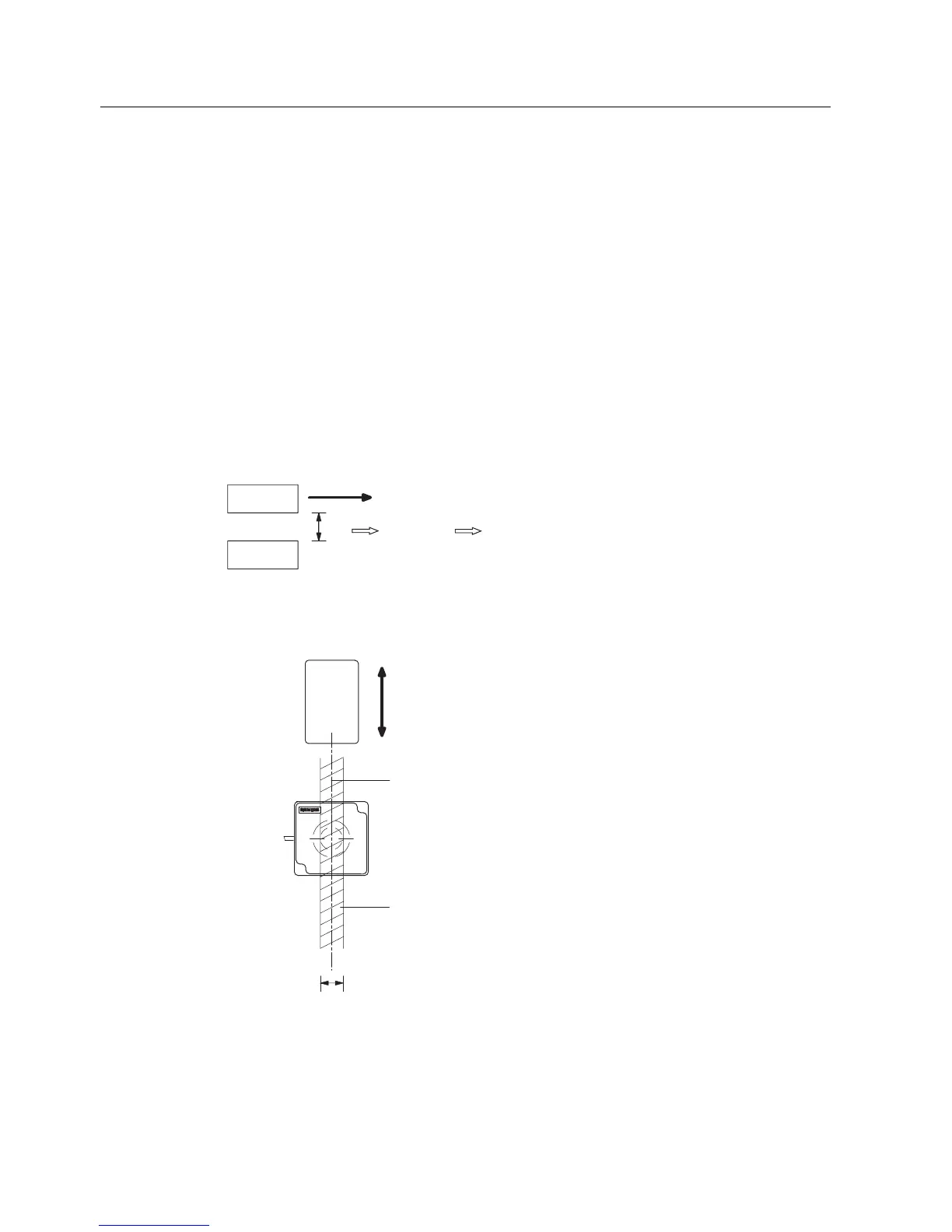

Determine tolerance of pallet transport height
'LUHFWLRQRIPRWLRQ
7UDQVSRQGHU
VLGHYLHZ
+
+6
D
+PP
5HDGHUV
Figure 4-4 Tolerance of pallet transport height
Determine tolerance of pallet side transport
&HQWHUOLQHRIWUDQVSRQGHUDQGUHDGHU
'LUHFWLRQRIPRWLRQRIWKHWUDQVSRQGHU
% ZLGWKRIWKHWUDQVPLVVLRQZLQGRZ
LQG\QDPLFPRGH
%
7ROHUDQFHEDQGRIVLGHWUDQVSRUW
7UDQVSRQGHU
5HDGHUV
Figure 4-5 Tolerance of pallet side transport
