RF300 system planning

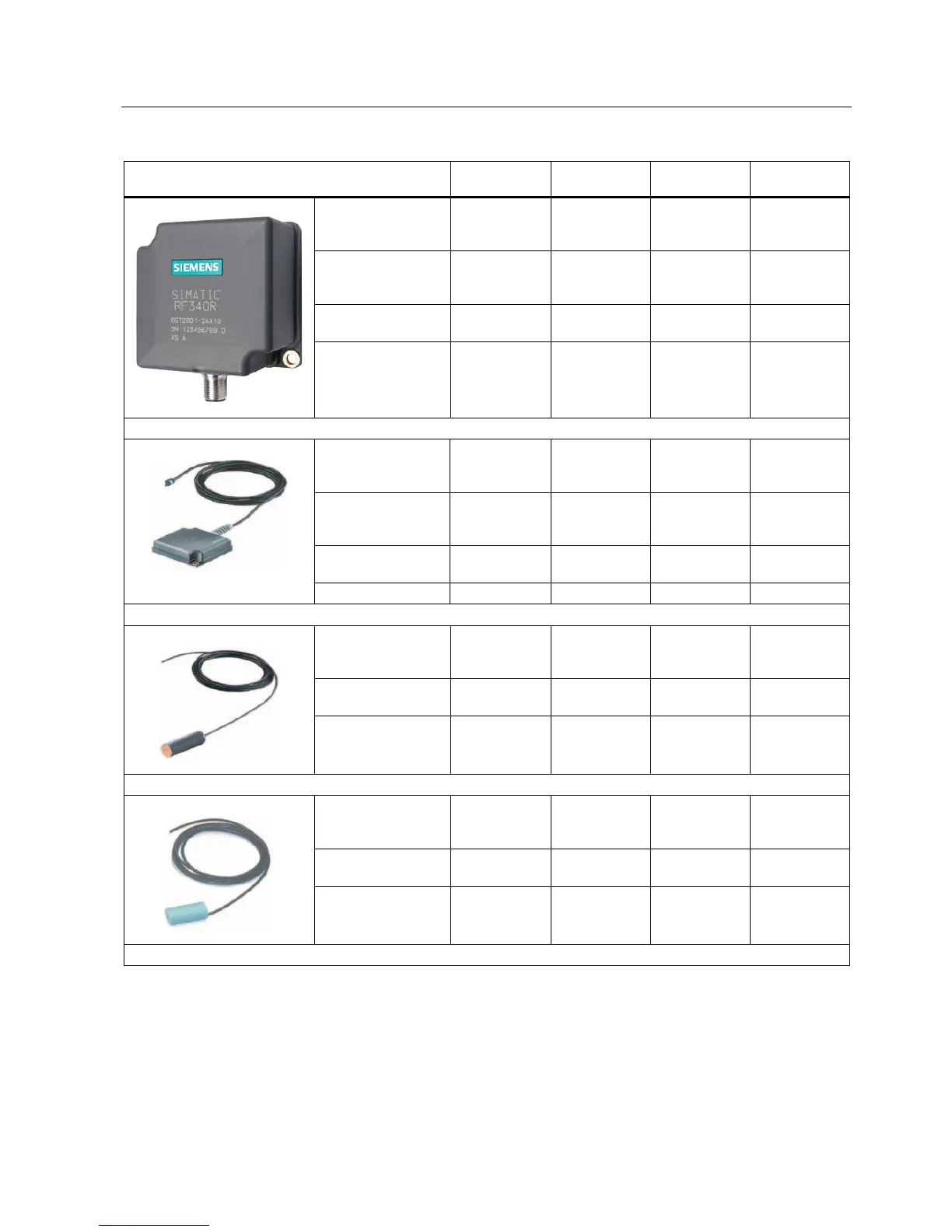

4.2 Field data for transponders, readers and antennas
SIMATIC RF300
System Manual, Release 04/2006, J31069 D0166-U001-A2-7618
4-17
Reader Transponder
RF320T
Transponder
RF340T
Transponder
RF350T
Transponder
RF360T
Length of the
transmission window
(L)
45 mm 60 mm 60 mm 70 mm
Width of the
transmission window
(W)
18 mm 24 mm 24 mm 28 mm
Operating distance
(S
a
)
1- 20 mm 2- 25 mm 5- 35 mm 8- 40 mm
Reader RF340R
Limit distance (S
g
) 25 mm 35 mm 50 mm 60 mm
Length of the
transmission window
(L)
45 mm 60 mm 60 mm 70 mm
Width of the
transmission window
(W)
18 mm 24 mm 24 mm 28 mm
Operating distance
(S
a
)
1- 20 mm 2- 25 mm 5- 35 mm 8- 40 mm
Antenna RF350R / ANT1
Limit distance (Sg) 25 mm 35 mm 50 mm 60 mm
Diameter of the
transmission window
(L
d
)
10 mm 20 mm -
(1)
-
(1)
Operating distance
(S
a
)
1- 8 mm 1- 10 mm -
(1)
-
(1)
Antenna RF350R / ANT18
Limit distance (S
g
) 10 mm 13 mm -
(1)
-
(1)
Diameter of the
transmission window
(L
d
)
15 mm 25 mm 25 mm -
(1)
Operating distance
(S
a
)
0- 11 mm 0- 15 mm 0- 16 mm -
(1)
Antenna RF350R / ANT30
Limit distance (S
g
) 15 mm 20 mm 22 mm -
(1)
-
(1)
: not enabled
• A maximum mean deviation of ±2 mm is possible in static mode (without affecting the
field data)
• This is reduced by approx. 15 % if the transponder enters the transmission window
laterally (see also "Transmission window" figure)
