5.3 SIMATIC RF615R
SIMATIC RF600
124 System Manual, 06/2019, J31069-D0171-U001-A22-7618
5
5.3 SIMATIC RF615R
5.3.1 Description
5.3.1.1 Overview
The SIMATIC RF615R is a stationary reader in the UHF frequency band with an integrated
antenna. An external UHF RFID antenna can be connected via an RP-TNC connector.
The maximum transmit power is 400 mW, the radiant power of the internal antenna is 200 or
250 mW ERP / 400 mW EIRP. A radiated power of up to 1000 mW ERP / 100 mW EIRP is
achieved when the appropriate antennas and antenna cables are used. The interfaces
(Ethernet, power supply, DI/DQ interface) are located on the lower front edge. These
interfaces can be used to connect the reader to the power supply, to a digital input/output,
and to a PC for parameter assignment.
The degree of protection is IP67.

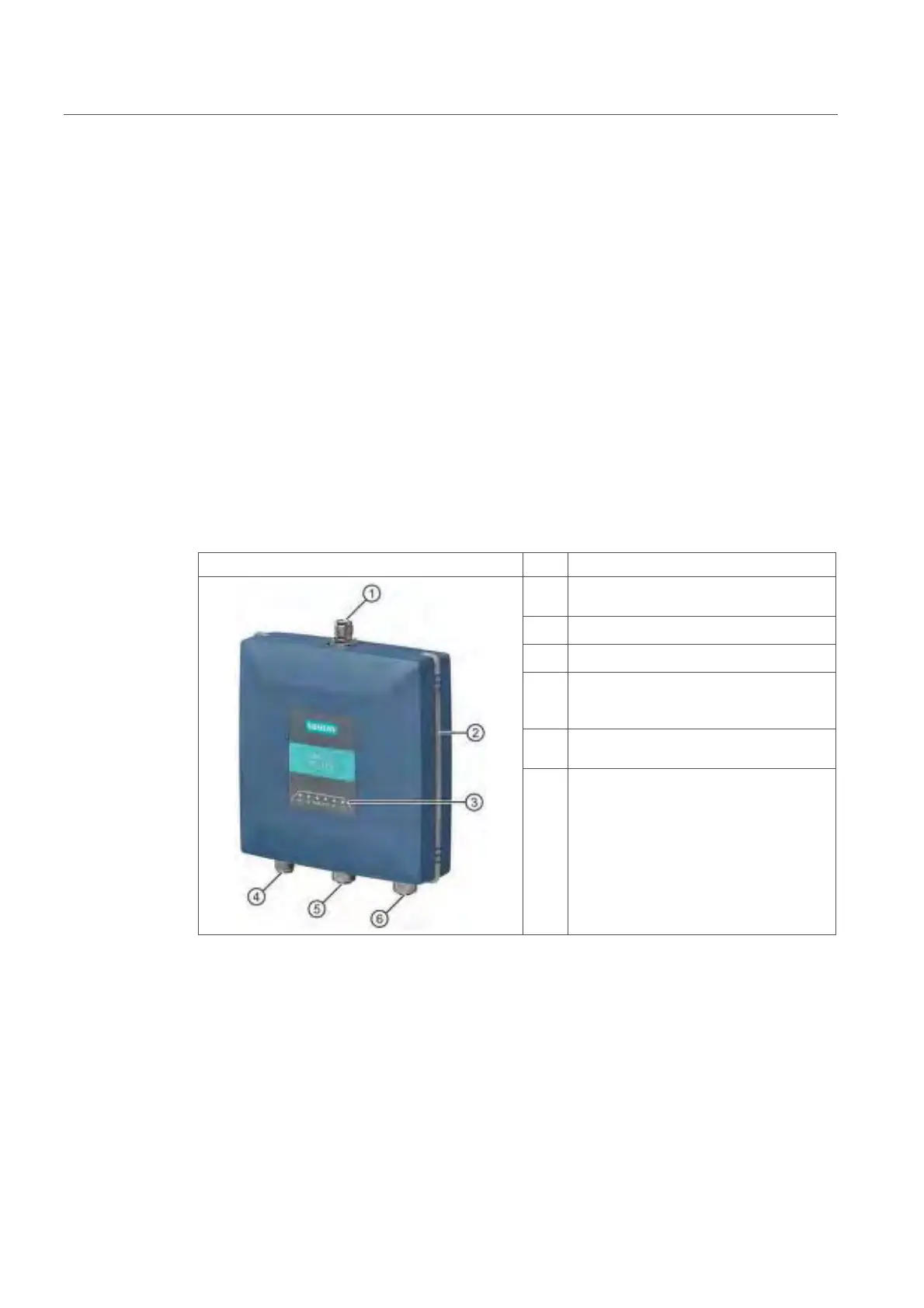

Pos.
Description
཰
RP-TNC interface
for connection of an external antenna
ཱ
"PRESENCE" LED (PRE)
ི
LED operating display
ཱི
Interface to power supply (RS422), 24 V
DC
1)
: X80 DC24V
(M12, 8-pin)
ུ
DI/DQ interface: X10 DI/DQ
(M12, 5-pin)
ཱུ
Ethernet interface, TCP/IP: X1 P1
(M12, 4-pin)
1
) Connection of the readers to the ASM 456 communications module via the RS-422 interface.
