Transponder
7.7 SIMATIC RF620T
SIMATIC RF600
404 System Manual, 06/2019, J31069-D0171-U001-A22-7618
7
7.7.5 Dimension drawing

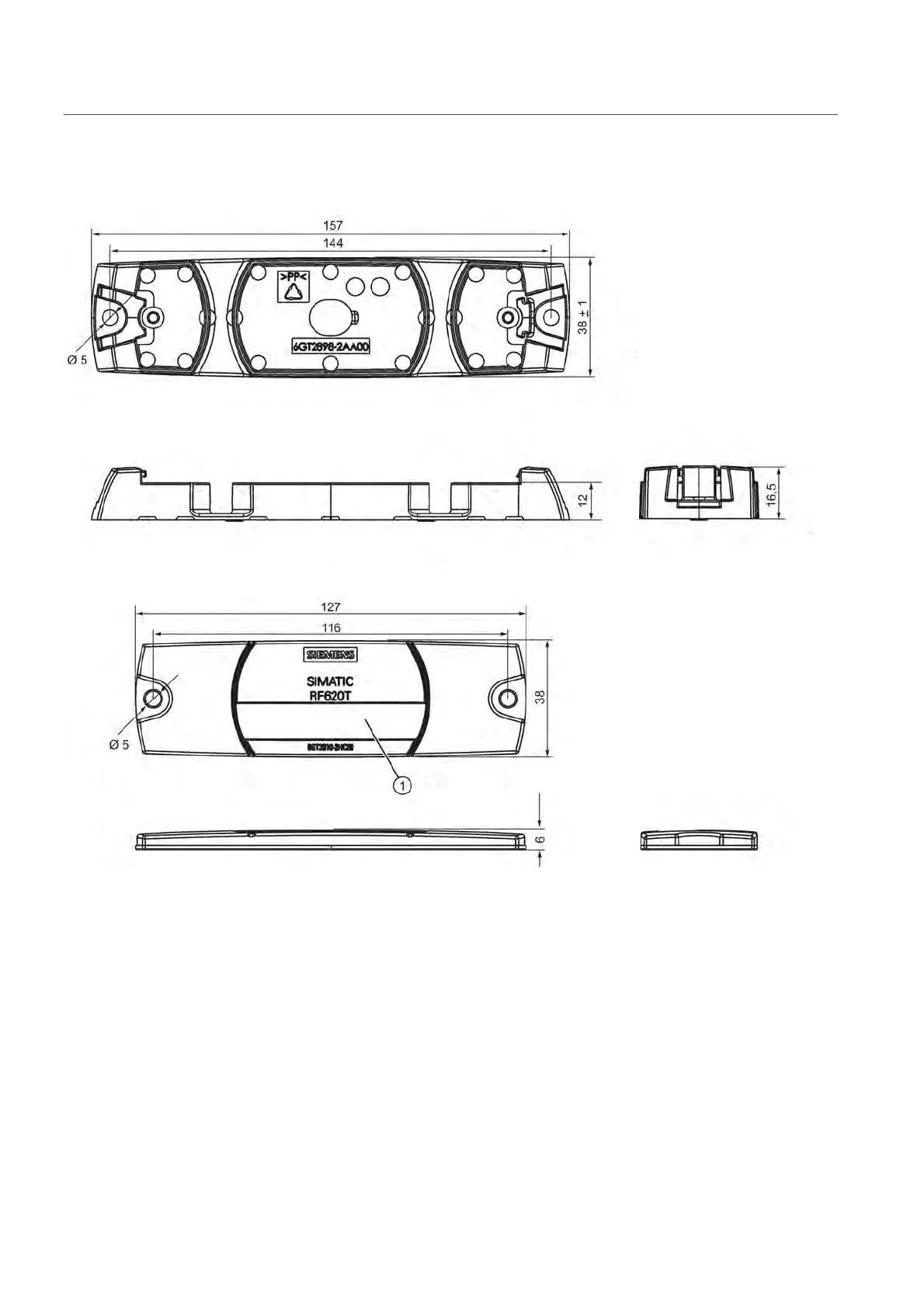

Figure 7-18 SIMATIC RF620T UHF container tag
Units of measurement: All dimensions in mm
Tolerances, unless indicated otherwise, are +-0.5 mm.
཰ Labeling area, see Section Characteristics (Page 399)
