Accessories
10.1 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF600
488 System Manual, 06/2019, J31069-D0171-U001-A22-7618
1

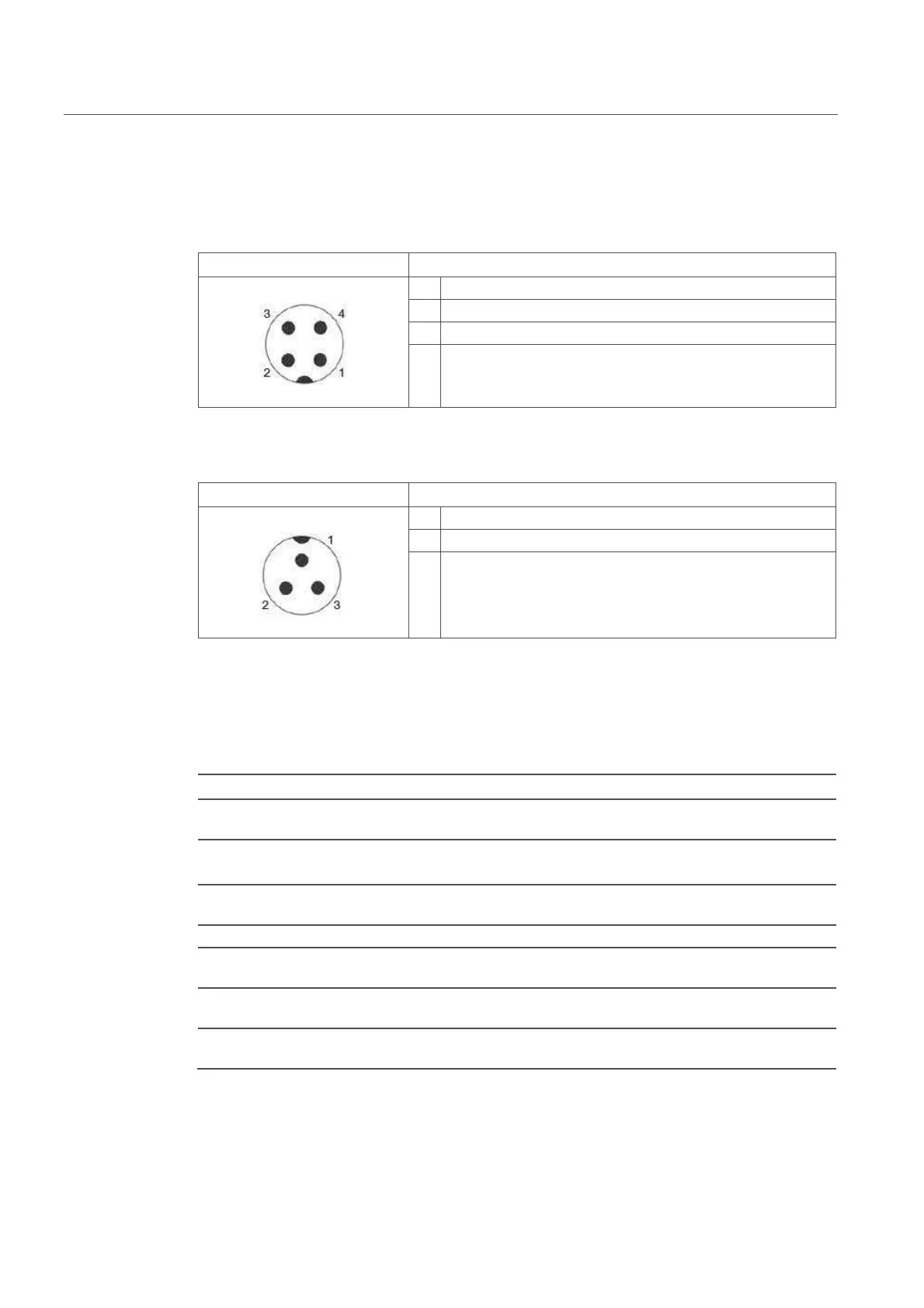

10.1.6 Pin assignment of DC outputs and mains connection
Table 10- 4 Pin assignment of the DC outputs
Assignment
1
Ground (0 V)
2 +24 VDC
3
+24 VDC
4 Ground (0 V)
Table 10- 5 Pin assignment of the mains connector
Assignment
1
PE
2 L (100 … 240 VAC)
3 N (100 … 240 VAC)
10.1.7 Technical specifications
Table 10- 6 Technical specifications
6GT2898
-
-0ACx0
Product type designation Wide-range power supply unit for SIMATIC RF
systems
Electrical data
Insulation strength (prim./sec.) U
isol p/s
AC 3.3 kV
Primary- secondary side are galvanically isolated
Insulation resistance R
ins
> 1 G
˖
Leakage current I
leak
< 200 µA
at U
in
= 230 VAC, f = 50 Hz
Mains buffering t
h
ุ 50 ms
at U
in
= 230 VAC
Power supply unit classification Level 3
acc. to CSA
