Transponder

7.11 SIMATIC RF645T

SIMATIC RF600

438 System Manual, 06/2019, J31069-D0171-U001-A22-7618

7.11.4 Dimension drawing

All dimensions in mm

SIMATIC RF645T

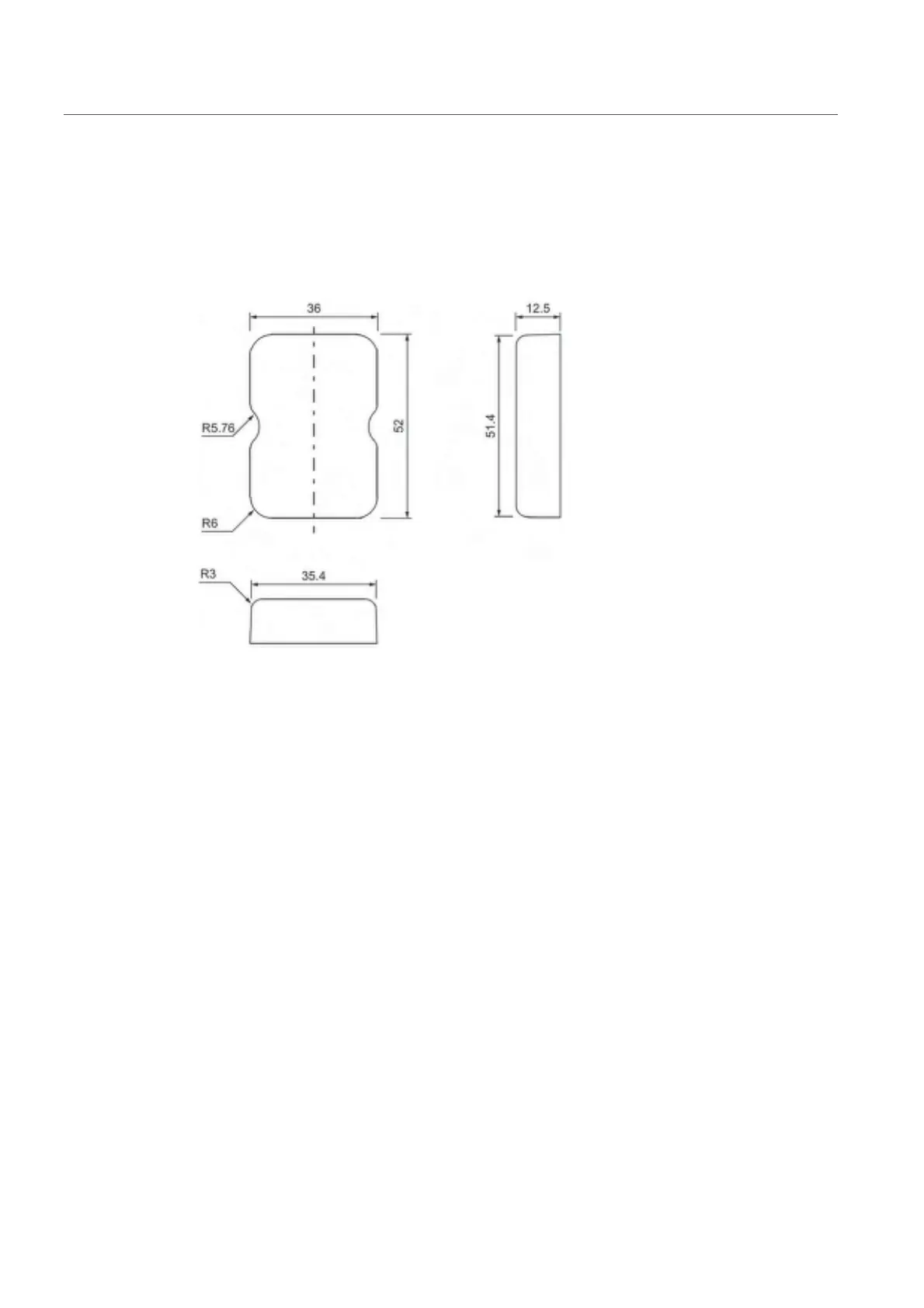

Figure 7-31 Dimension drawing of SIMATIC RF645T
