4.3.5 Reciprocal influence of read points
Antenna alignment and resulting antenna spacing
The minimum distance required between antennas that use the same frequency and that are
connected to different readers depends on the maximum transmit power set and the antenna
alignment. The following minimum distances apply with maximum transmit power.
A Back to back
B Pointing at each other
C Next to each other

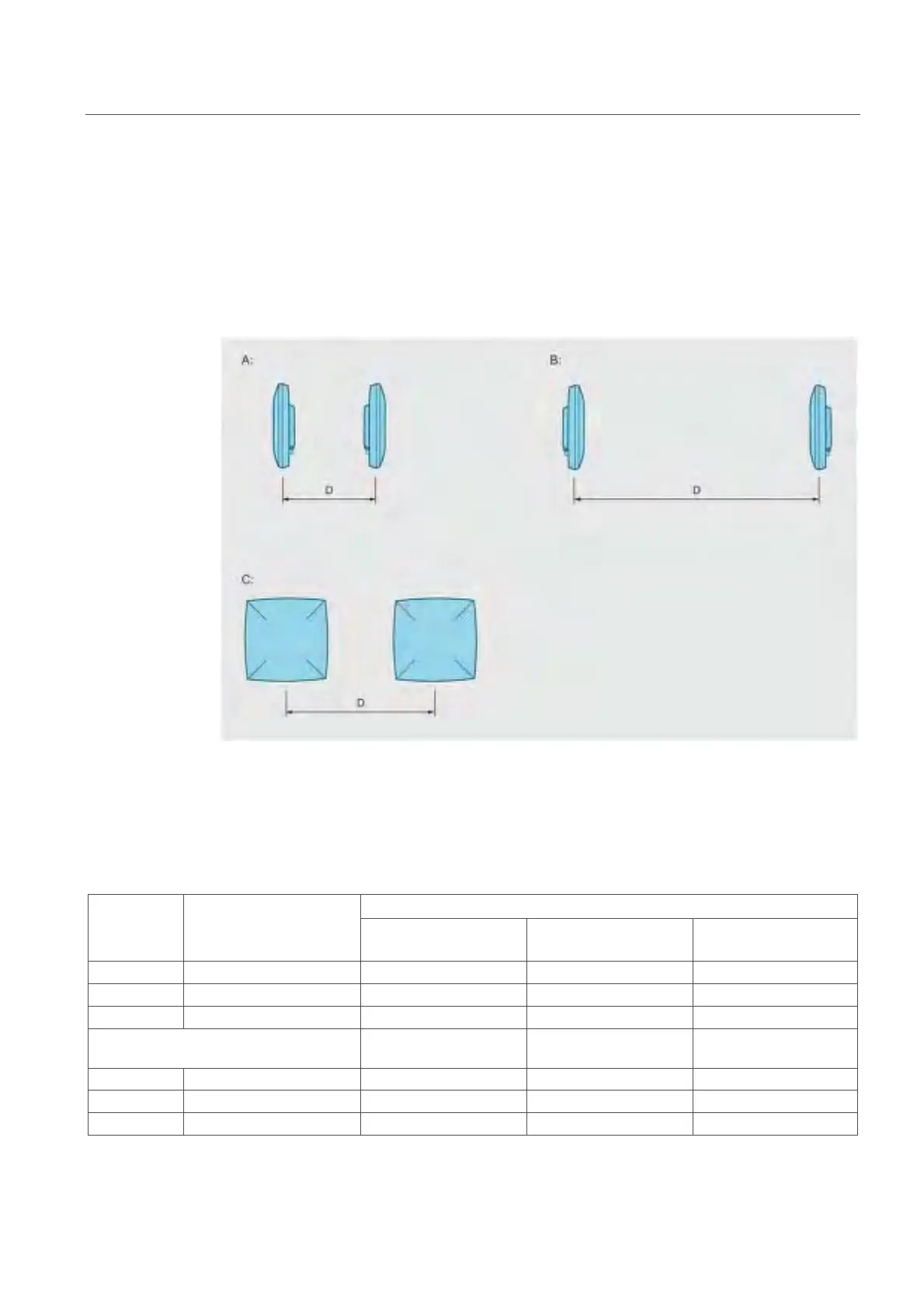

Figure 4-8 Antenna spacing for different readers/antennas and identical frequencies
Table 4- 1 Antenna alignment and minimum antenna spacing
Antenna
c
configuration
Antenna alignment
Minimum distance (D)
RF610R/RF615R
w
with internal antenna
R
F
F685R
with internal antenna
RF600 reader
w
with RF615A/RF620A
A
Back to back
1.0 m
0.3 m
1.0 m
B
Pointing at each other
2.0 m
2.0 m
2.0 m
C
Next to each other
1.0 m
0.5 m
1.0 m
RF600 reader
w
with RF640A/RF642A
RF600 reader
w
with RF650A/RF680A
RF600 readeer
with RF660A
A
Back to back
1.0 m
0.3 m
0.5 m
B
Pointing at each other
2.0 m
2.0 m
2.0 m
C Next to each other 2.0 m 0.5 m 0.8 m
