Transponder

7.10 SIMATIC RF640T

SIMATIC RF600

System Manual, 06/2019, J31069-D0171-U001-A22-7618

433

7.10.5 Dimension drawing

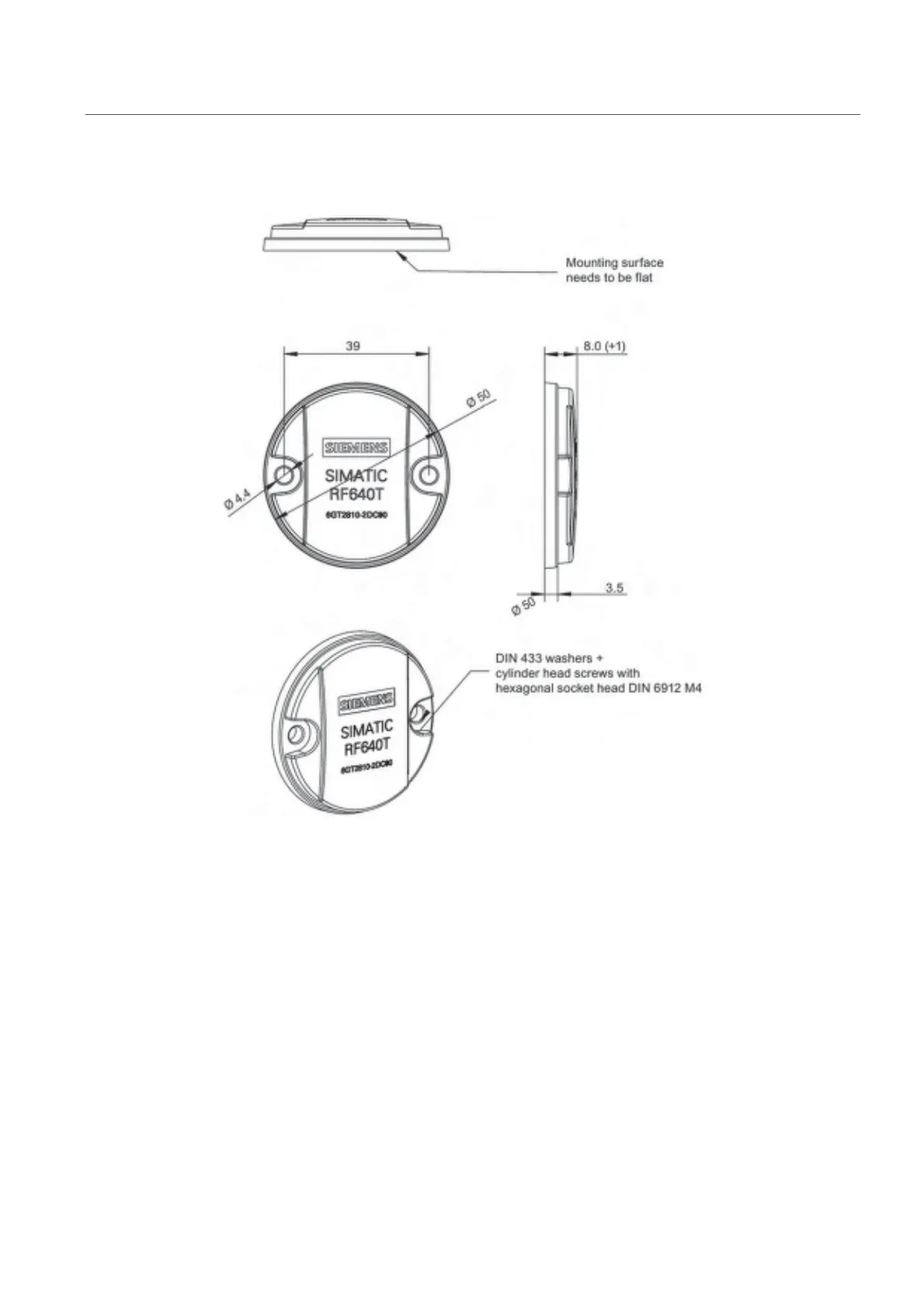

Figure 7-30 SIMATIC RF640T

Units of measure: All dimensions in mm
