Antennas

6.2 SIMATIC RF615A

SIMATIC RF600

System Manual, 06/2019, J31069-D0171-U001-A22-7618

243

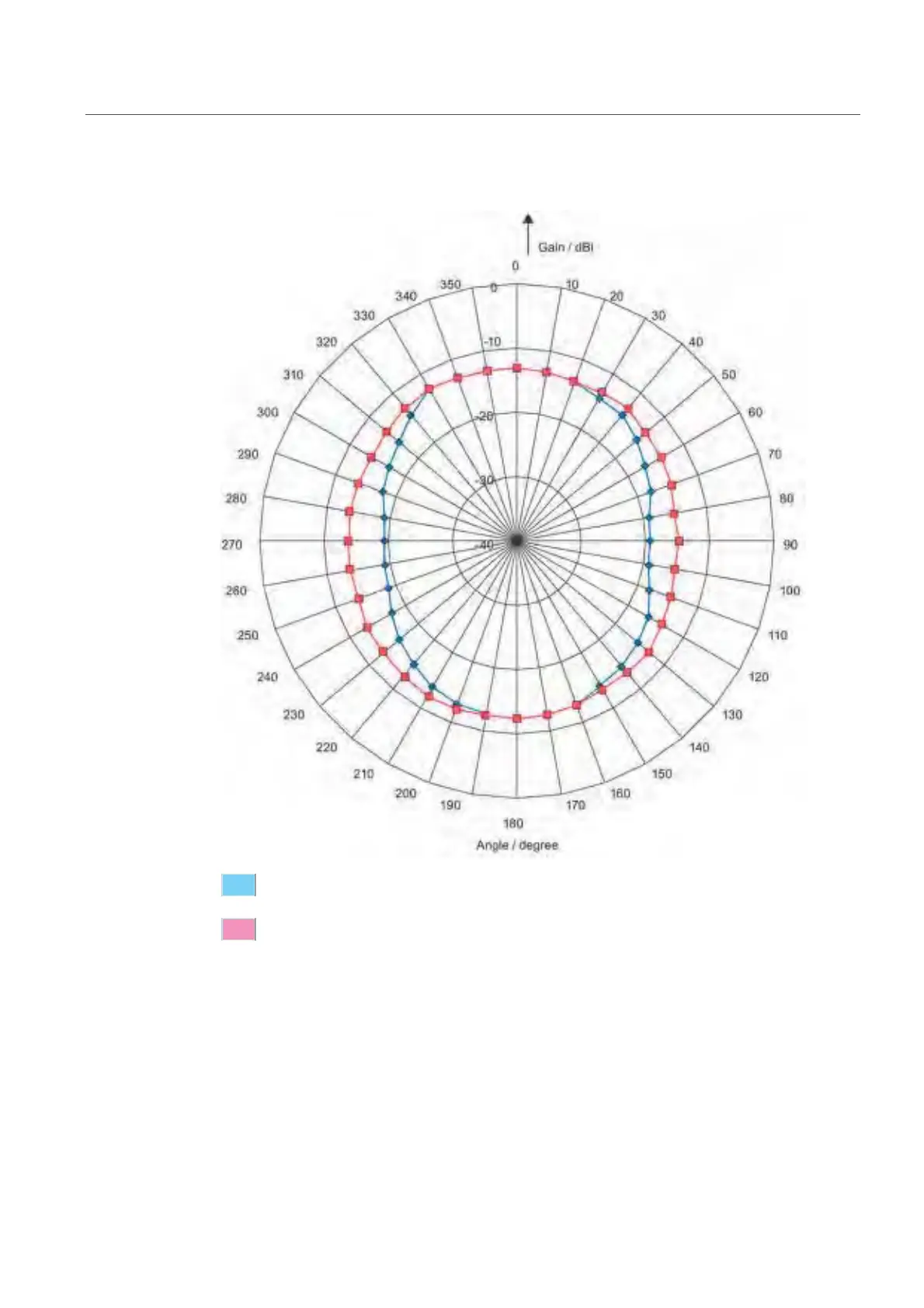

Directional radiation pattern ETSI on non-metallic mounting surface

Pattern of the vertical plane of the antenna

Pattern of the horizontal plane of the antenna

Figure 6-7 Directional radiation pattern RF615A ETSI on non-metallic mounting surface
