Antennas

6.6 SIMATIC RF650A

SIMATIC RF600

320 System Manual, 06/2019, J31069-D0171-U001-A22-7618

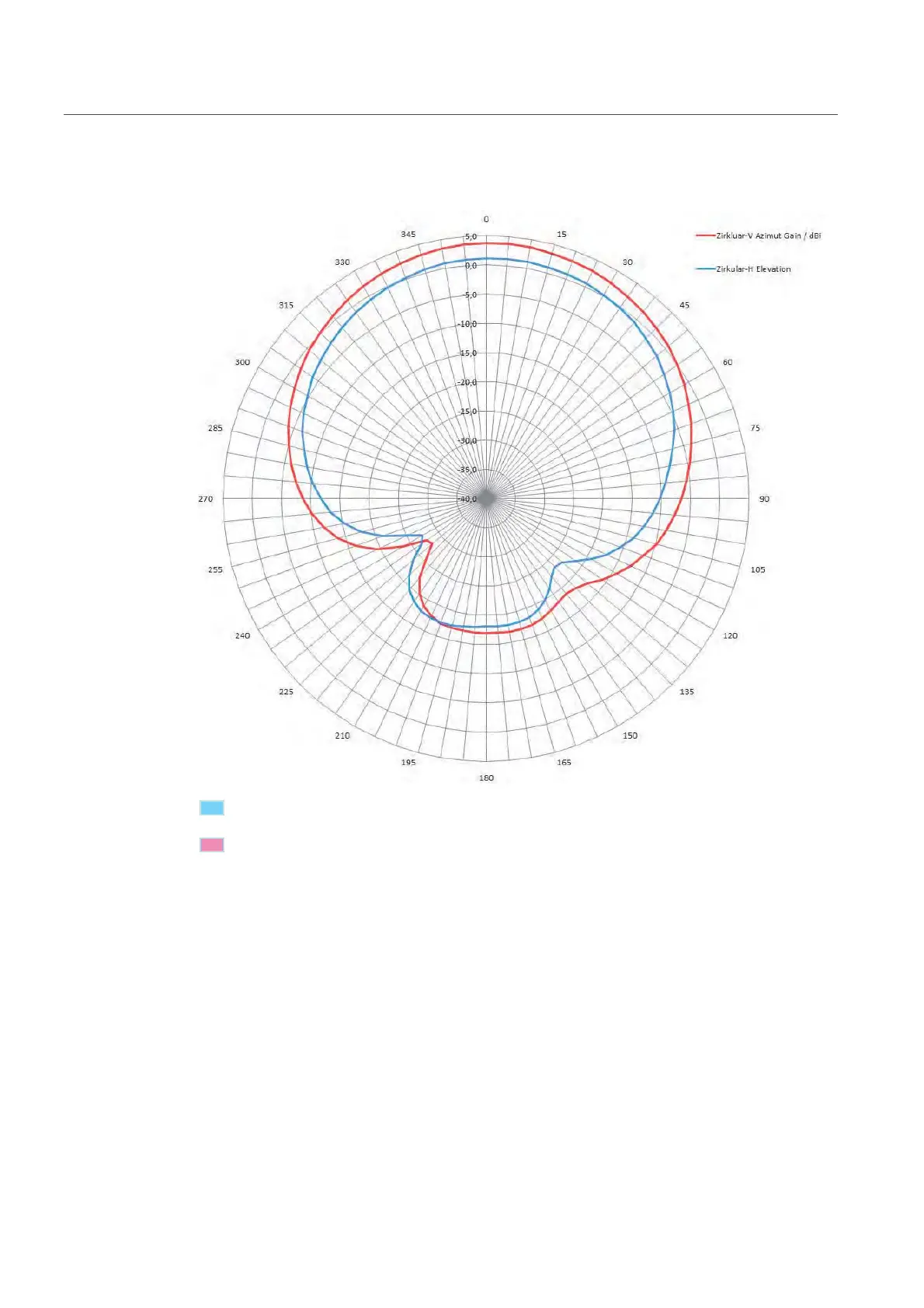

Radiation diagram (circular) in the FCC frequency band

Pattern of the vertical plane of the antenna

Pattern of the horizontal plane of the antenna

Figure 6-45 Directional radiation pattern of the RF650A in the FCC frequency band
