RF600 system planning
4.2 Possible system configurations
SIMATIC RF600
System Manual, 06/2019, J31069-D0171-U001-A22-7618
35
I
Intralogistics (separator)
Trigger by light barrier on DI ི Separator setting by means of DQ
ཱ Distributed small gate ཱི Individual read point

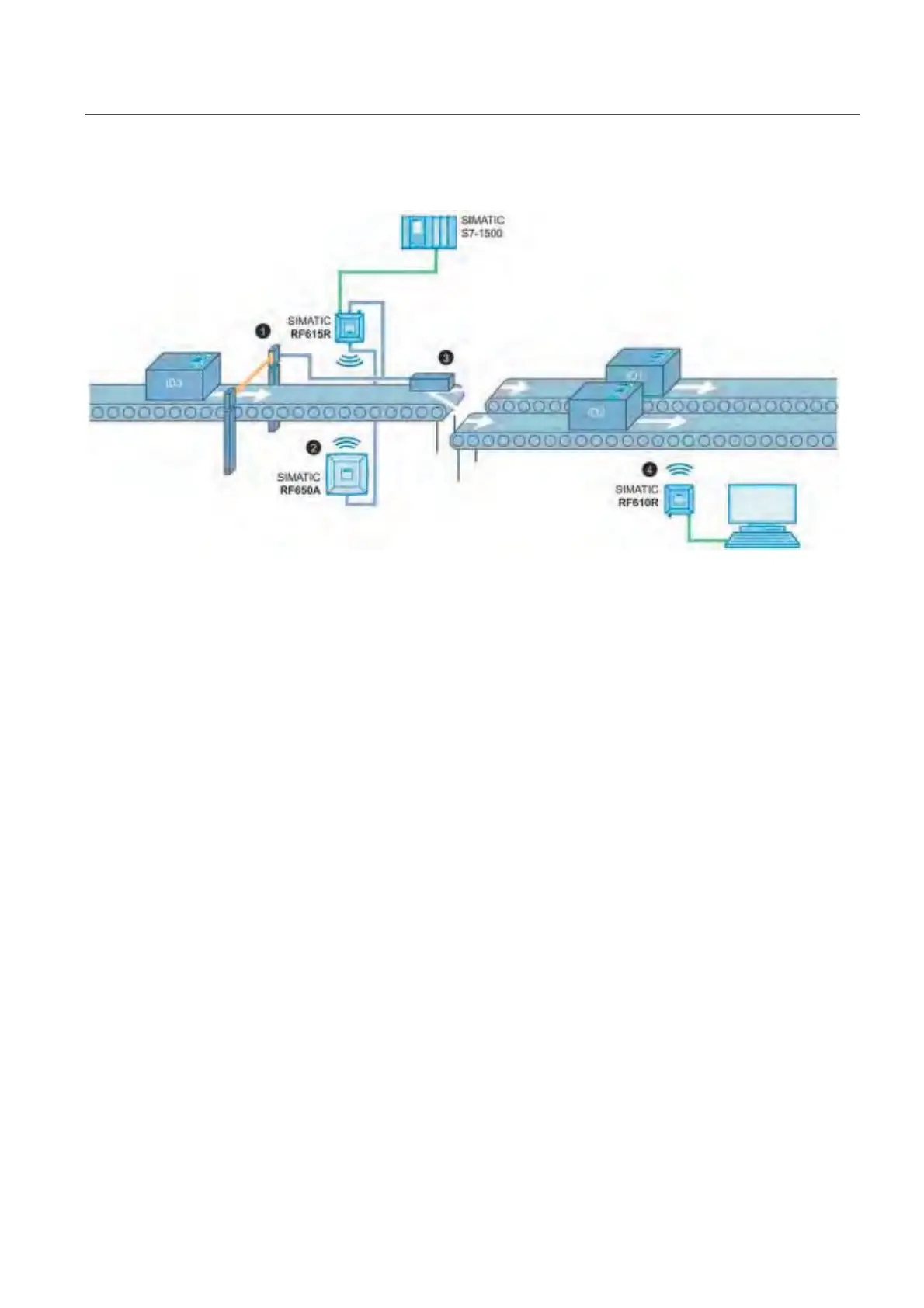

Figure 4-2 Scenario: Intralogistics (separator)
In this example scenario, items must be distributed to the correct storage location in a
transport container via a separator. The transponders attached to the transport containers
are always evenly aligned. The transponders in this scenario are transponders of the type
SIMATIC RF630L. The conveyor belt has a maximum width of approximately 80 cm in this
example. The maximum transport speed of the conveyor belt is 2 m/s.
In this scenario, a SIMATIC RF615R with a SIMATIC RF650A and a SIMATIC RF610R
external antenna are used as the readers. These readers are inexpensive and feature a very
compact design.
When a transport container passes the light barrier
, the reader reads the information from
the transponder on the transport containers and forwards it to the SIMATIC S7 controller.
The SIMATIC S7 controls the separator
ི of the conveyor system depending on the
transponder information.
