9.1 PID_Compact
PID control
Function Manual, 03/2017, A5E35300227-AC
299

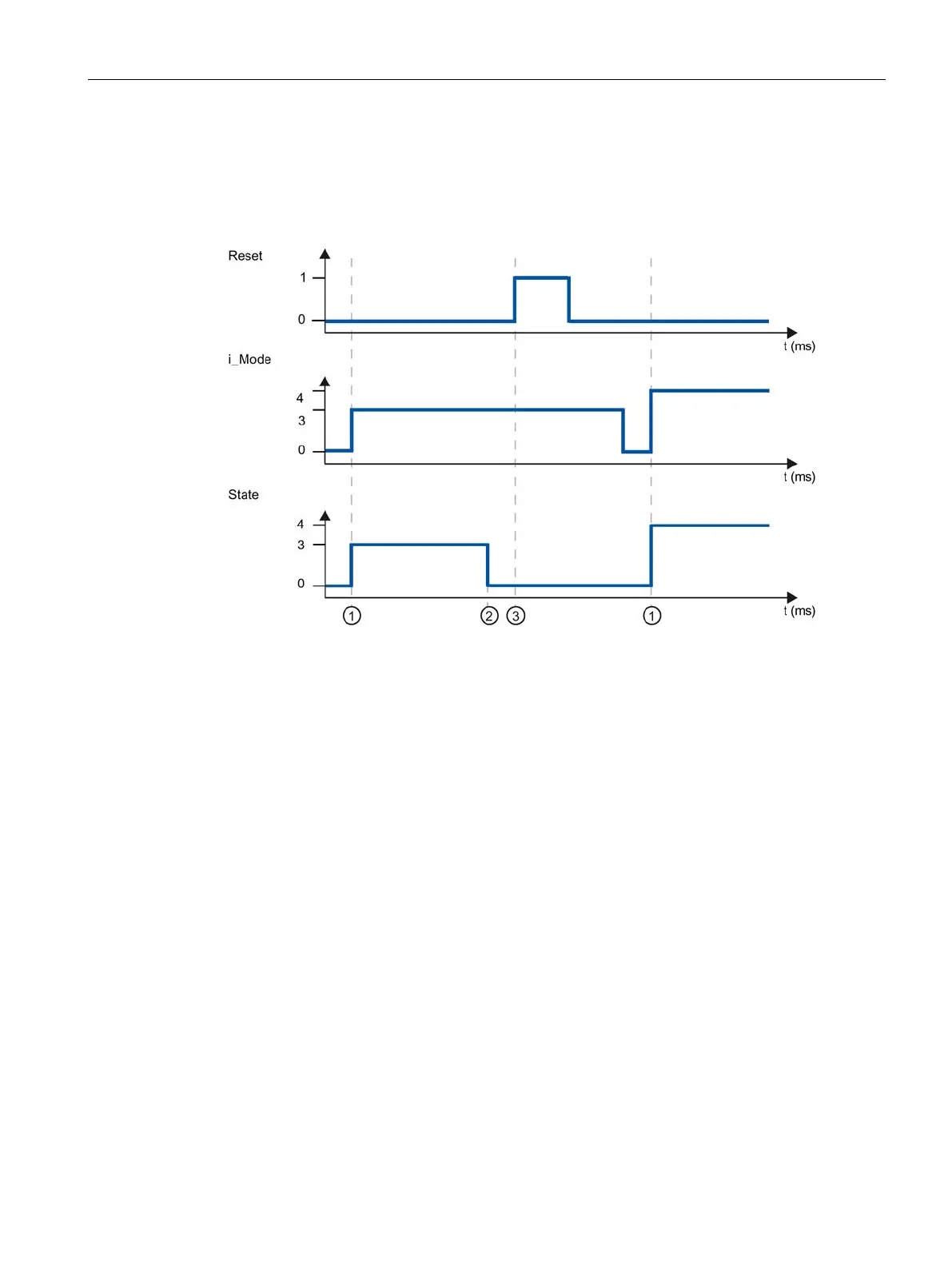

Reset response PID_Compact V.1.0
A rising edge at Reset triggers a change to "Inactive" mode; errors and warnings are reset
and the integral action is deleted. The controller is not reactivated until the next edge at
i_Mode.
①
Activation
②
Error
③
Reset
