Siemens SIMATIC S7-1500T User Manual

Parameters/address space
4.4 Address space
Analog Input Module AI 8xU/R/RTD/TC HF (6ES7531-7PF00-0AB0)
Manual, 09/2016, A5E36647959-AB
39

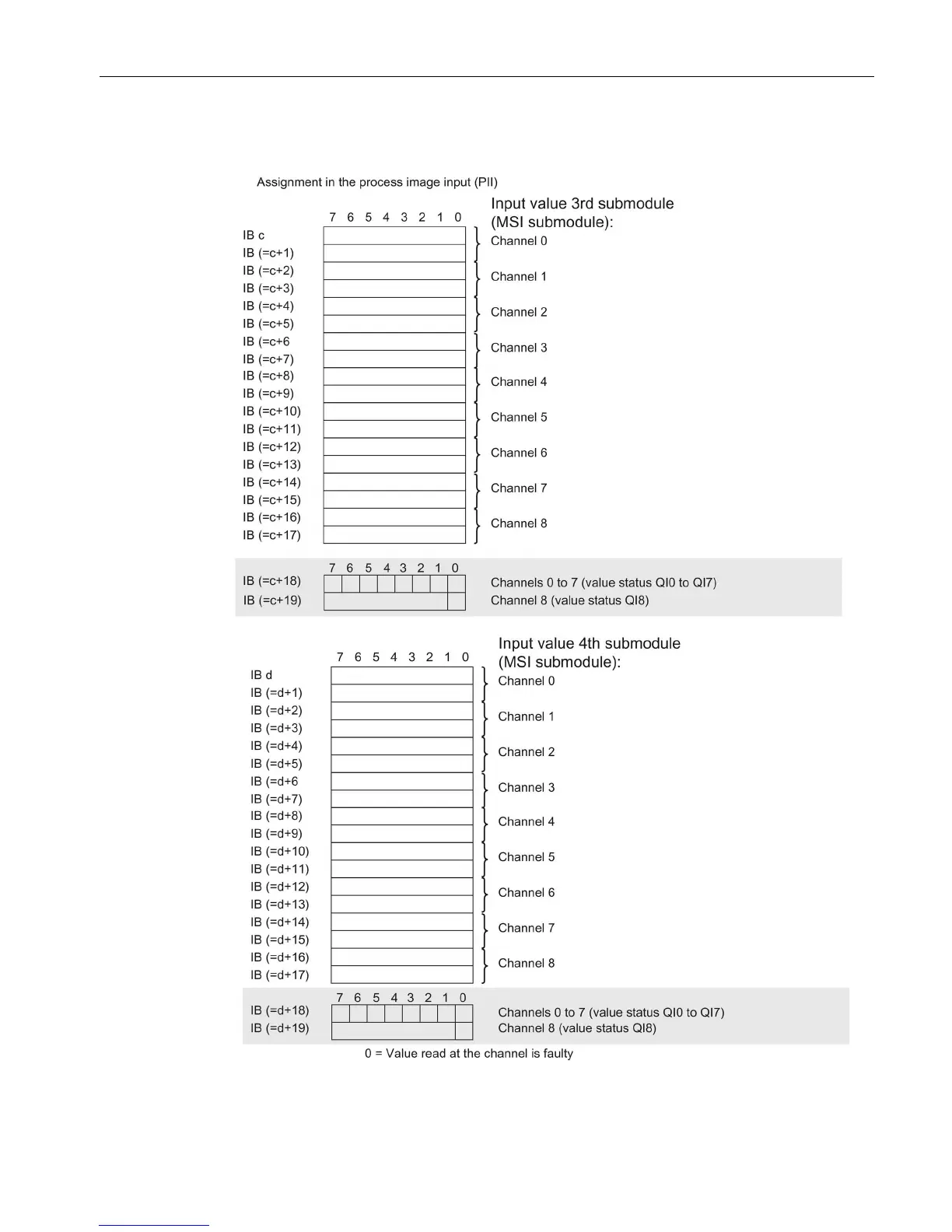

The following figure shows the assignment of the address space with submodules 3 and 4.
Figure 4-7 Address space for configuration as 1 x 9-channel AI 8xU/R/RTD/TC HF MSI with value
status
