Parameter data records
B.3 Structure of data record 235 for scalable measuring range
Analog Input Module AI 8xU/R/RTD/TC HF (6ES7531-7PF00-0AB0)
68 Manual, 09/2016, A5E36647959-AB
B.3
Structure of data record 235 for scalable measuring range
Evaluation in the user program
In the user program, you can evaluate the status and the limits of the scalable measuring
range with data record 235, which may result by reaching underflow/overflow.

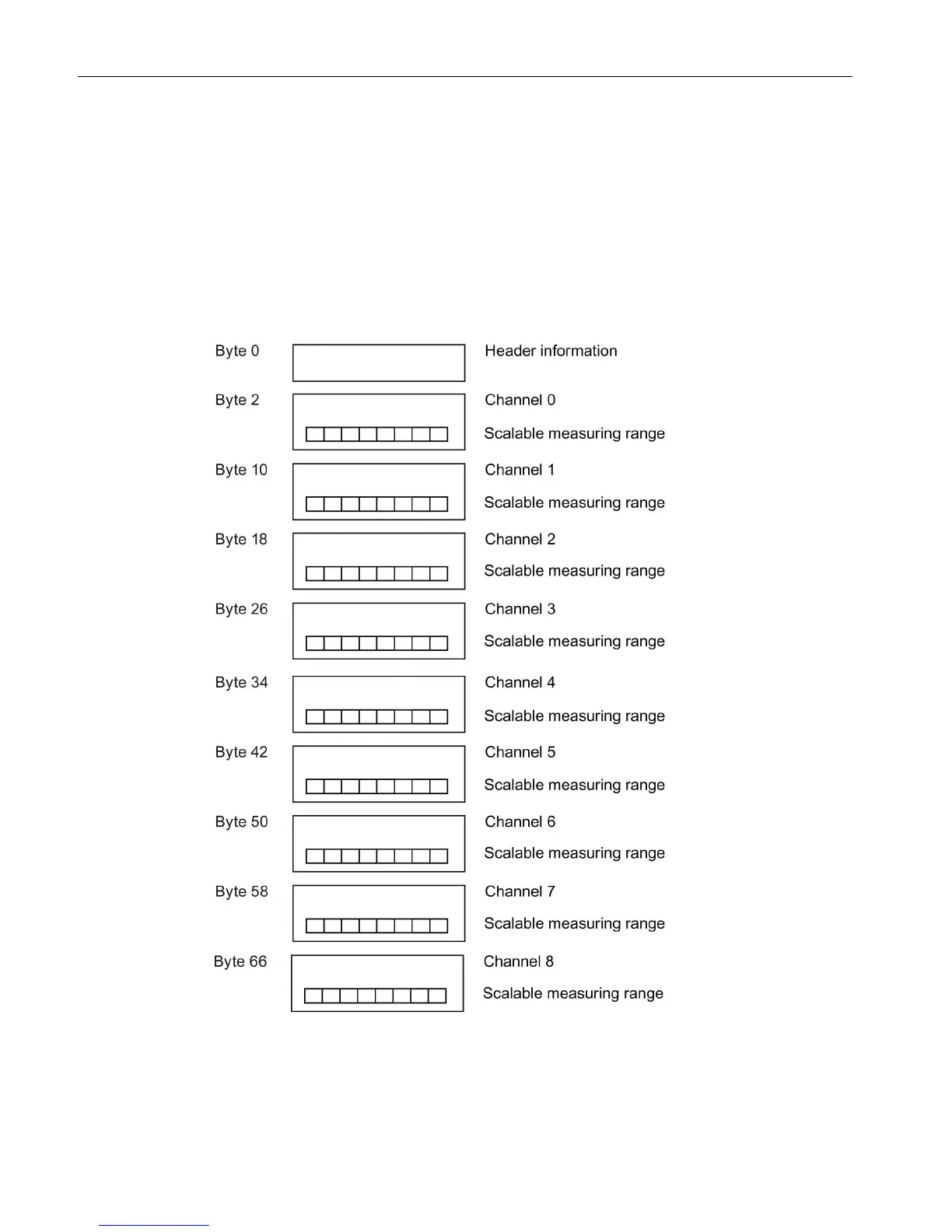

Structure of data record 235
Figure B-5 Structure of data record 235
