Expert Functions
5.8 Triggering of a brake
Connection of the SINAMICS S120 to the Technology CPU
Product Information, 09/2011, A5E00480378-04
179

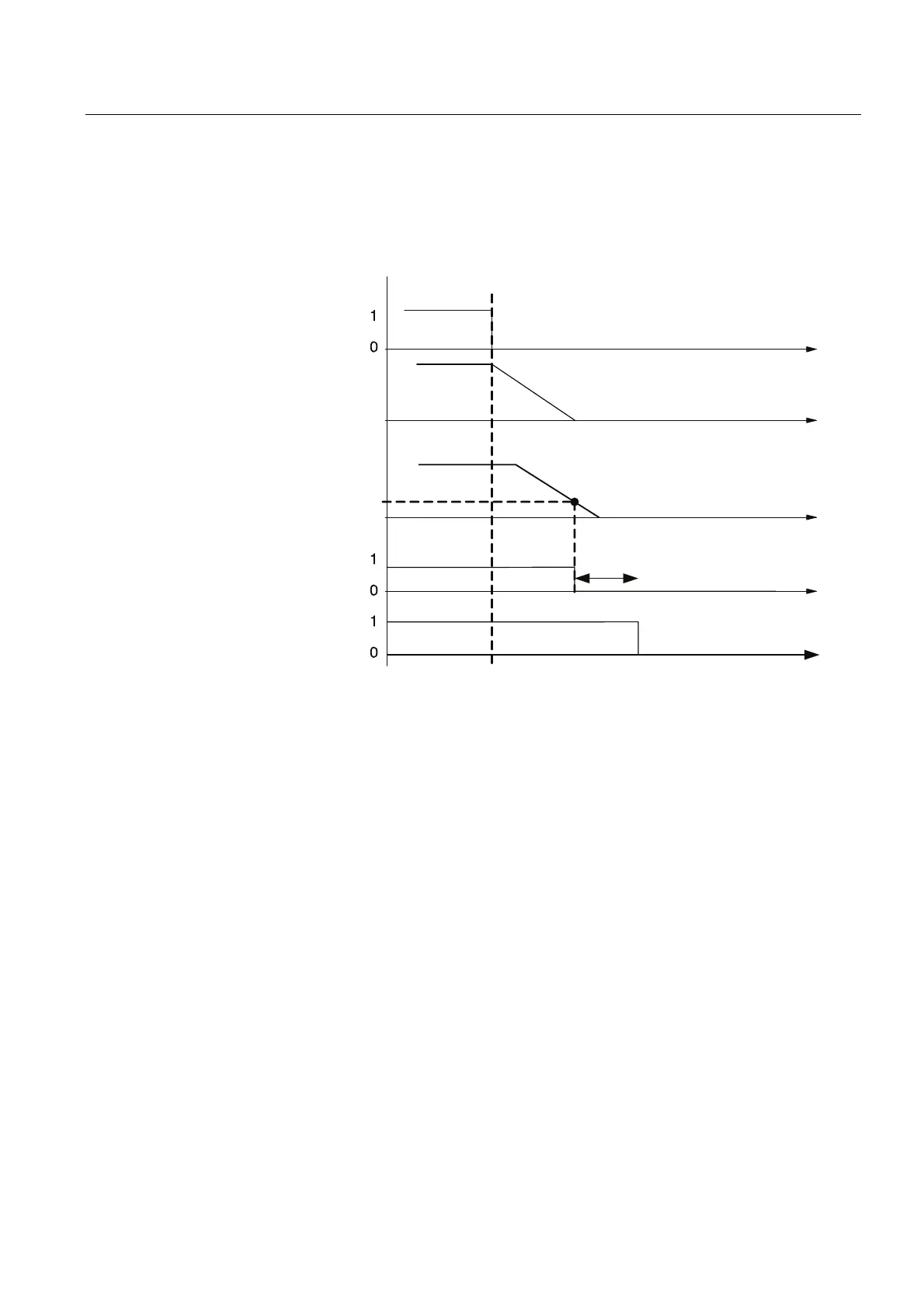

Ramp stop (OFF1):
Braking takes place at the drive's ramp function encoder ramp. When the speed threshold is
reached, the holding brake is enabled which disables the pulse enable once the brake
closing time has elapsed.
2))
6SHHGVHWSRLQW
$
FWXDOVSHHG
n
+ROGLQJEUDNH
6ZLWFKLQJ2Q,QKLELWHG
%UDNHFORVLQJWLPH
+ROGLQJEUDNH
RSHQ
t
t
t
t
t
